Hello friends, and welcome to plcjournal.com! Today, we’ll guide you through the process of downloading and installing the XP Builder V3.5 LS HMI software for free from our website. But before we begin the installation, let’s review some key information about this software.
XP Builder V3.5 is a powerful, user-friendly HMI software from LS Industrial Systems intended for the creation, configuration, and monitoring of HMIs of different automation systems. The functions with which the XP Builder is equipped will make the work of designing a control panel much easier; hence, it is an important tool that takes on great relevance within the field of industrial automation for engineers and developers.
Key Features of XP Builder V3.5 LS HMI Software:
- Intuitive Interface: XP Builder_V3.5 sports an easy and clean interface that allows users to easily create and develop HMI screens without much hassle. Drag-and-drop features reduce the intricacy and time required in designing.
- Varied Design Tools: There are various design tools and prebuilt templates available within the software that help in dynamically presenting visual representations of control processes. These will help in building interactive, informative HMI screens.
- Advanced Communication Capabilities: The listing of communication protocols that XP Builder V3.5 can handle is very long, making this tool capable of talking with a huge number of different PLCs and automation peripheral devices.
- Real-time Monitoring and Control: It facilitates the user in the real-time monitoring and control of the data, hence making effective operation and timely remedial actions possible.
- Security Features: It contains strong security settings that effectively guard against unauthorized access and ensure the safety and integrity of your HMI configurations.
- Multilingual Support: XP Builder_V3.5 is multilingual; therefore, it opens the doors of access to users around the world.
Applications of XP Builder_V3.5 LS HMI Software
The design of HMIs in many different industrial applications, including the following, would be appropriately carried out with XP Builder_V3.5:
- Manufacturing: By applying XP Builder, end-users are able to come up with personalized HMIs while monitoring and operating manufacturing processes.
- Energy Management: The industries use software in managing and keeping a record of energy consumption.
- Automation of Building: Design user-friendly interfaces for the control of HVAC, lighting, amongst others within the building.
Supported Models for this Software
XP Builder V3.5 is a versatile HMI software compatible with a wide range of LS Industrial Systems’ HMI models. A list of all the supported models may be found below:
Unsupported Models:
- XP Series
Supported Models:
iXP Series:
- iXP50-TTA
- iXP70-TTA
- iXP80-TTA
- iXP90-TTA
eXP Series:
- eXP20-TTA
- eXP30-TTA
- eXP30-TTE
- eXP40-TTA
- eXP40-TTE
- eXP60-TTA
eXP2 Series:
- eXP2-0400
- eXP2-0500
- eXP2-0502
- eXP2-0700
- eXP2-0701
- eXP2-0702
- eXP2-1000
- eXP2-1001
iXP2 Series:
- iXP2-0800
- iXP2-1000
- iXP2-1200
- iXP2-1500
- iXP2H-0702D
- iXP2H-0704D
IPC Series (wXP):
- PC/AT varieties with various resolutions
How to Download XP Builder V3.5 LS HMI Software
First, try to download it from LS official website.
- Visit the Official LS Website: Start by going to the LS official website.
- Search for this software: Use the search bar to find this software.
- Select the Download Option: Once you navigate to the product page, look for the download section.
- Fill Out Necessary Information: You may be required to create an account or provide information such as email and company details.
- Accept the Terms and Conditions: Make sure to read through and accept the licensing agreements or terms before downloading.
- Download the Software: Click the download link and save the file to your computer.
- Install the Application: Follow the installation instructions provided to complete the setup.
If you fail to download the software in any way, then download the software by clicking on the download button below this post.
Step-by-Step Guide to Installing XP Builder V3.5 LS HMI Software
Follow these simple steps to download and install XP Builder V3.5 LS HMI software:
1. Download the Software:
- Visit the Google Drive link provided on our website and download the software package.

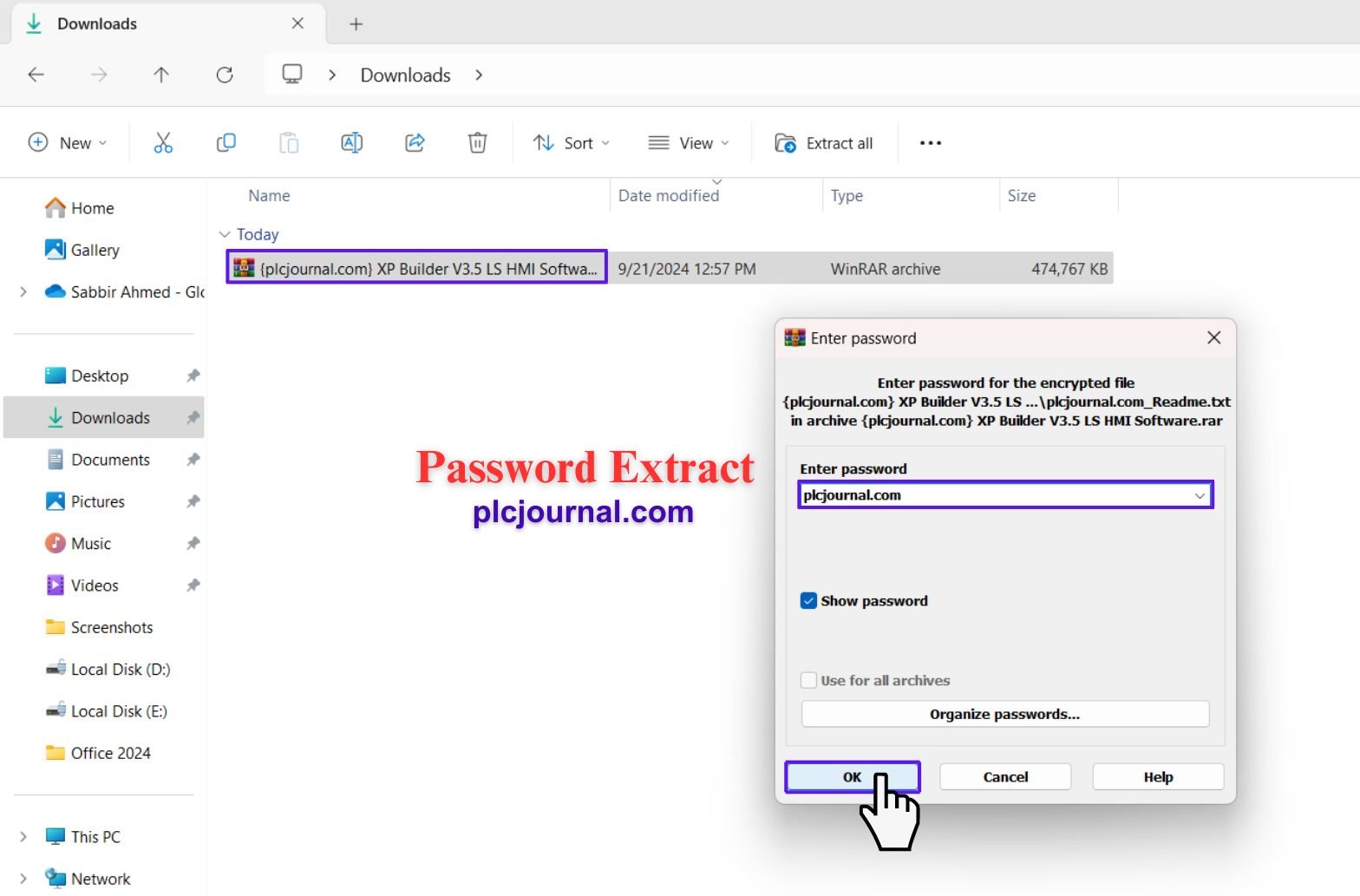

- Use the password “plcjournal.com” to unlock the downloaded file.

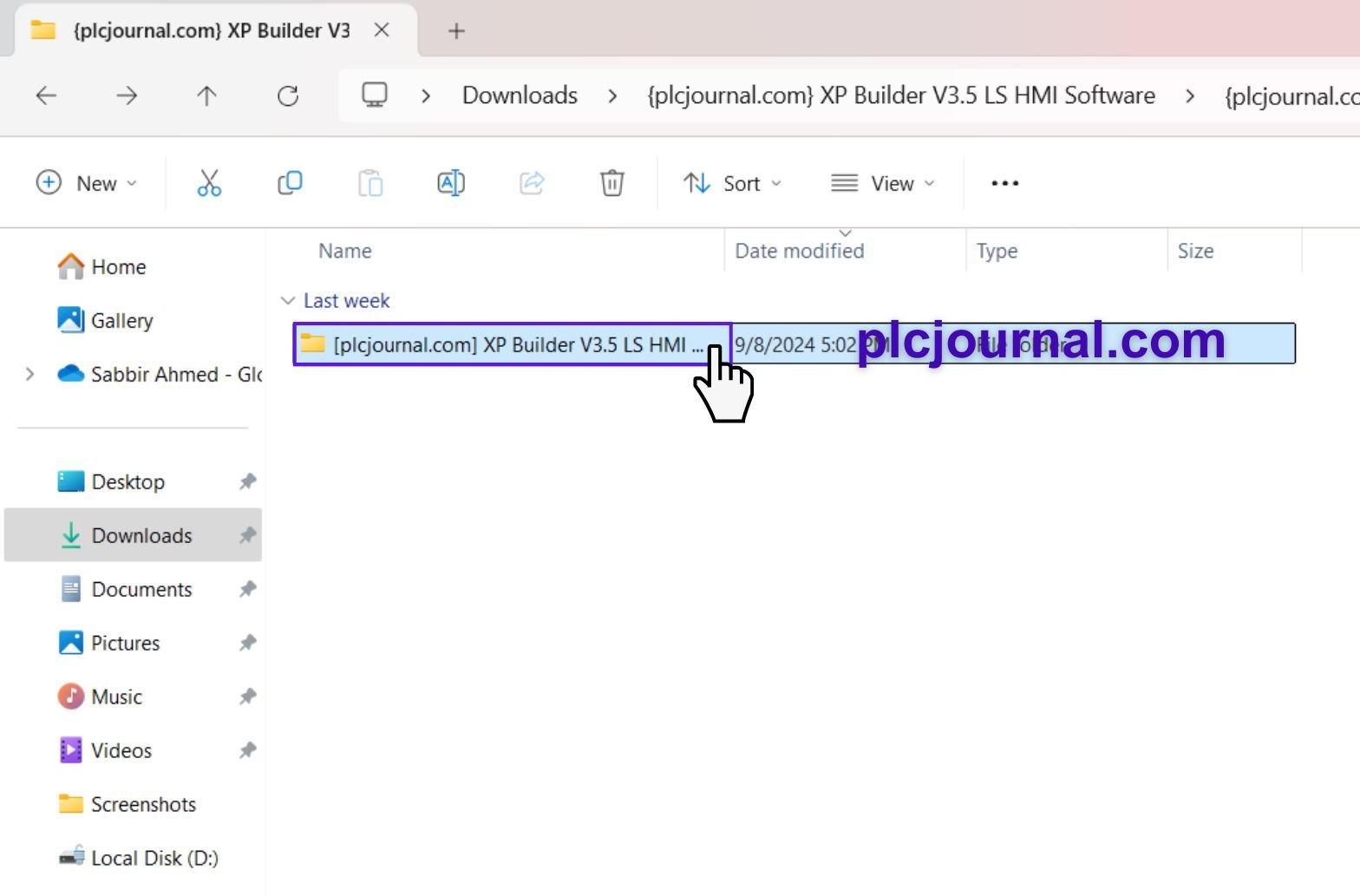

2. Access the Installation Folder:
- Locate the downloaded folder named “XP Builder V3.5 LS HMI Software.”
- Double-click to open the folder and find the installation file.

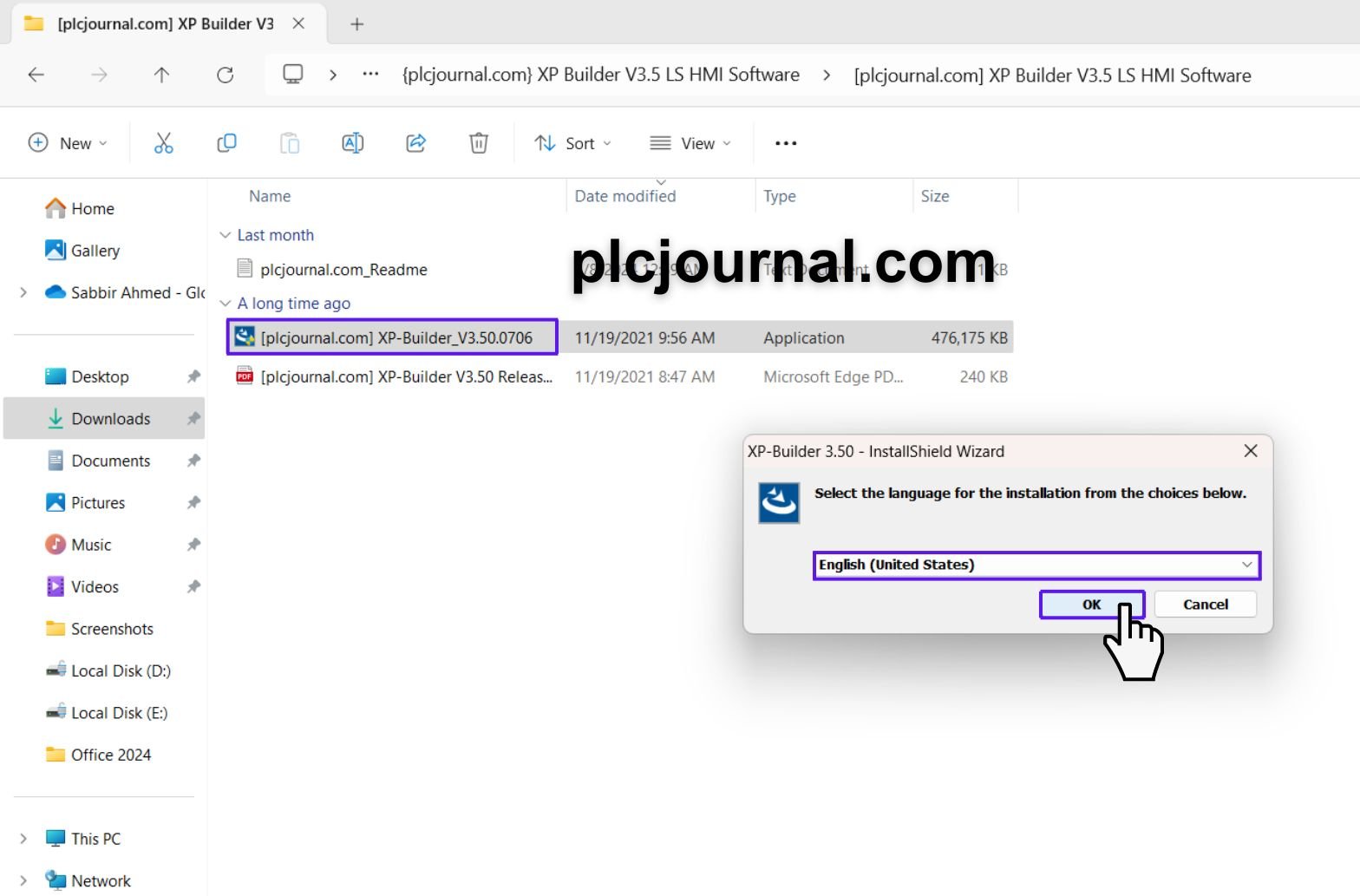

3. Start the Installation:
- Double-click the setup file named “XP-Builder_V3.50.0706” to begin the installation process.
- A window will appear asking you to select your preferred language. Choose your language and click “OK.”

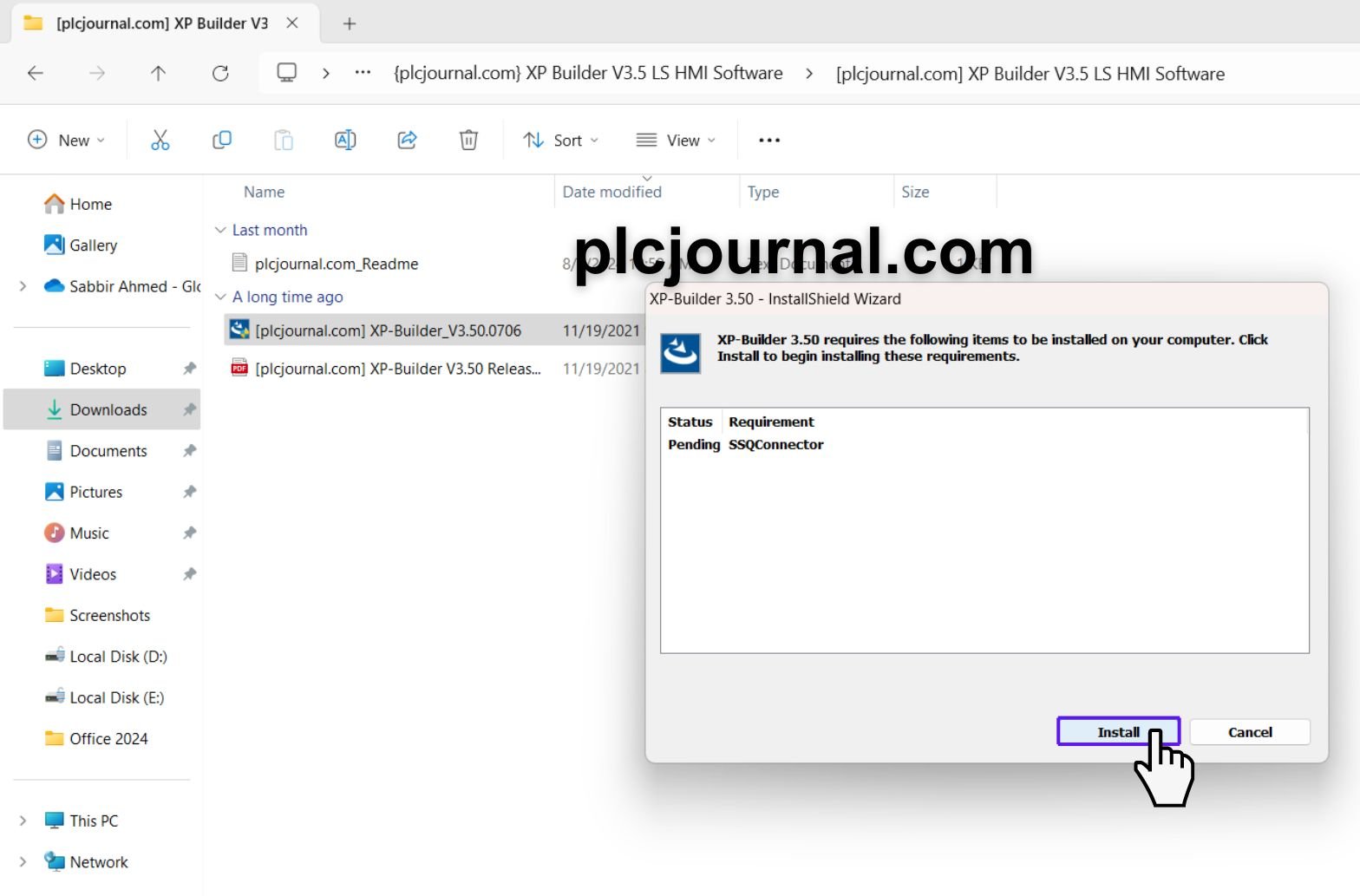

4. Install InstallShield Wizard:
- If prompted, install the “InstallShield Wizard” by clicking “Install.”

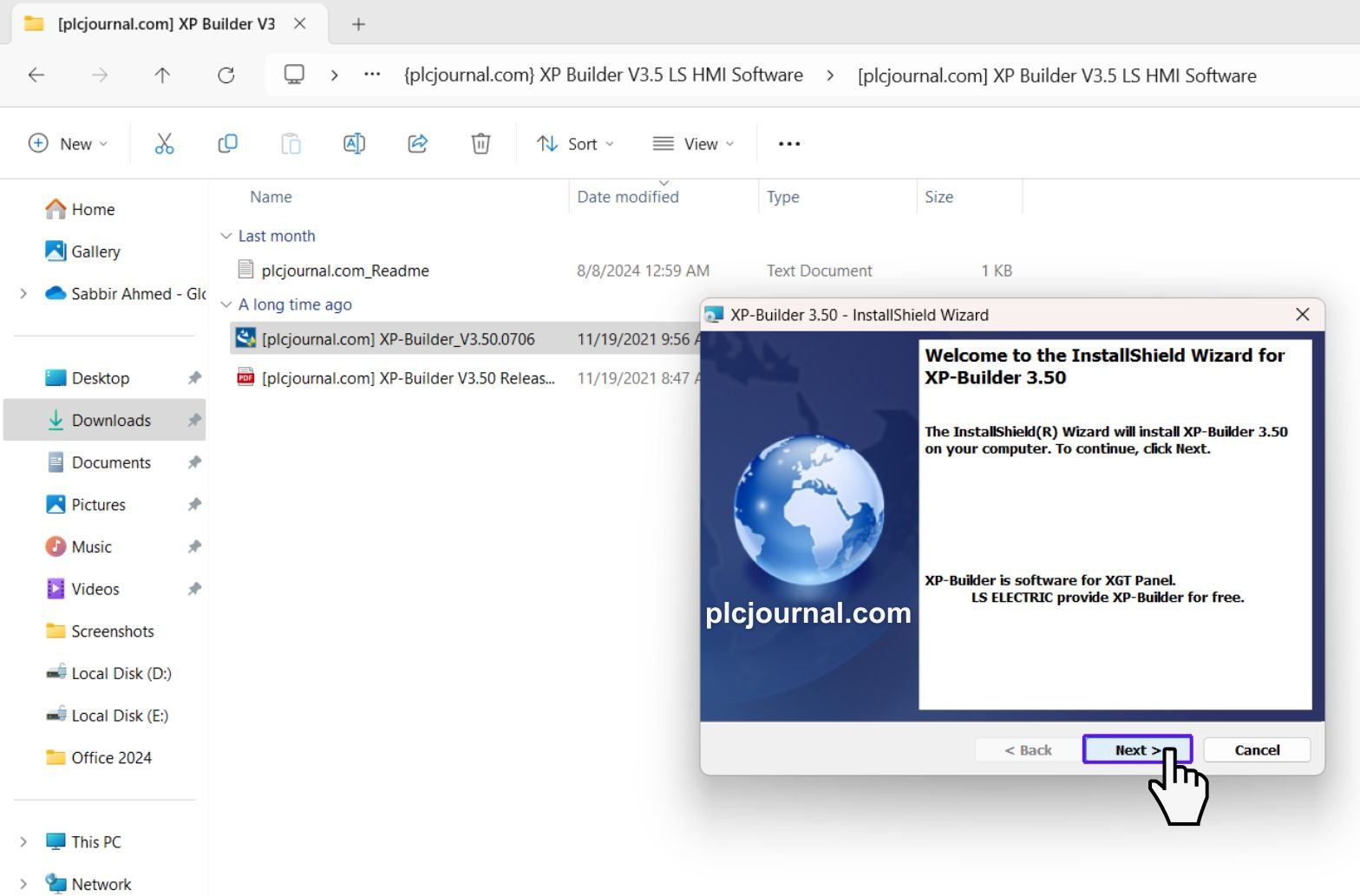

5. Begin XP Builder Installation:
- The “XP-Builder 3.50” installation wizard will start. Click “Next” to continue.

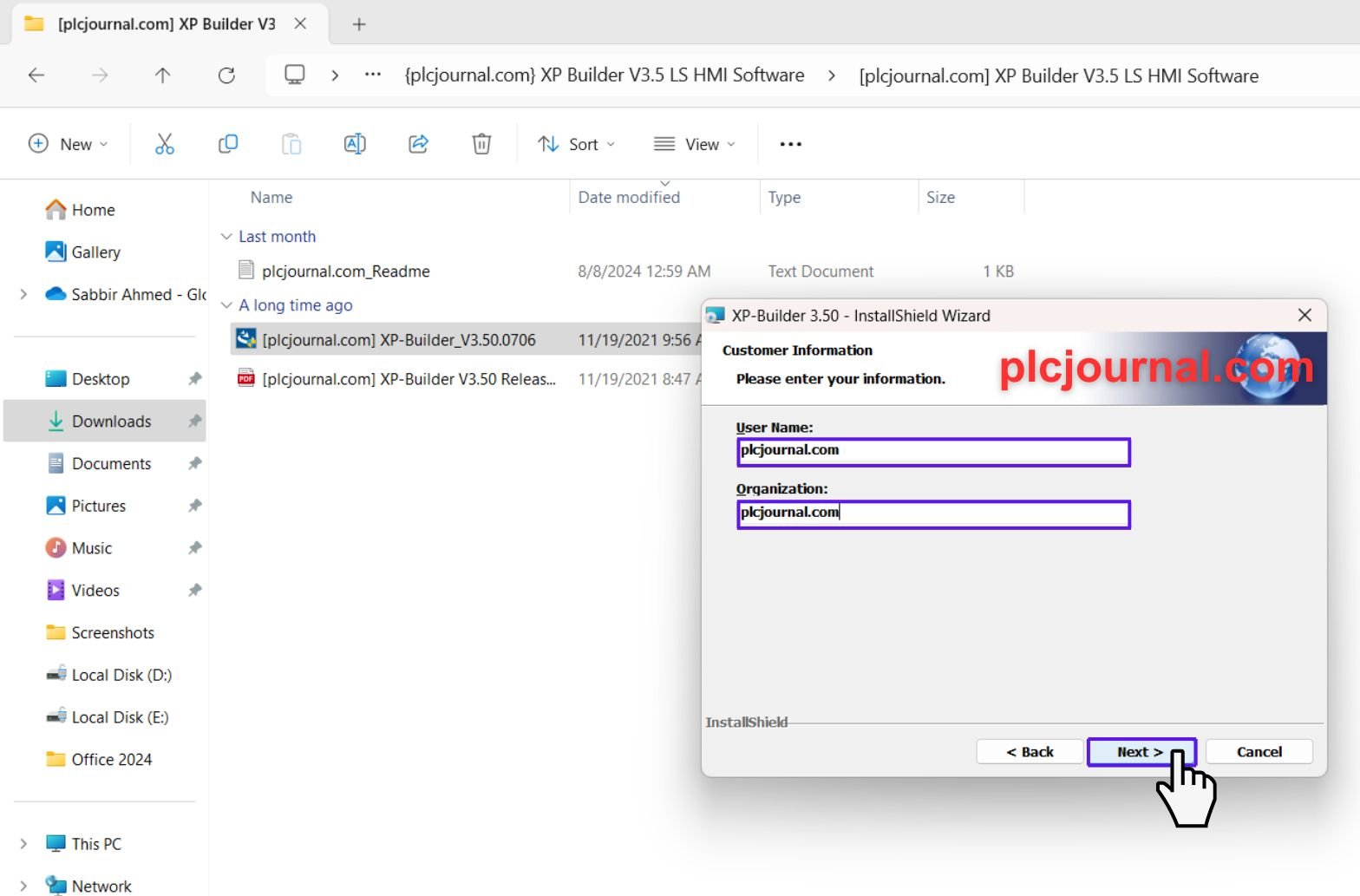

6. Enter User Information:
- Enter your User Name and Organization in the required fields, then click “Next.”

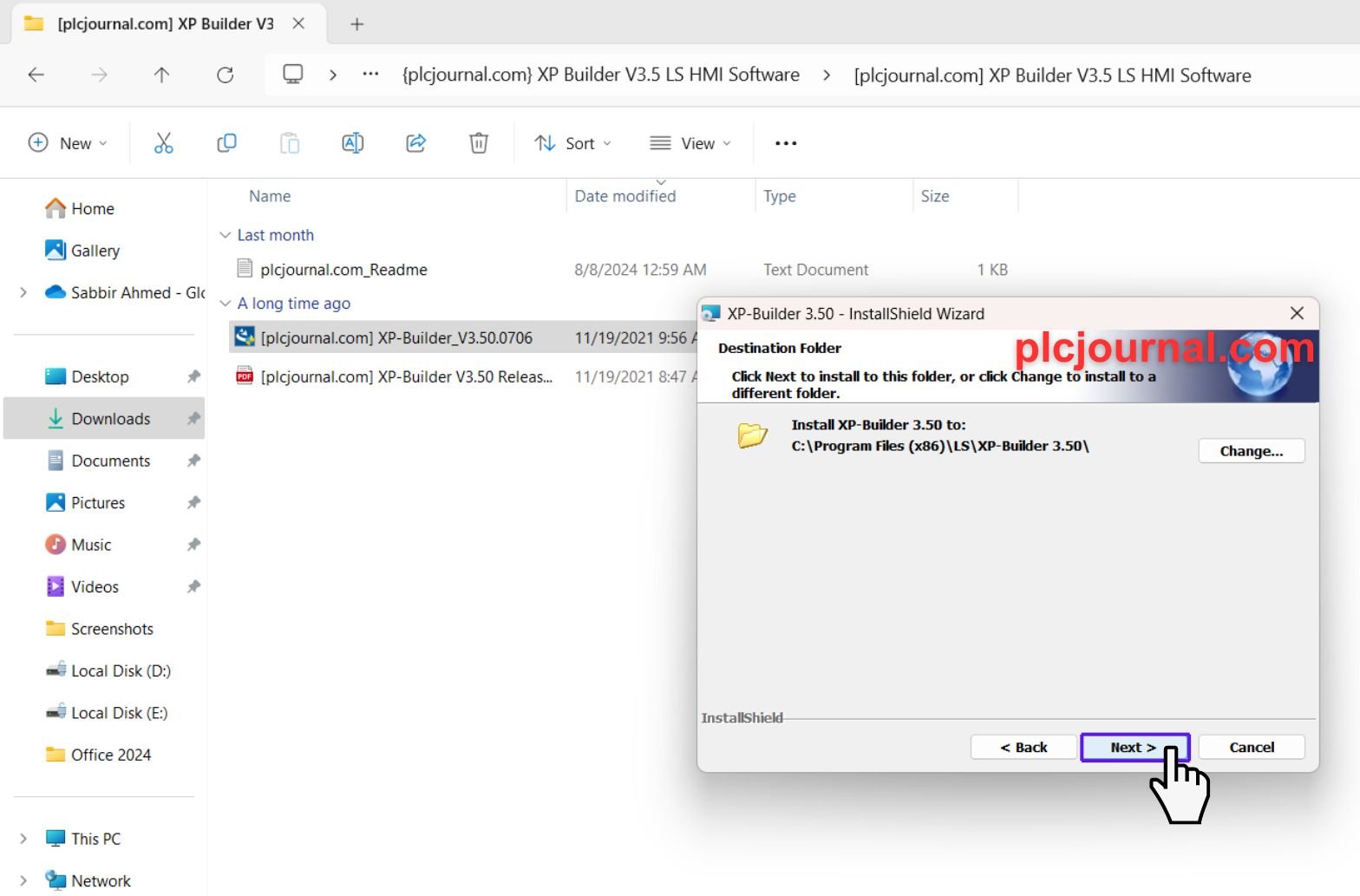

7. Choose Installation Folder:
- Select your desired destination folder for the software installation. Click “Next” to proceed.

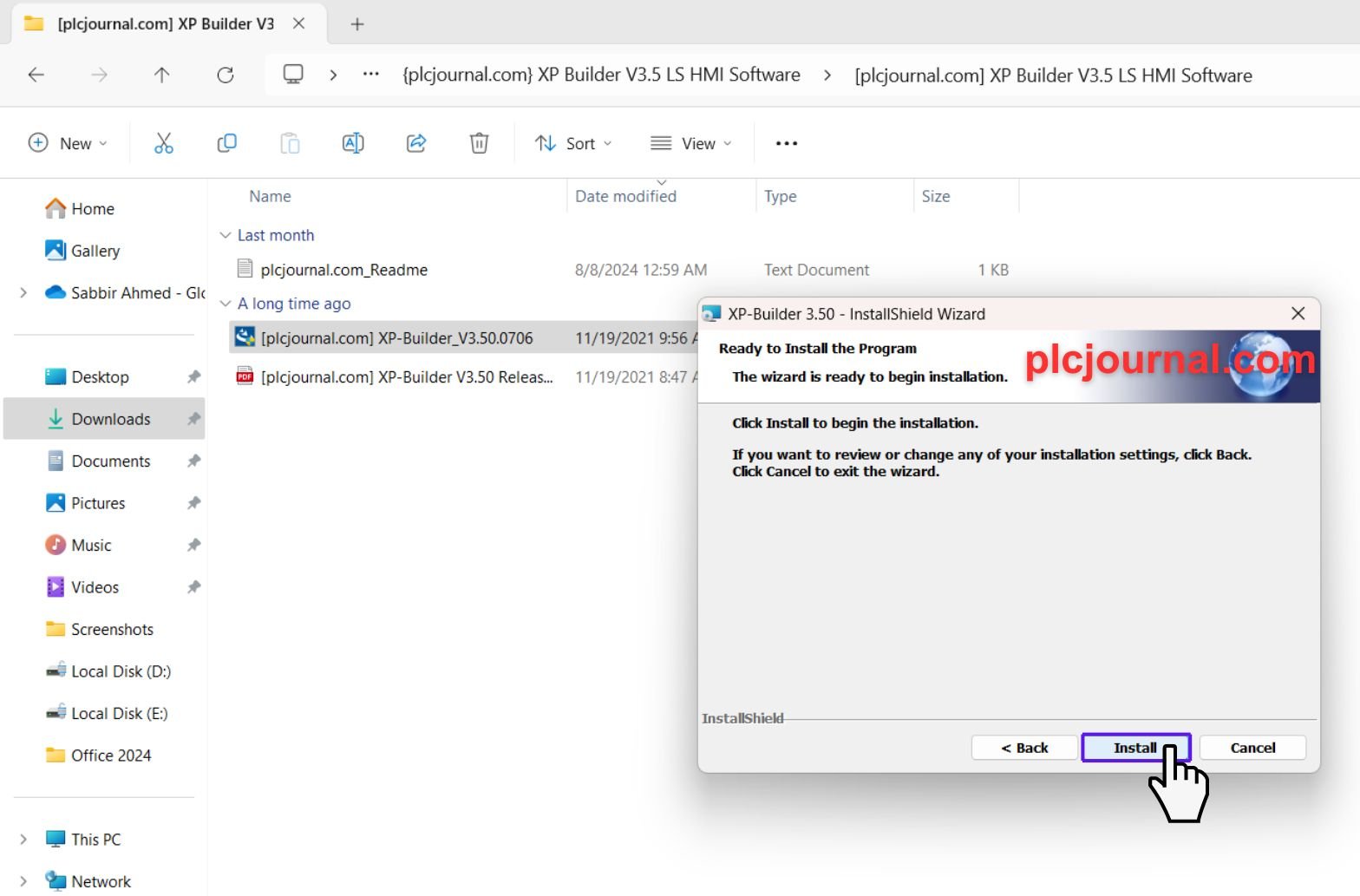

8. Ready to Install:
- Confirm your settings and click “Install” to start installing XP Builder V3.5.

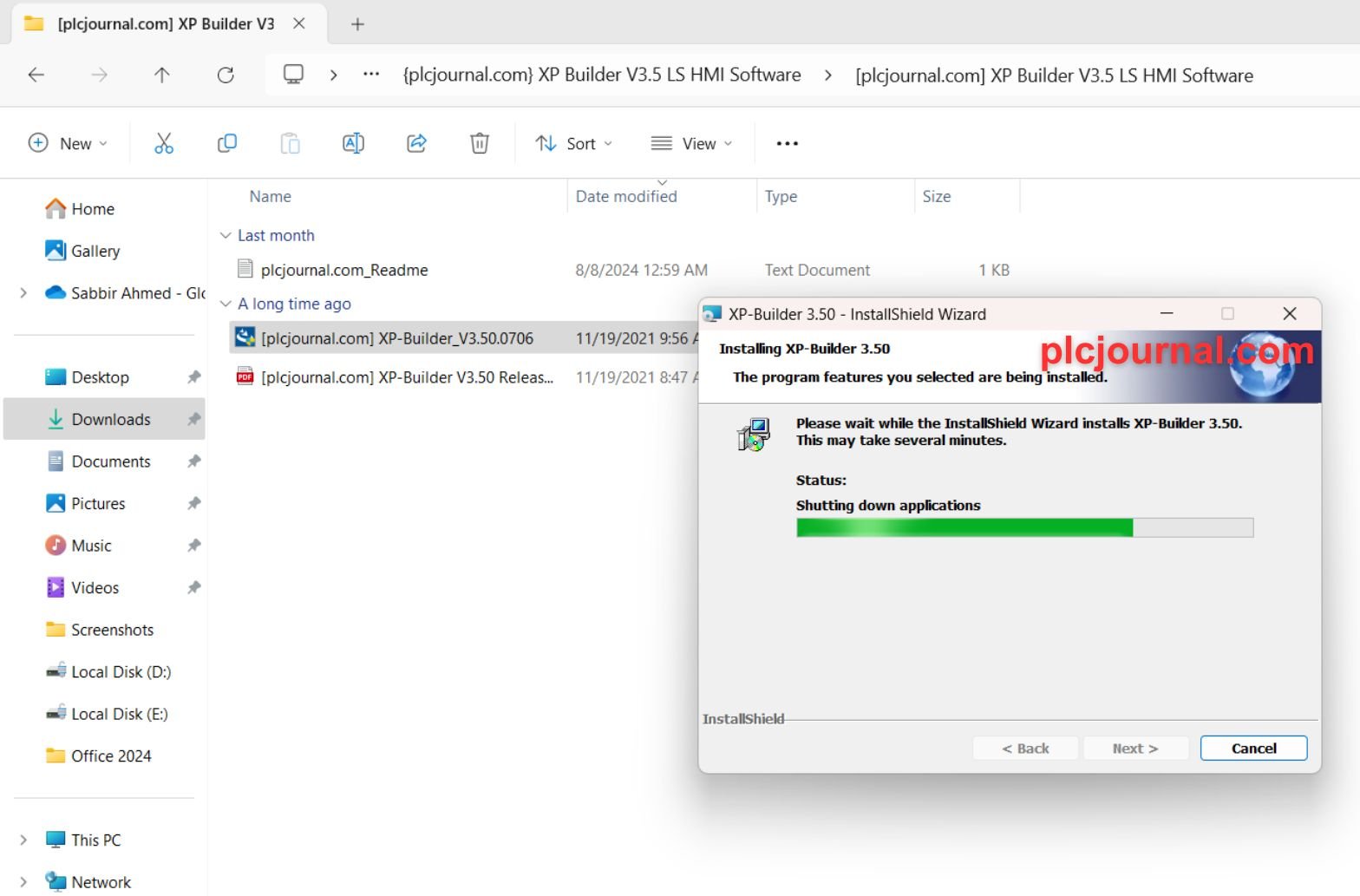

9. Installation in Progress:
- You will see a window indicating the progress of the installation.

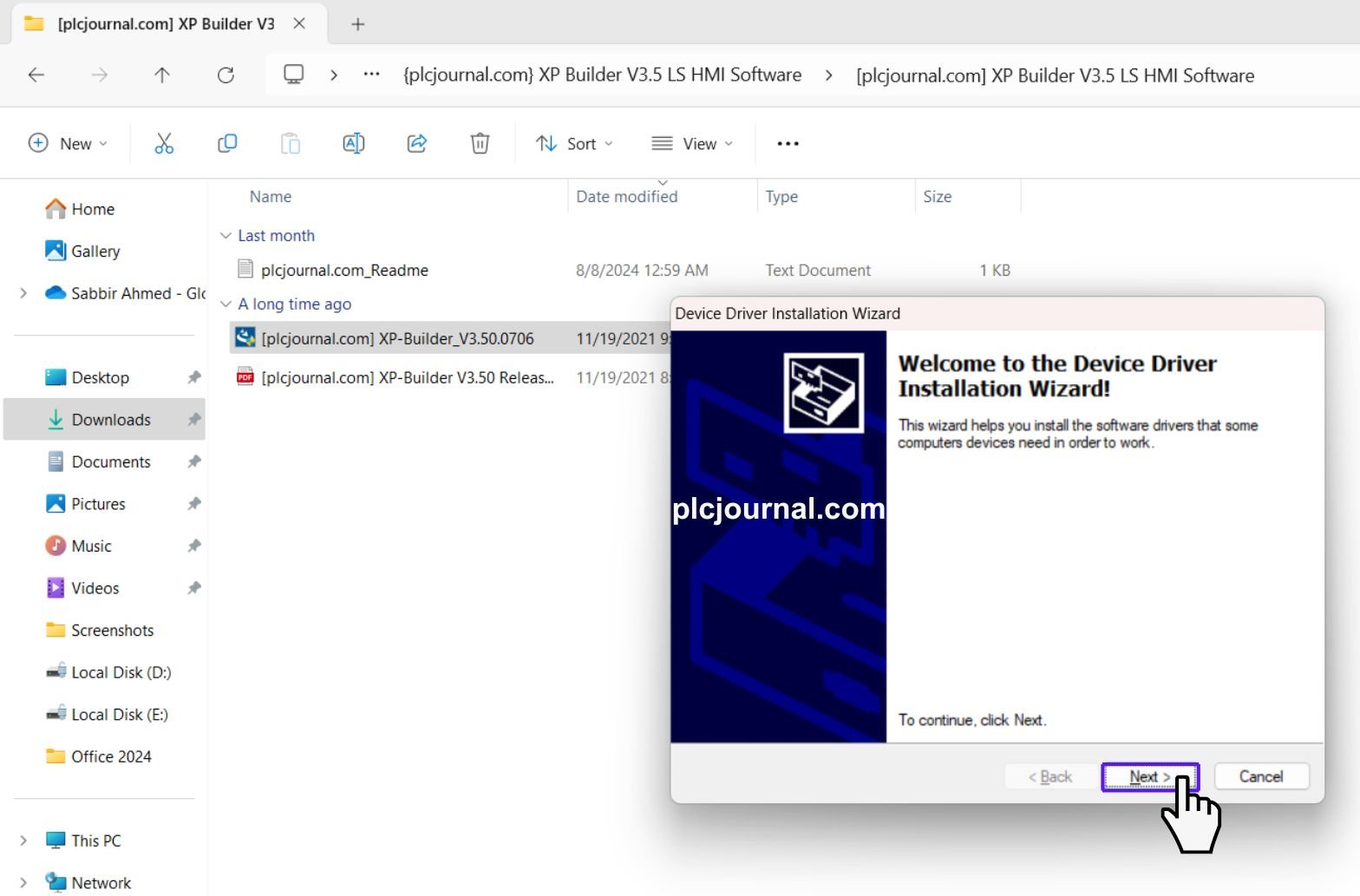

10. Install Device Driver Wizard:
- During installation, you may be prompted to install the “Device Driver Installation Wizard.”
- To continue with the driver installation, click “Next.”

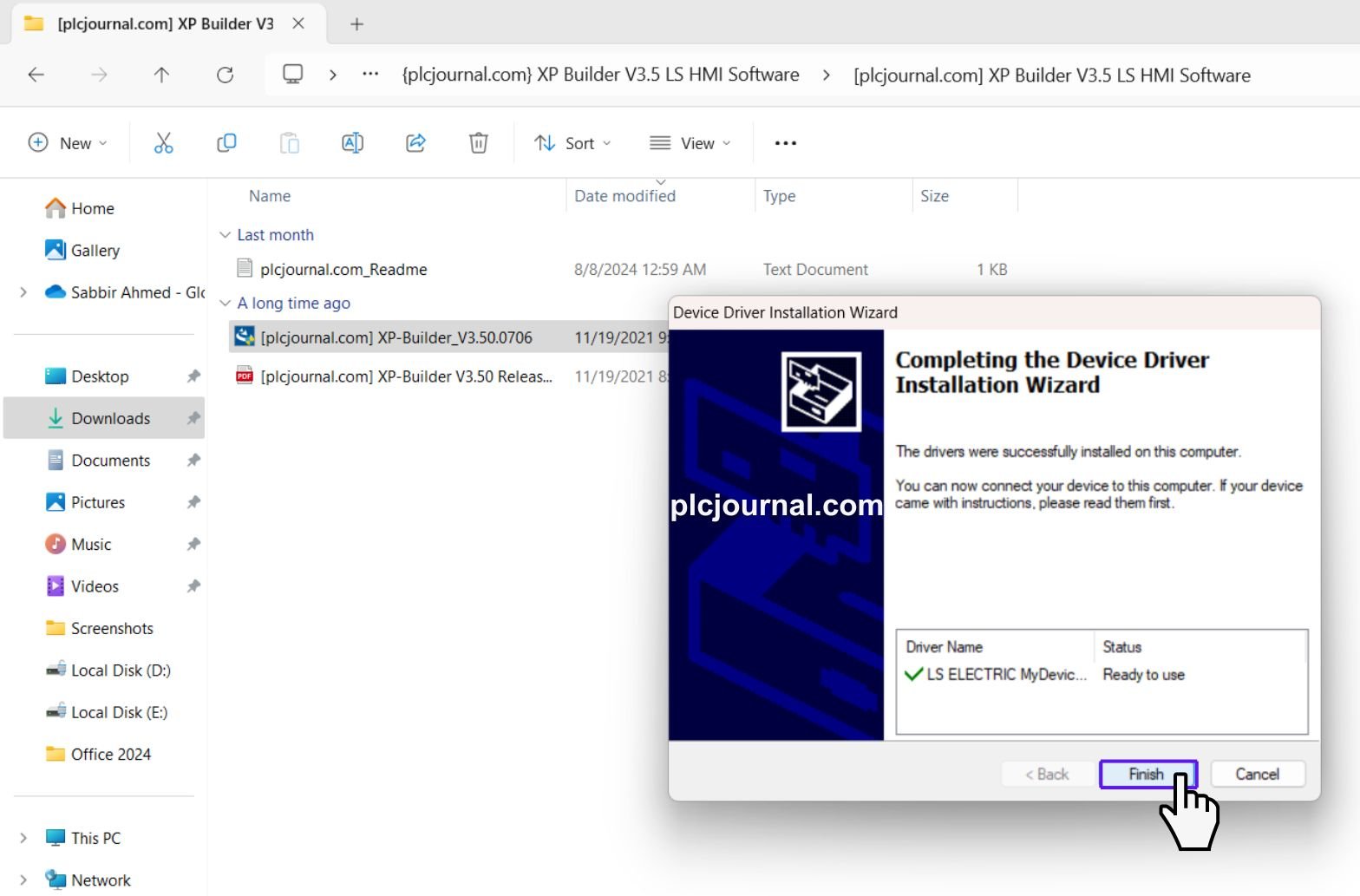

11. Complete Driver Installation:
- Once the device driver installation is complete, click “Finish” to close the wizard.

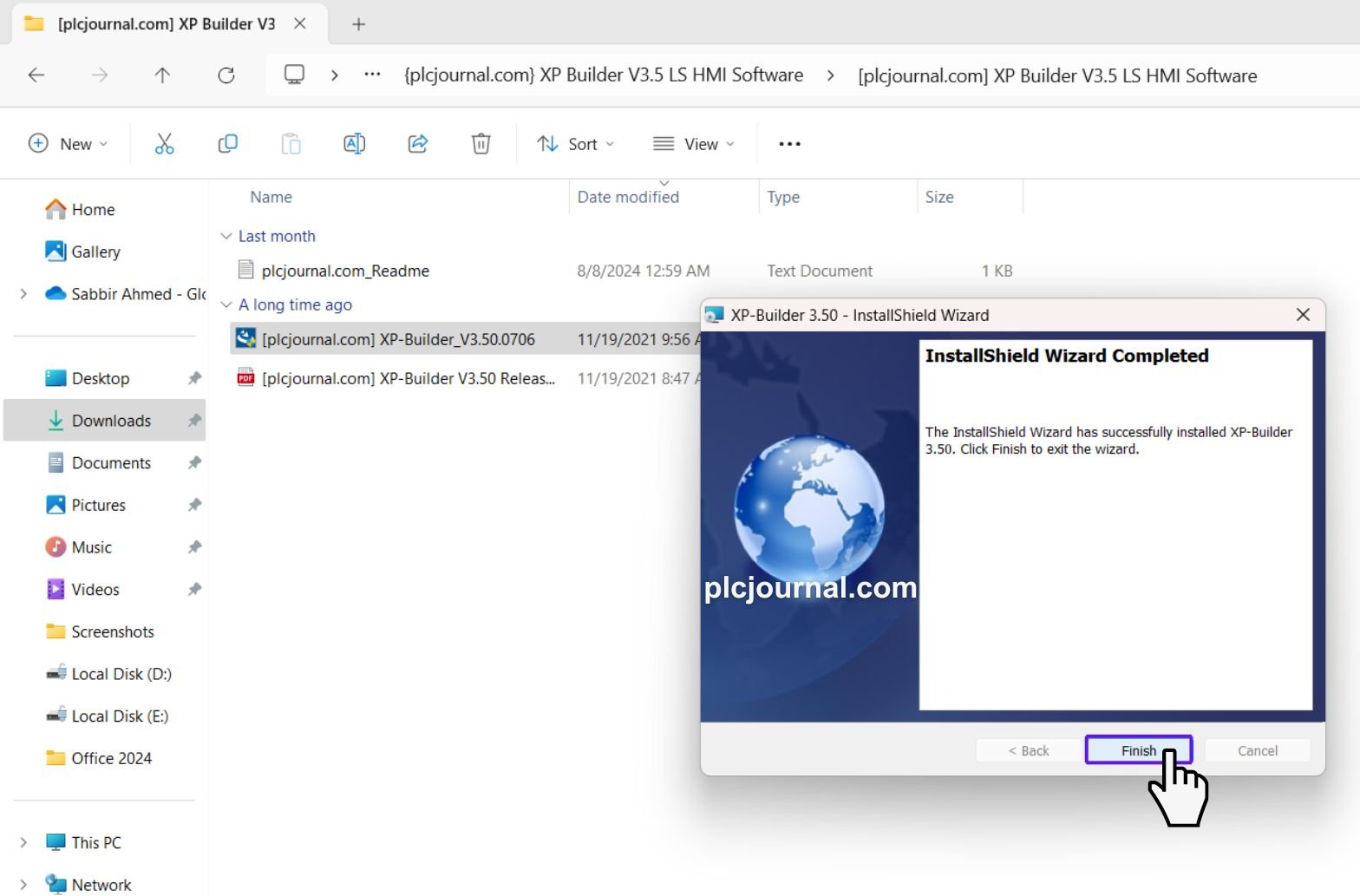

12. Finish XP Builder Installation:
- Click “Finish” to end the installation procedure after “XP-Builder 3.50” has finished installing.

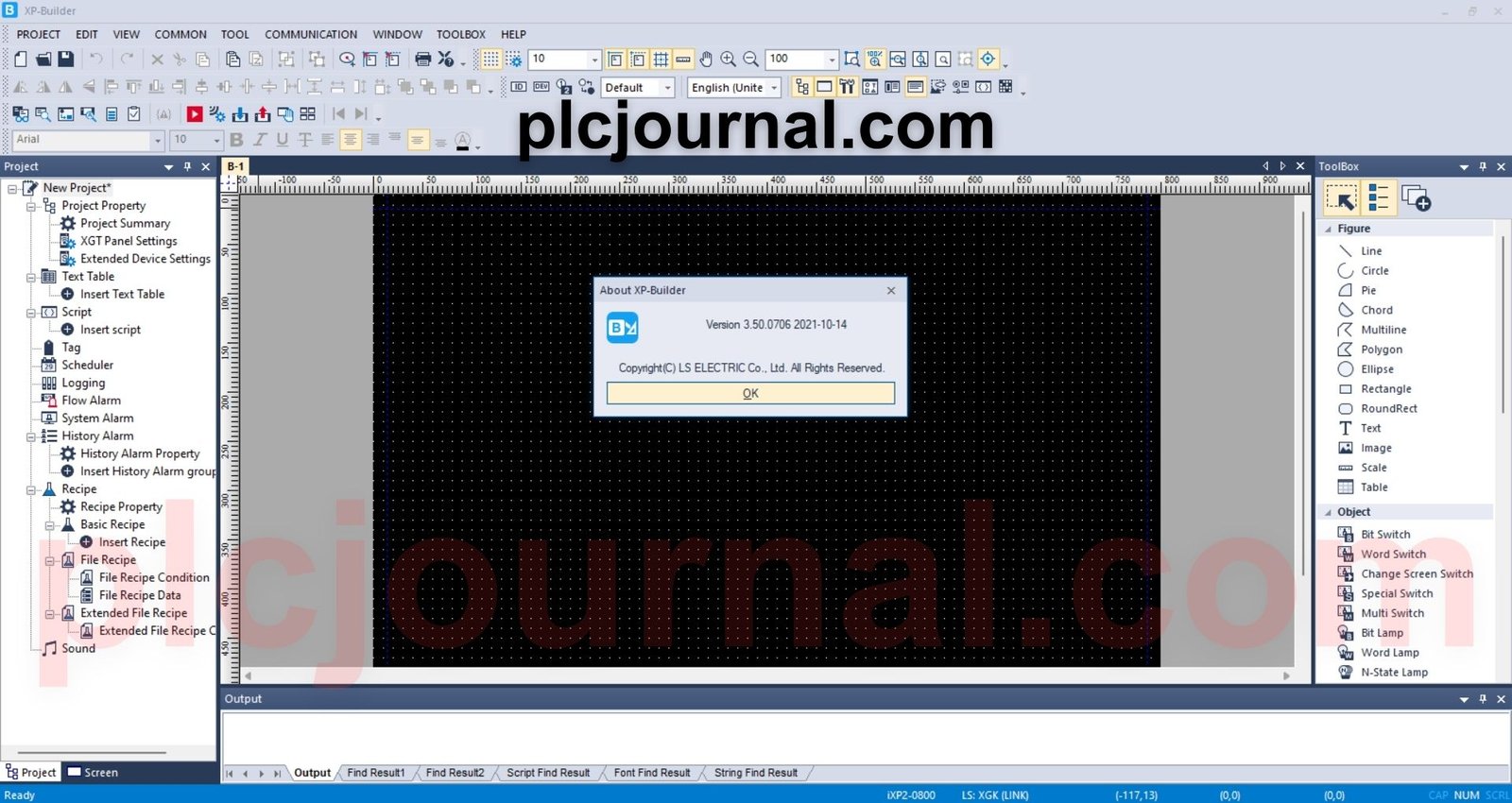

13. Launch XP Builder V3.5:
- Your XP Builder V3.5 LS HMI software is now successfully installed and ready to use.
Download Info:
Free Download XP Builder V3.5 LS HMI Software (Google Drive)
Extraction Password: plcjournal.com
Enjoy working with the free download of XP Builder V3.5 LS HMI Software! If you find this software useful, just leave a comment below and share with other people. Your one share can make many people benefit from that software.
If anyone faces any problem downloading or has other questions, please ask questions at plcjournalweb@gmail.com.
Thank you for taking the time to read this article, and we hope you have fun working with the software!
