Hello friends, and welcome to plcjournal.com! Today, we are excited to guide you step by step through the process of downloading and then installing the XP Builder V2.20 LS HMI Software completely free from our website. In this guide, you will learn each step clearly so that the entire installation goes smoothly from start to finish. Before we begin the installation, let’s cover some important details about this software.
What is XP Builder V2.20 LS HMI Software?
To begin with, enhancing the efficiency of LS Electric systems, XP Builder V2.20 is a dedicated platform specifically suitable for authoring and customizing HMIs. Moreover, this platform enables user interface development to happen with ease by offering graphical displays for effective communication among operators working within factories with heavy machinery. Furthermore, developing custom HMI projects that suit the requirements for your automation processes has been simplified thanks to the use of this friendly-looking application as well as its all-inclusive toolset.
Key Features of XP Builder V2.20 LS:
- Intuitive Interface: The software offers an intuitive interface that makes it easy to design and configure HMI screens. In particular, the built-in drag-and-drop functionality provides a simple way to add and arrange buttons, gauges, text fields, as well as other graphical elements on the screen. As a result, users can quickly create layouts with minimal effort, thereby streamlining the overall design process.
- Comprehensive Library: XP Builder V2.20 features a comprehensive library of pre-built symbols and graphics. With this in mind, users can effortlessly enhance their HMI layouts with visually appealing elements. Moreover, this exhaustive library allows them to create more engaging designs without the need for any custom design work, thereby saving both time and effort.
- Advanced Configuration Options: Advanced functions include data logging, alarm management, and screen navigation. The flexibility of your HMI in handling complicated tasks is thus guaranteed.
- Real-Time Monitoring: XP Builder V2.20 indeed supports real-time monitoring and control, which means that operators can continuously view and manage process variables directly from the HMI interface. As a result, they can respond to changes promptly and therefore maintain optimal system performance while ensuring smooth operations.
- Multi-Language Support: It allows for different languages, hence making it suitable for applications across the globe and to a diverse working force.
Supported Models for this software
XP Builder Version 2.20 is compatible with the following LS HMI models:
XP Series:
- XP 30-BTA / XP 30-BTE
- XP 30-TTA / XP 30-TTE
- XP 40-TTA / XP 40-TTE
- XP 50-TTA / XP 50-TTE
- XP 70-TTA
- XP 80-TTA
- XP 90-TTA
iXP Series:
- iXP50-TTA
- iXP70-TTA
- iXP80-TTA
- iXP90-TTA
eXP Series:
- eXP20-TTA
- eXP30-TTA / eXP30-TTE
- eXP40-TTA / eXP40-TTE
- eXP60-TTA
iXP2 Series:
- iXP2-0800
- iXP2-1000
- iXP2-1200
- iXP2-1500
- iXP2H-0702D
- iXP2H-0704D
IPC Series:
- PC/AT
Benefits of Using this software
- Improved Productivity: To begin with, with XP Builder V2.20 offering a drag-and-drop platform for HMI design, the development process becomes easier and faster. As a result, there is a reduced possibility of errors, which in turn leads to smoother project completion and ultimately improved overall productivity.
- Custom Solutions: To start with, you can design customized HMI solutions to respond to particular operational needs. Consequently, these tailored configurations help ensure optimal performance at a system level and ultimately enhance overall efficiency.
- Cost-effective: Due to the fact that it is free software downloadable from plcjournal.com, XP Builder Builder V2.20 offers an effective low-budget alternative since expensive licenses need not be purchased to create high-quality HMIs.
How to Download XP Builder V2.20 LS HMI Software
First, try to download it from LS official website.
- Visit the Official LS Website: First of all, start by going to the LS official website. From there, you can easily navigate to the appropriate section to locate the software download page.
- Search for this software: Next, use the search bar to find this software, and once you’ve entered the name, carefully review the results to locate the correct download page.
- Select the Download Option: Once you navigate to the product page, look for the download section.
- Fill Out Necessary Information: You may be required to create an account or provide information such as email and company details.
- Accept the Terms and Conditions: Make sure to read through and accept the licensing agreements or terms before downloading.
- Download the Software: Click the download link and save the file to your computer.
- Install the Application: Follow the installation instructions provided to complete the setup.
If you fail to download the software in any way, then download the software by clicking on the download button below this post.
How to Install XP Builder V2.20 LS HMI Software
To begin with, follow these simple steps to download and install the XP Builder V2.20 LS HMI Software on your system. In addition, this guide will walk you through the entire process, thereby ensuring a smooth and trouble-free installation experience from start to finish.

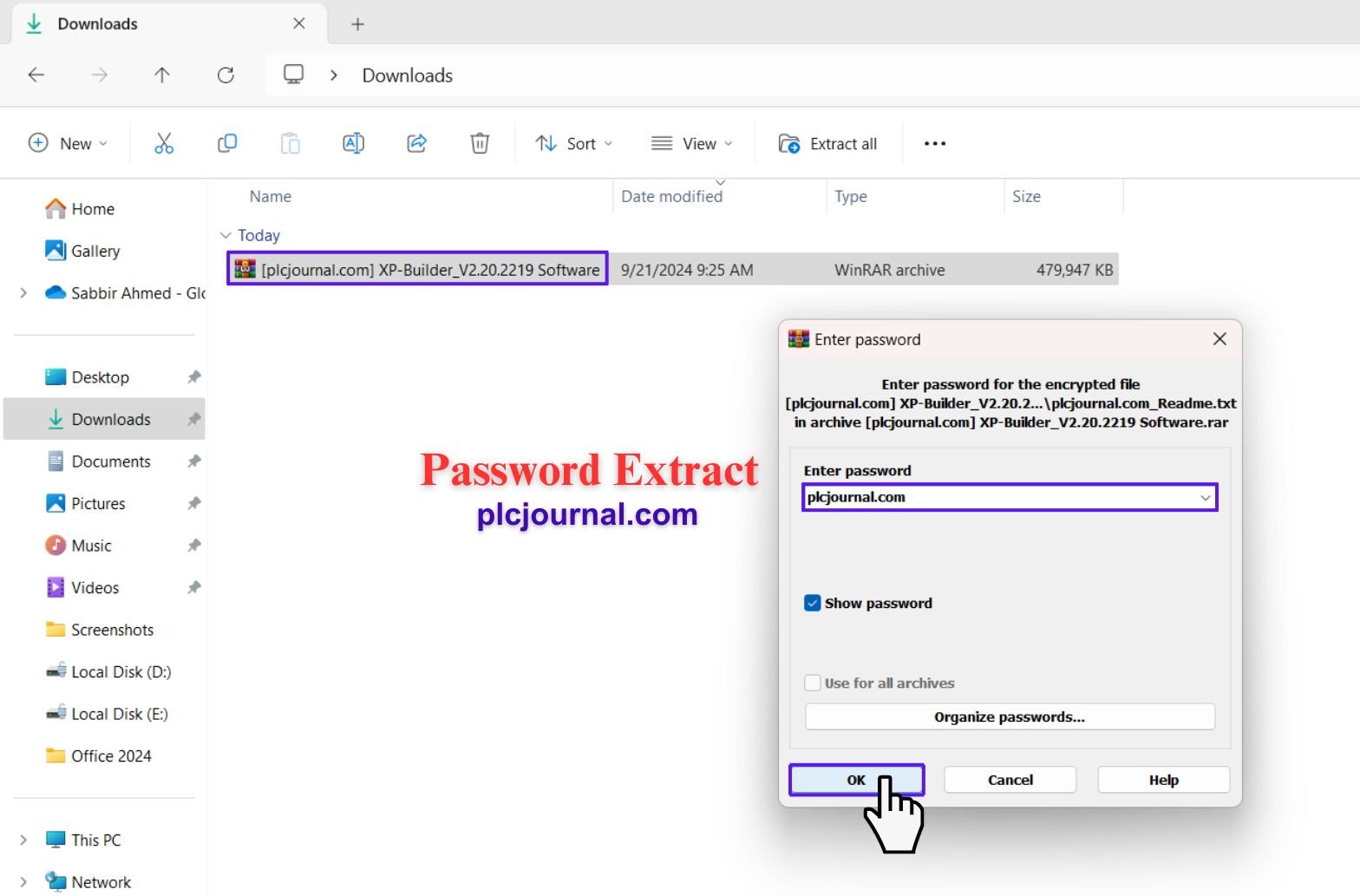

1. Download the Software
First, download the software from Google Drive. Then, use the password “plcjournal.com” to unlock the file, ensuring that you gain full access to all installation files without any issues.
2. Open the Software Folder
- Next, navigate to the downloaded file, and then double-click the “XP-Builder_V2.20.2219 Software” folder in order to open it. By doing so, you can access all the necessary files needed for the installation process.

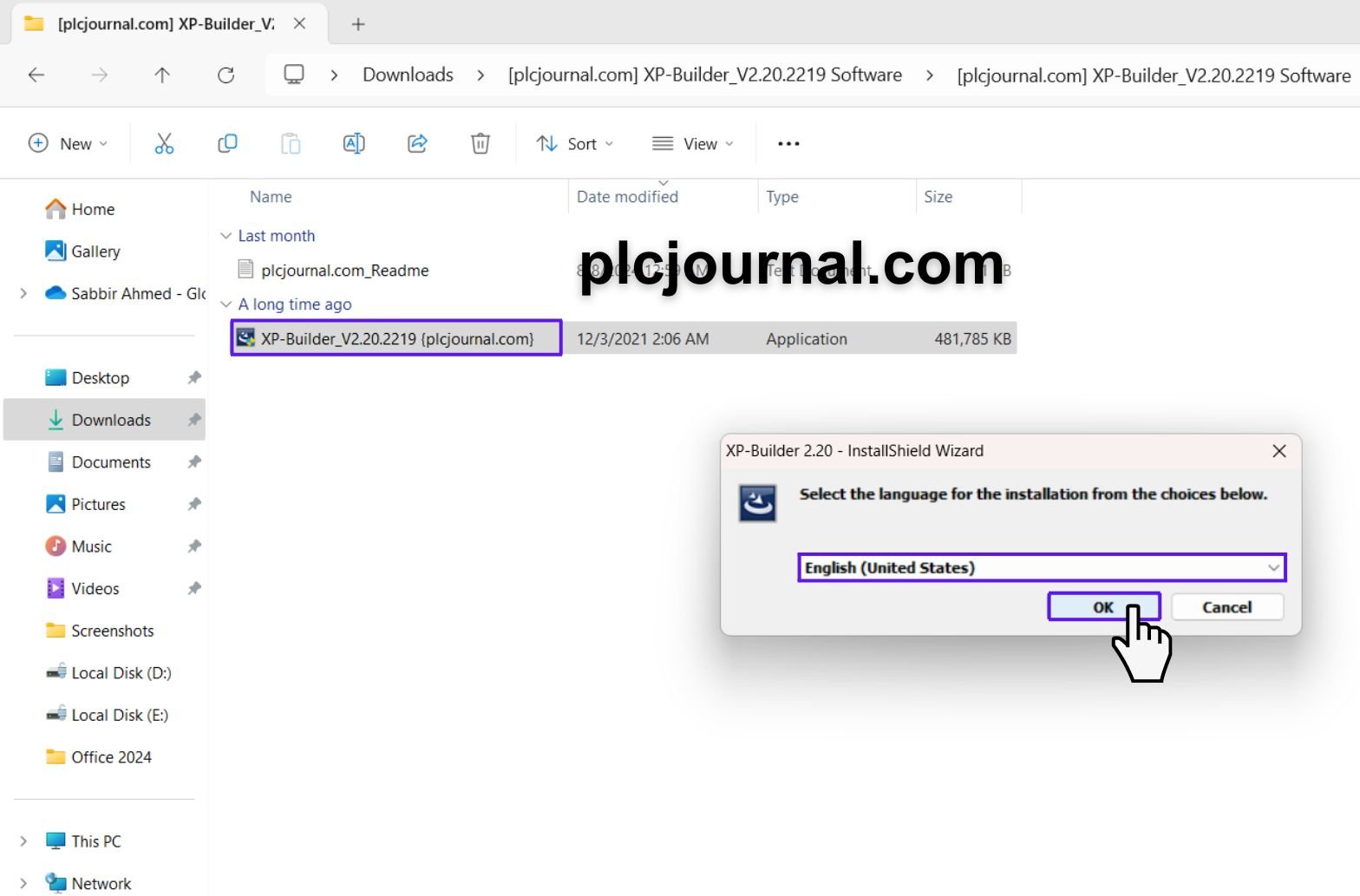

3. Start the Installation Process
- After opening the folder, run the installation setup by double-clicking the “XP-Builder_V2.20.2219” file. By doing this, the installation wizard will launch, allowing you to begin the software setup process step by step.
- Once the installation window appears, select your preferred language from the options provided, and then click “OK” to proceed to the next step.

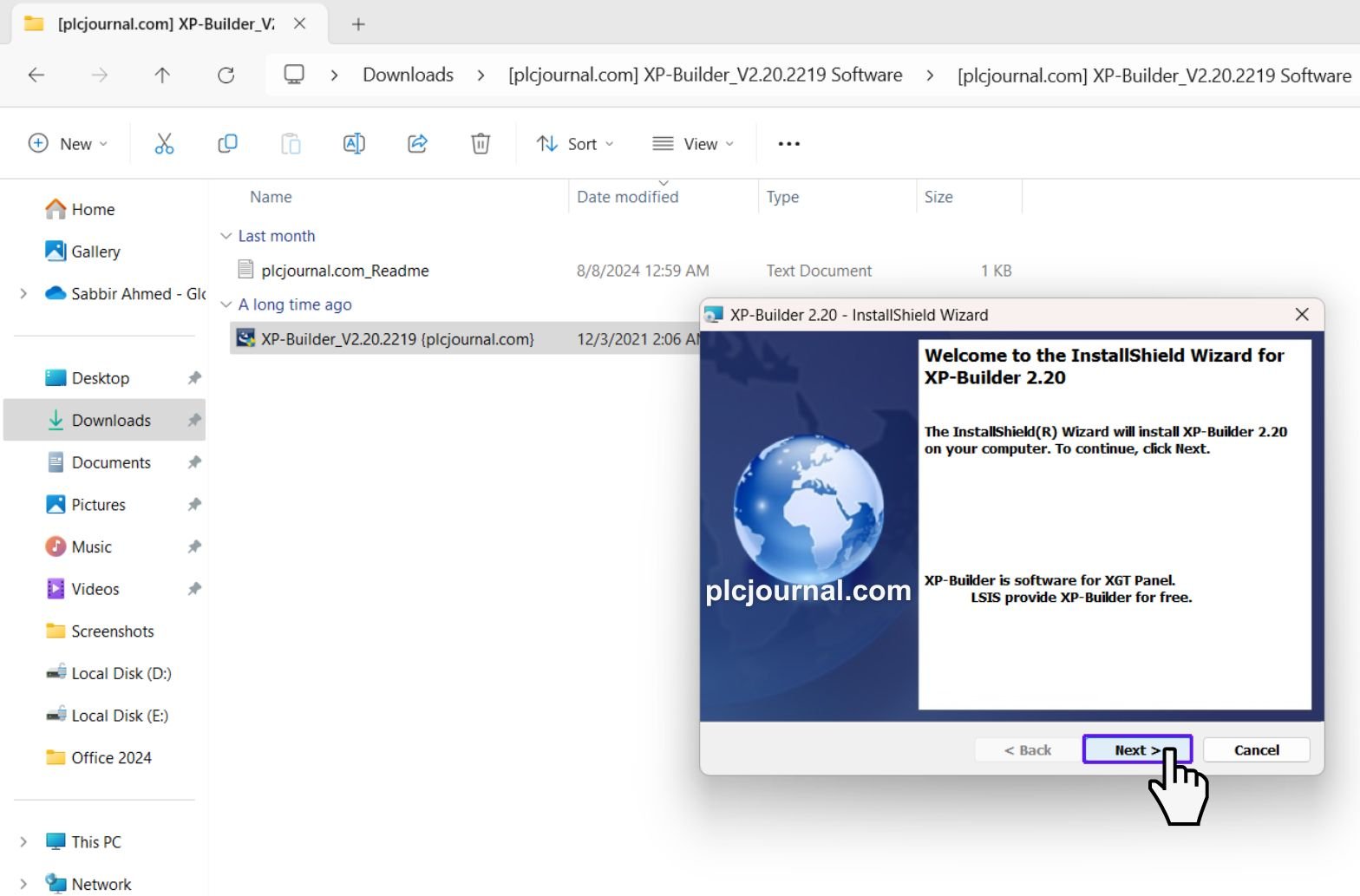

4. Begin the Installation Wizard
- After launching the setup file, the “XP-Builder 2.20” installation wizard will open. At this point, click “Next” in order to proceed to the next step of the installation process.
5. Enter User Information
- Fill in your User Name and Organization details, then click “Next” to continue.

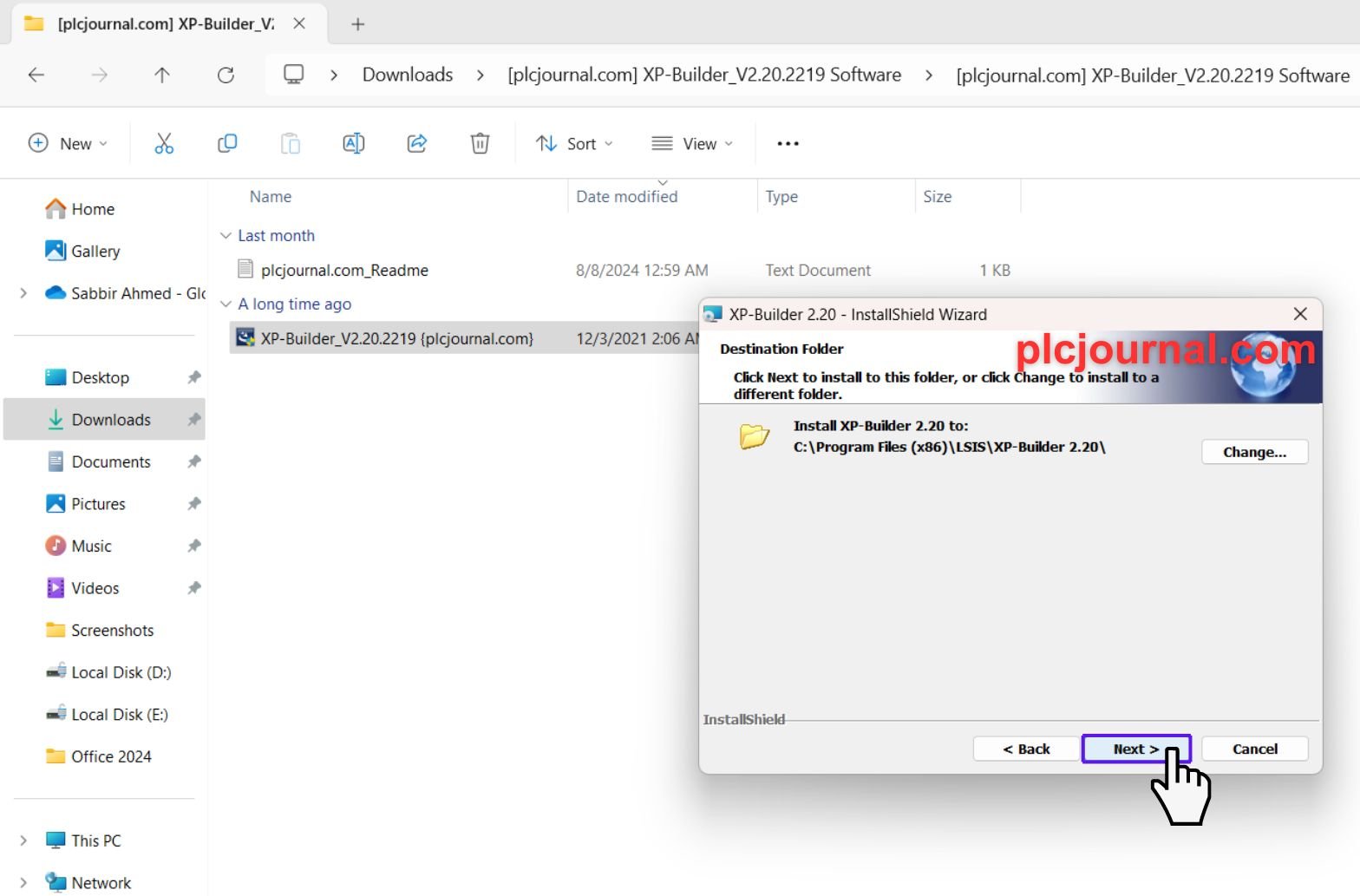

6. Choose the Destination Folder
- First, pick the folder where you wish to install the software. Then, click “Next” so that you can move on to the next step of the installation process.

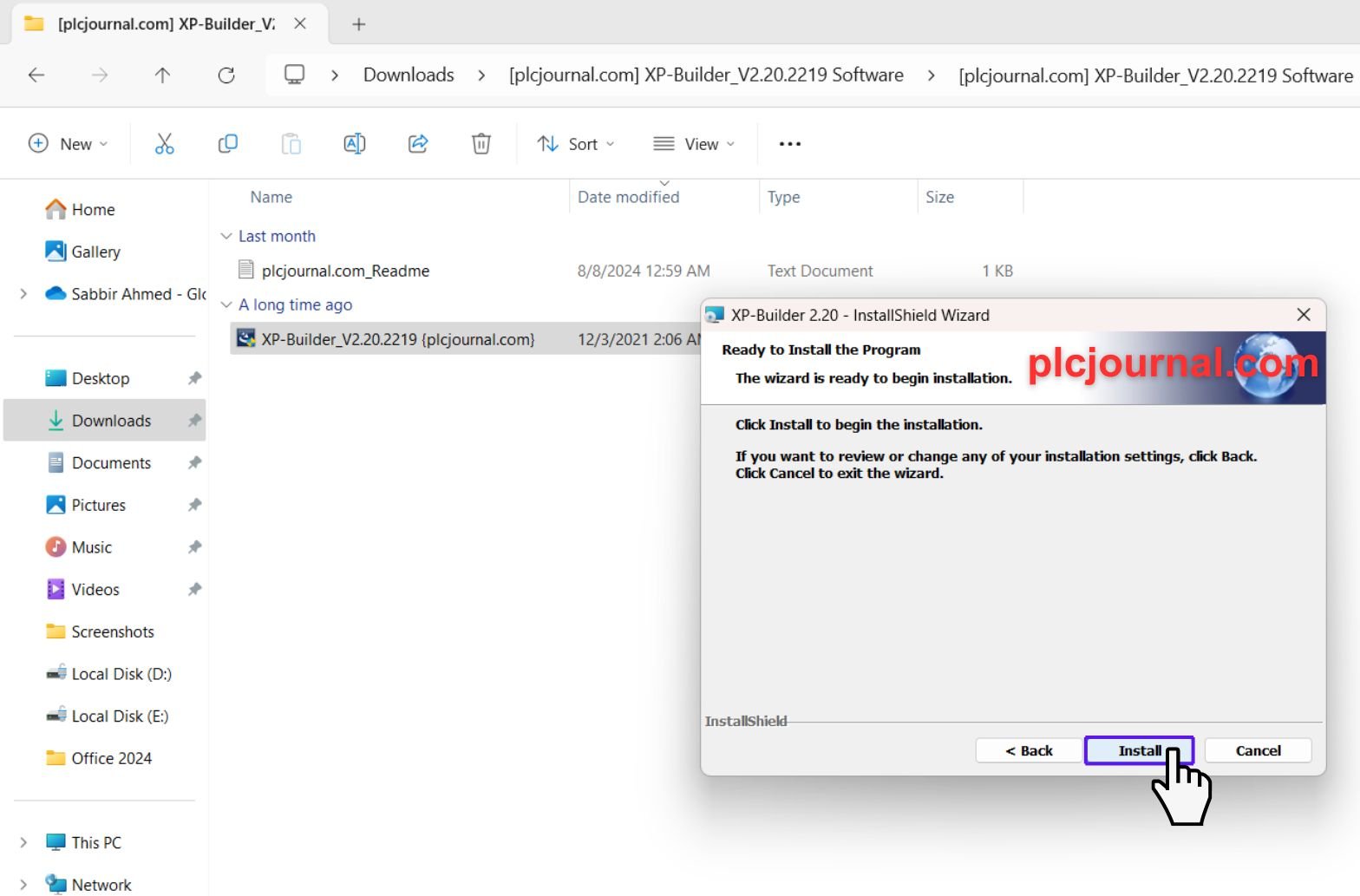

7. Start the Installation
- At this stage, the program is now ready to be installed. Therefore, click “Install” to officially begin the installation process and move forward with setting up the software.

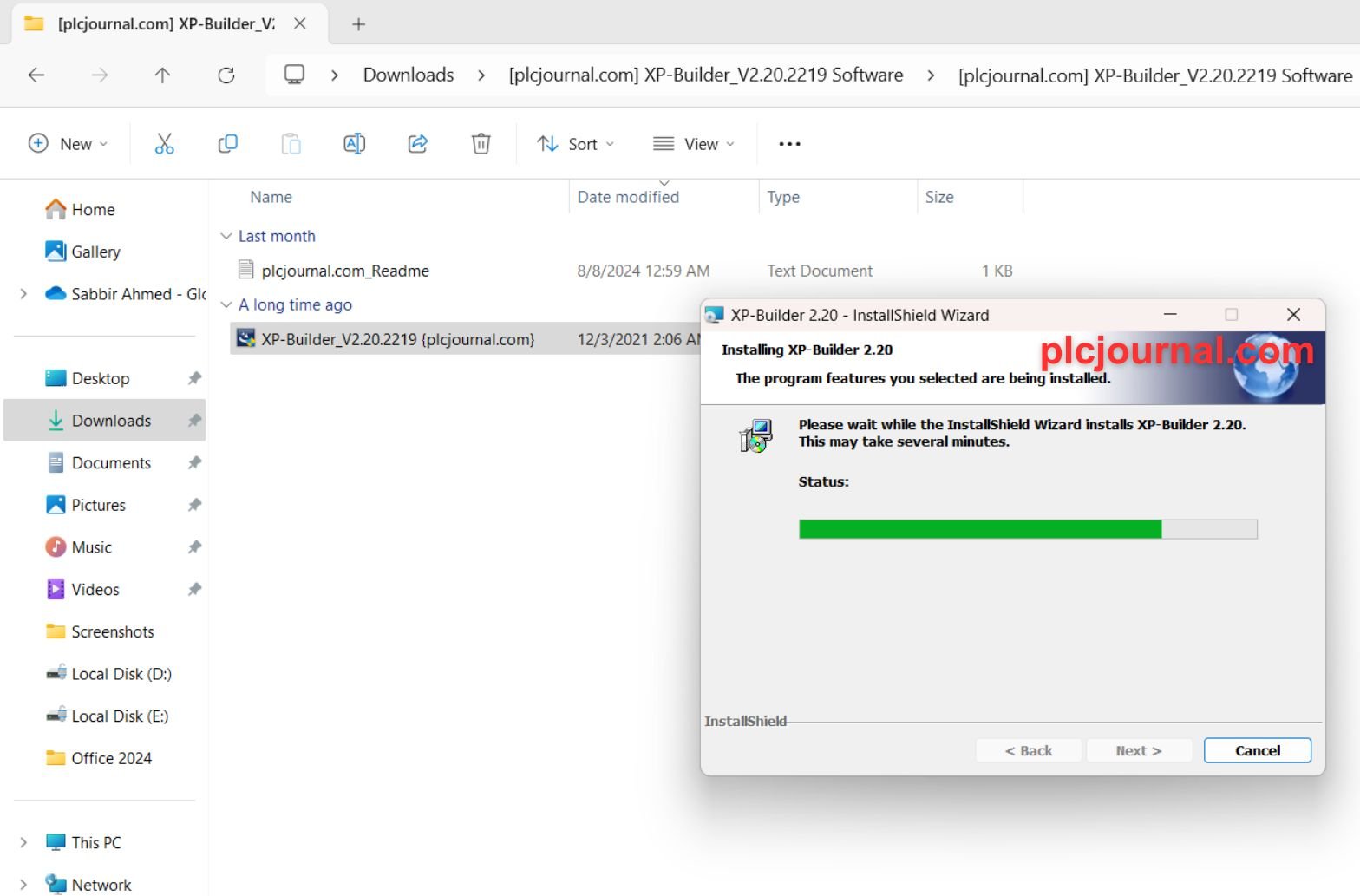

8. Installation in Progress
- During the installation, you’ll see a progress window. Wait for the process to complete.

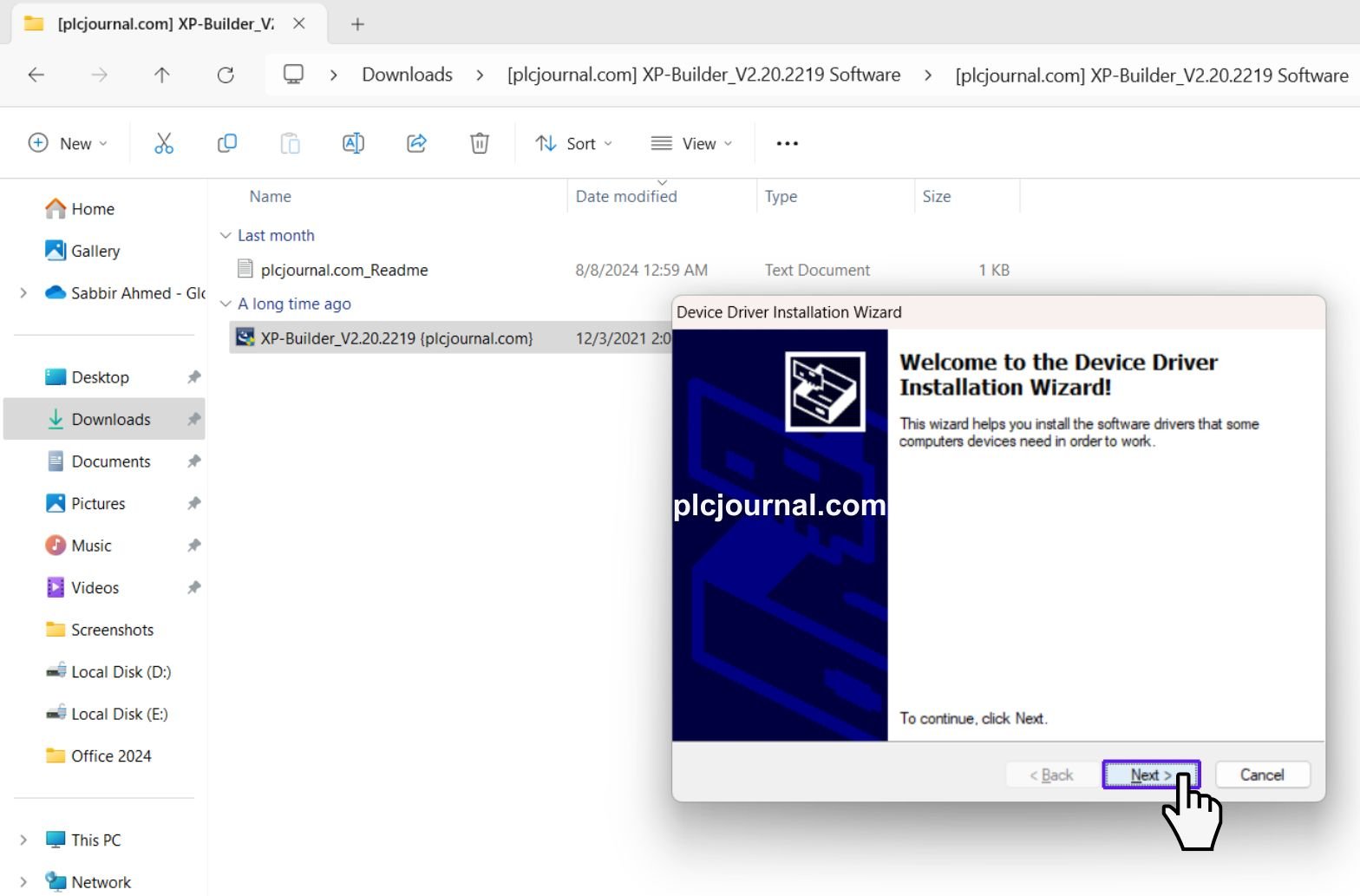

9. Device Driver Installation Wizard
- Subsequently, the “Device Driver Installation Wizard” will start automatically. At this point, click “Next” in order to proceed with the installation process.

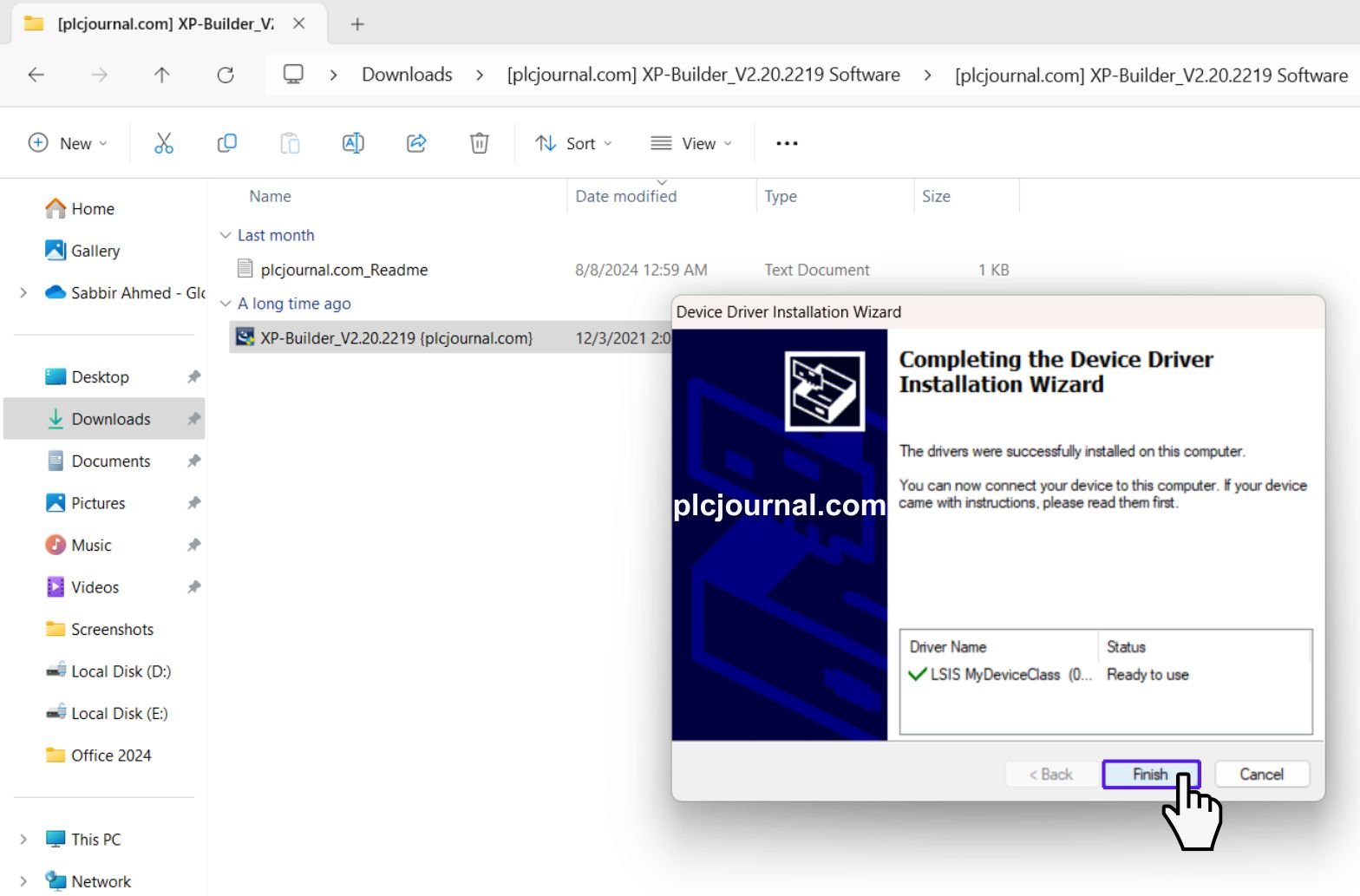

10. Complete the Device Driver Installation
- Once the device driver installation is successfully finished, click “Finish” to officially complete the process and move on to the next step.
11. Complete XP Builder Installation
- Finally, the installation of “XP-Builder 2.20” is now complete. At this point, click “Finish” to officially complete the process and exit the installation wizard.

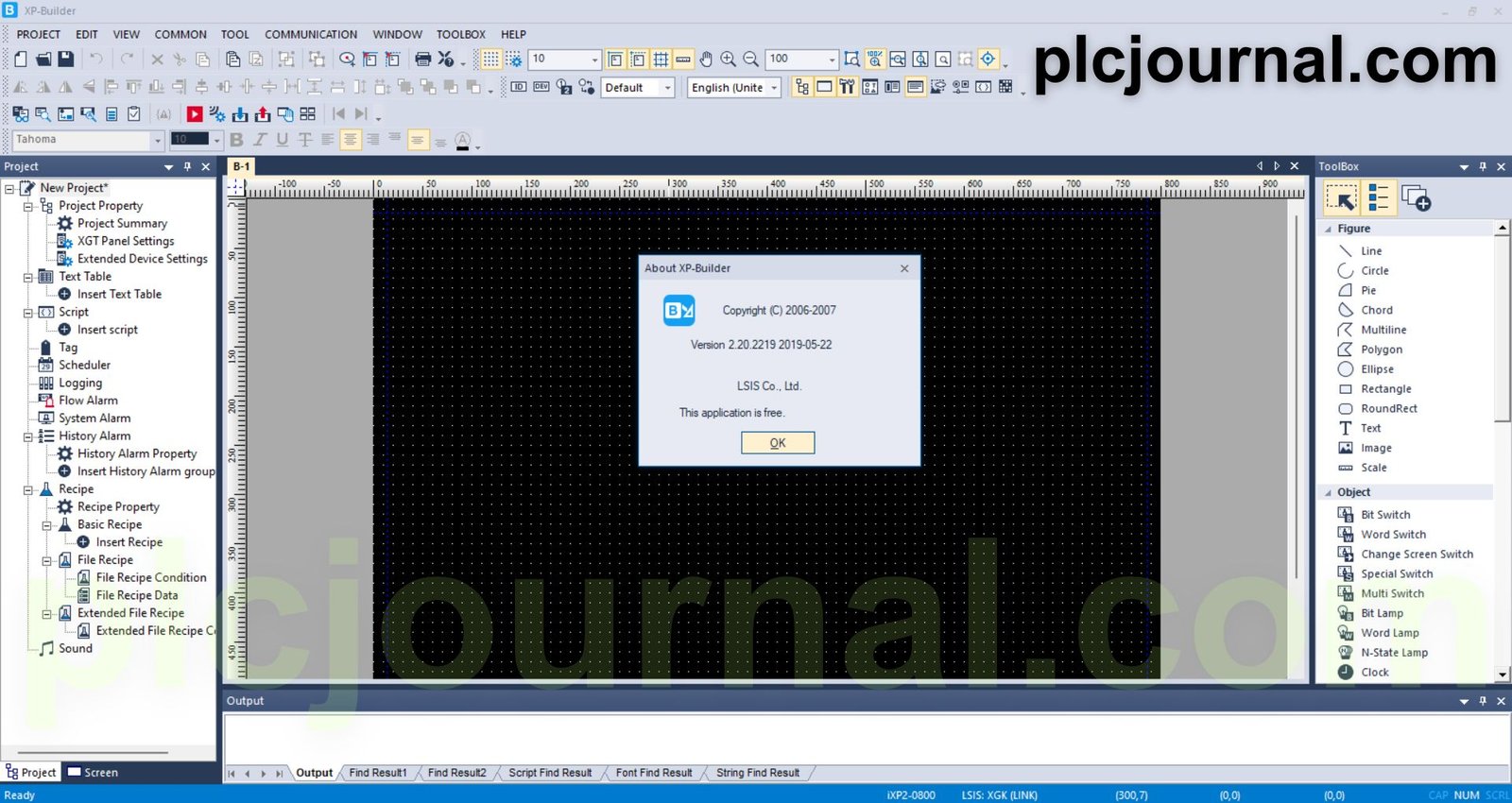

12. Launch XP Builder
- Congratulations! Your “XP-Builder 2.20” software is now successfully installed. Moreover, it is fully ready to use, allowing you to start creating and customizing HMI projects immediately.
Download Information:
Free Download XP Builder V2.20 LS HMI Software Free 100% Real (Google Drive)
Extraction Password: plcjournal.com
Enjoy Free Download of XP Builder V2.20 LS HMI Software! Share with other people and comment below if you like this material, support that many people get the desired benefit from the software.
