PANATERM V6: Improving Panasonic Minas A5 And A6 Servo Motor Performance

Introduction to PANATERM V6

Download PANATERM V6 Panasonic is the further development of the accompanying software for Panasonic Minas A5 and A6 Servo Systems. As a versatile instrument it strengthens the Initialisation and evaluating as well as maintaining of your servo drives for achieving improved results. PANATERM V6 is crucial for any precision automation, robots and anything else done in the industrial field to allow servos to run smoothly.

Advantages of the Application of PANATERM V6 with Panasonic Minas A5 and A6:

Enhanced Precision: Obtain improved control and accuracy in servo application, which is provided by the characteristics of the software tuning.
Increased Efficiency: Lenze servo drive performance enhanced to attain lowest energy consumption and greatest system efficacy.
Reduced Downtime: Real-time monitoring and diagnostics reduce the chances of failure since you can easily identify a problem before it fails to hamper your operations.
Simplified Maintenance: Performance of servo systems and firmware upgrades are just a touch away and therefore servicing your system becomes a breeze.

PANATERM V6 supports the installation of the following models:

Minas A5 Series: Includes the Minas A5, Minas A5B, Minas A5B (March 2015), Minas A5BL DD, and Minas A5BL LINEAR models.
Minas A5II Series: Comprising Minas A5II, Minas A5L DD, and Minas A5L LINEAR.
Minas A5L04 (LA4) Series: Covers Minas A5L04 (LA4) LINEAR and Minas A5L04 (LA4) DD, as well as Minas A5MN and Minas A5N.
Minas A5N Series: Includes Minas A5ND1, Minas A5NL DD, and Minas A5NL LINEAR.
Minas A6 Series: Encompasses Minas A6, Minas A6B, Minas A6BL DD, and Minas A6BL LINEAR.
Minas A6L Series: Includes Minas A6L DD and Minas A6L LINEAR.
Minas A6N Series: Covers Minas A6N, Minas A6N DD, and Minas A6N LINEAR.

System Requirements:

CPU: 800 MHz or higher
RAM: Minimum 512MB system memory; at least 32MB graphics memory
Disk Space: At least 512MB of available storage
Supported Operating Systems: Windows 7 (64-bit), Windows 8 (64-bit), or Windows 10 (64-bit)
Communication Ports: USB, RS232
Display Resolution: 1024 × 768 pixels or higher

Installation details for PANATERM V6 Panasonic Minas A5 A6 Servo:

Step:

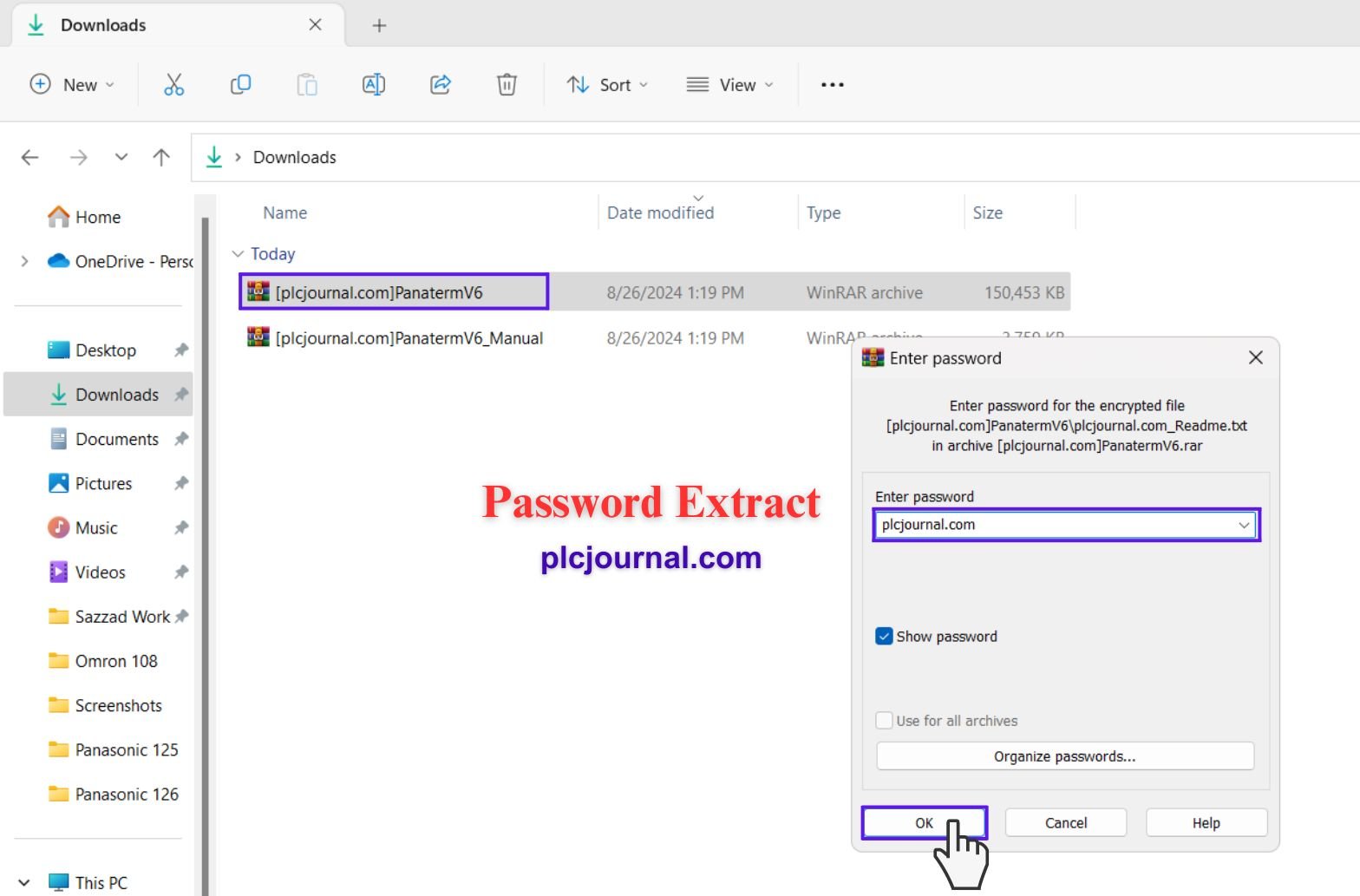

1. Download the Software:

Download the software from Google Drive.
Use the password plcjournal.com to unlock it.

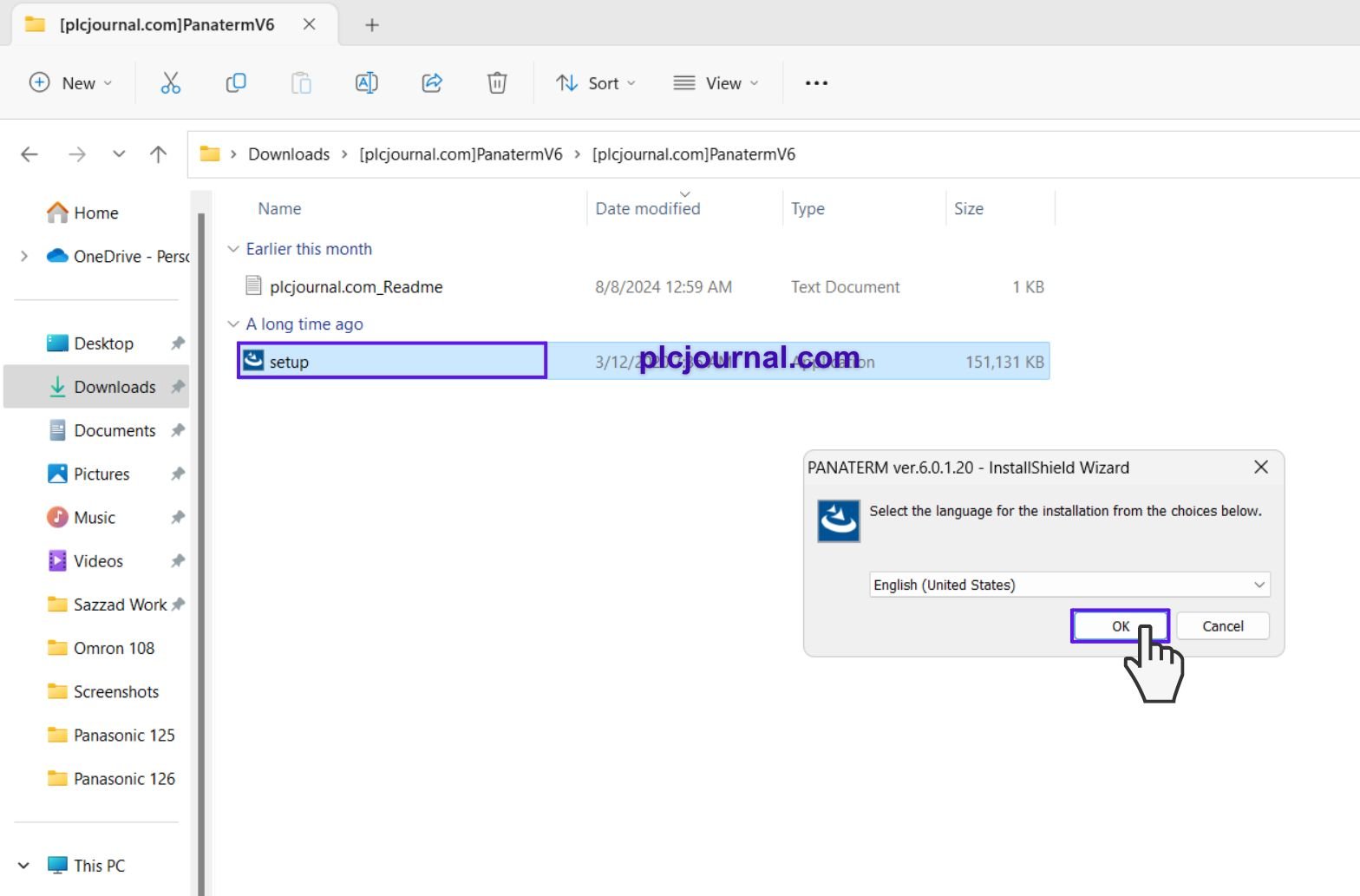

2. Start the Installation:

To get this process underway, right click the setup file and click on it to open again before double-clicking it to start the installation.
A window will appear—select your preferred language and click “OK.”

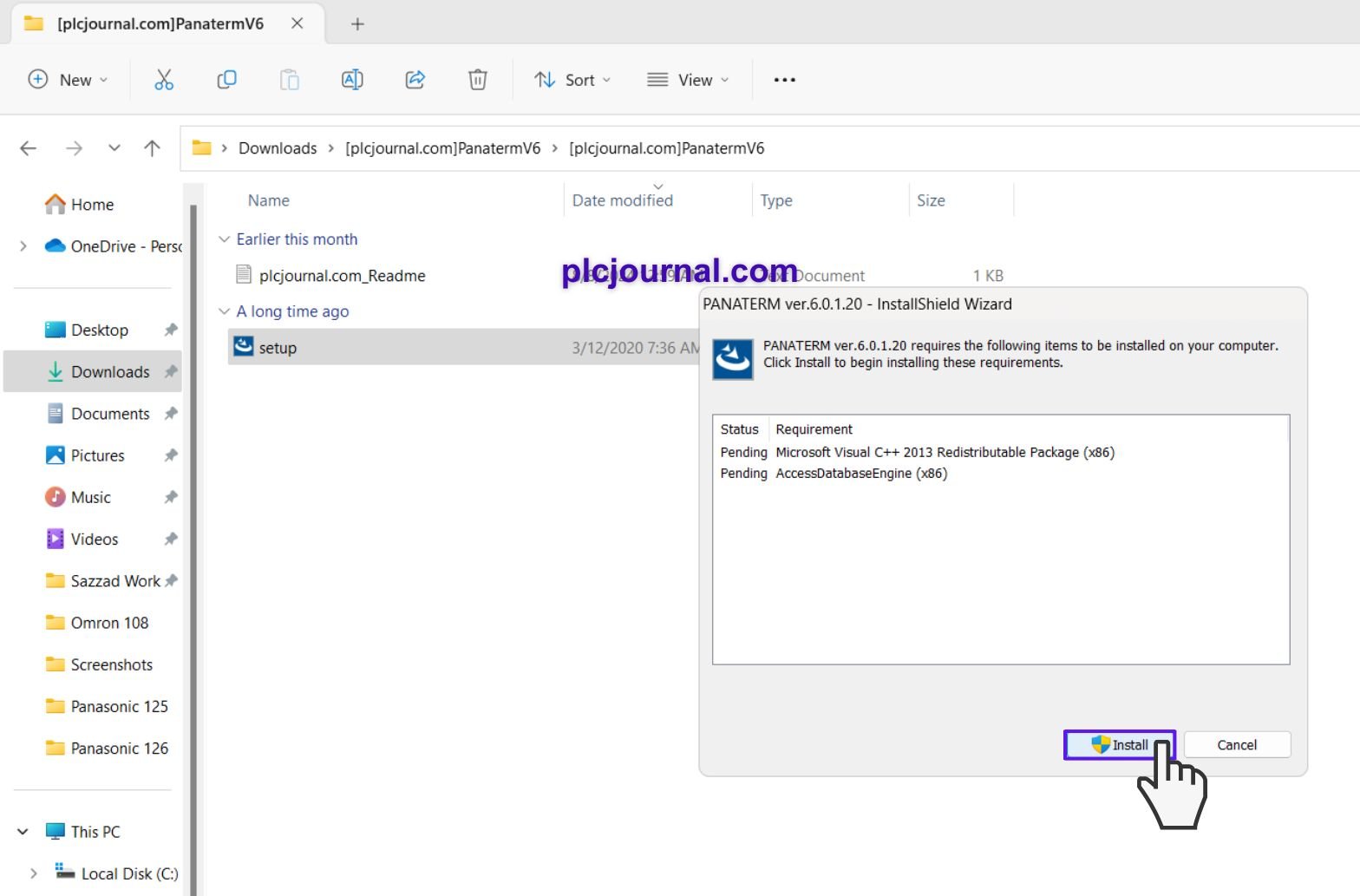

3. Begin Installation:

Click “Install” to start the installation process.

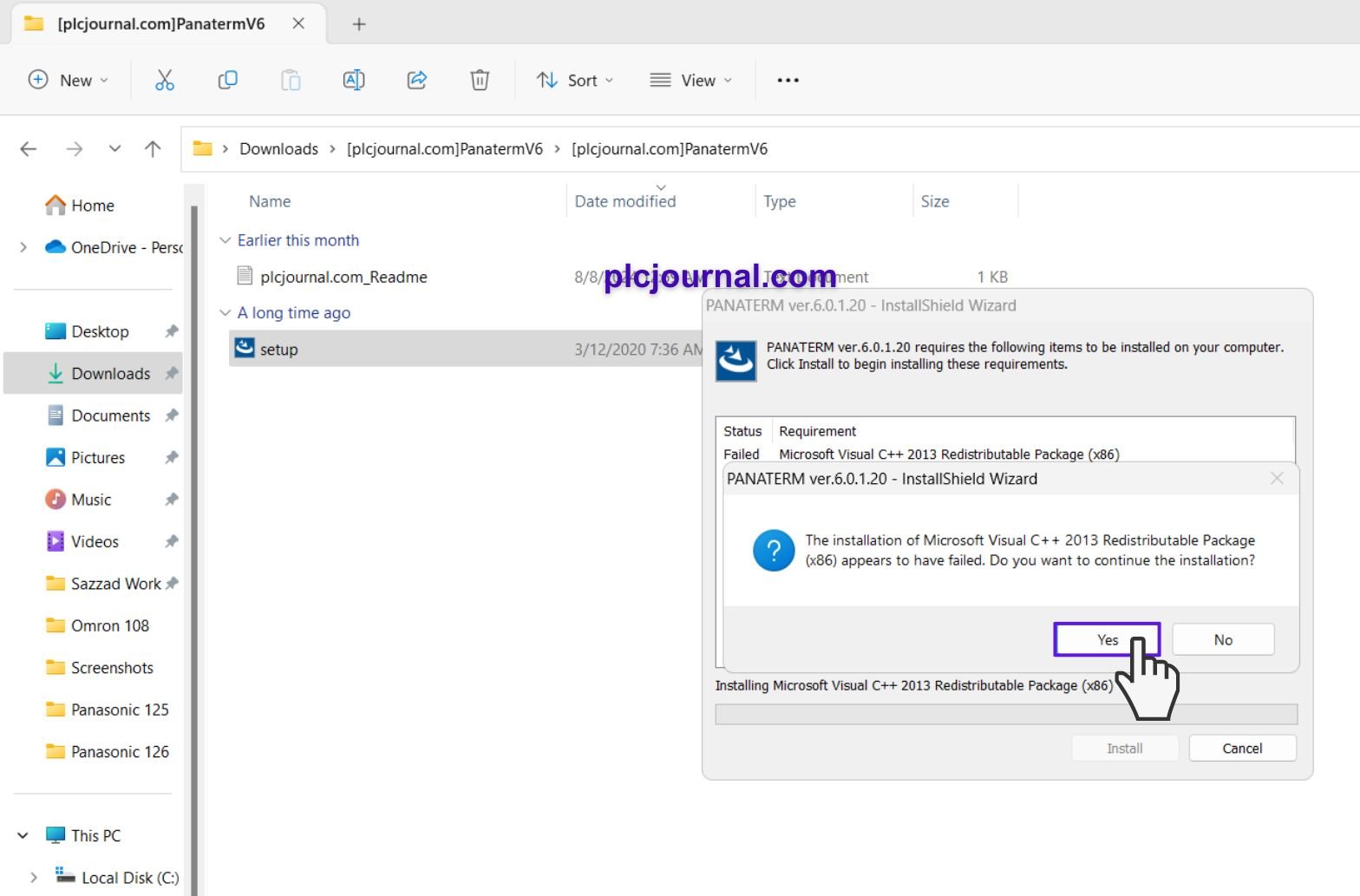

4. Proceed with Installation:

When prompted, click “Yes” to continue to the next step.

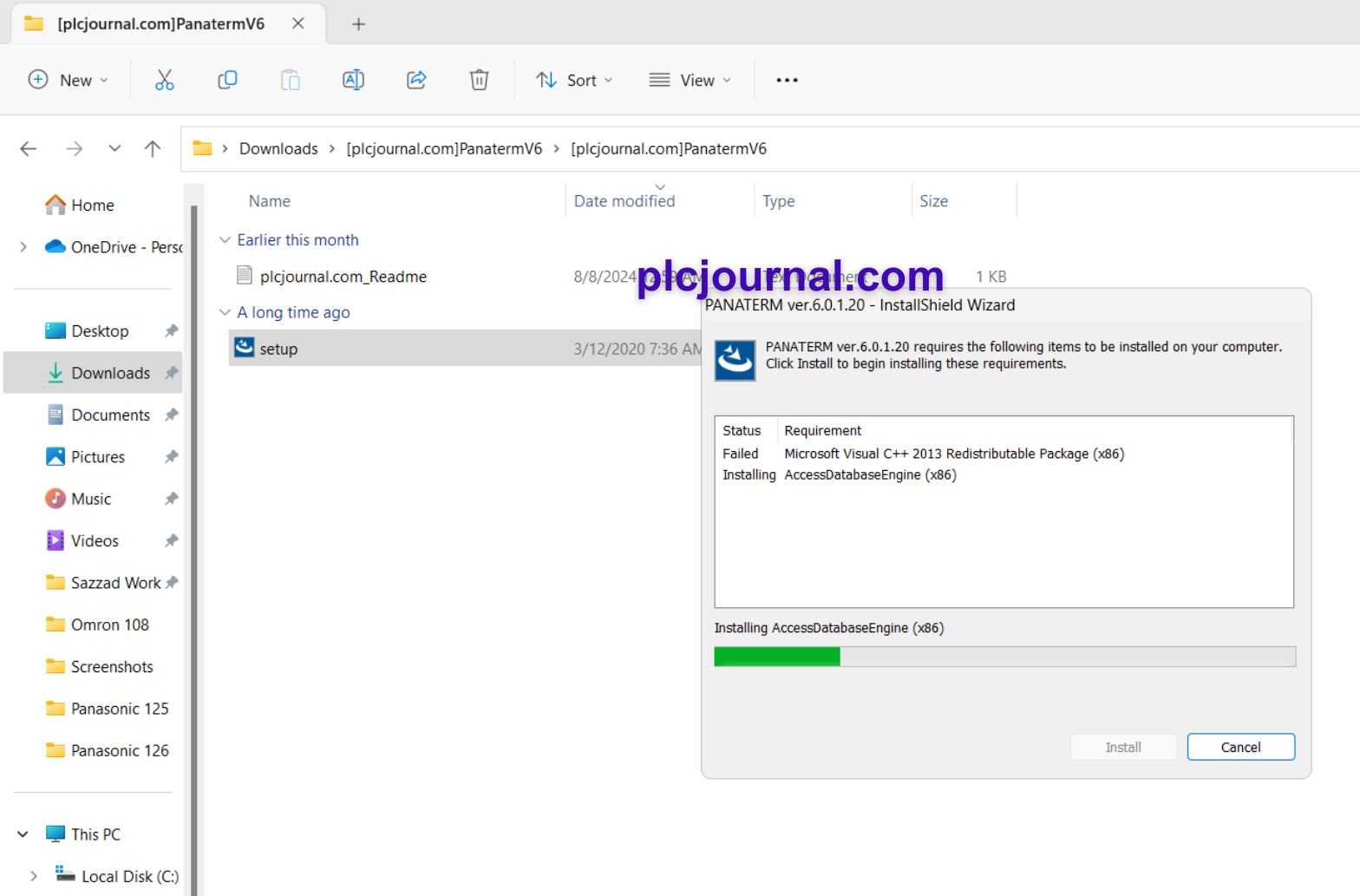

5. Installation Begins:

The installation process will start automatically.

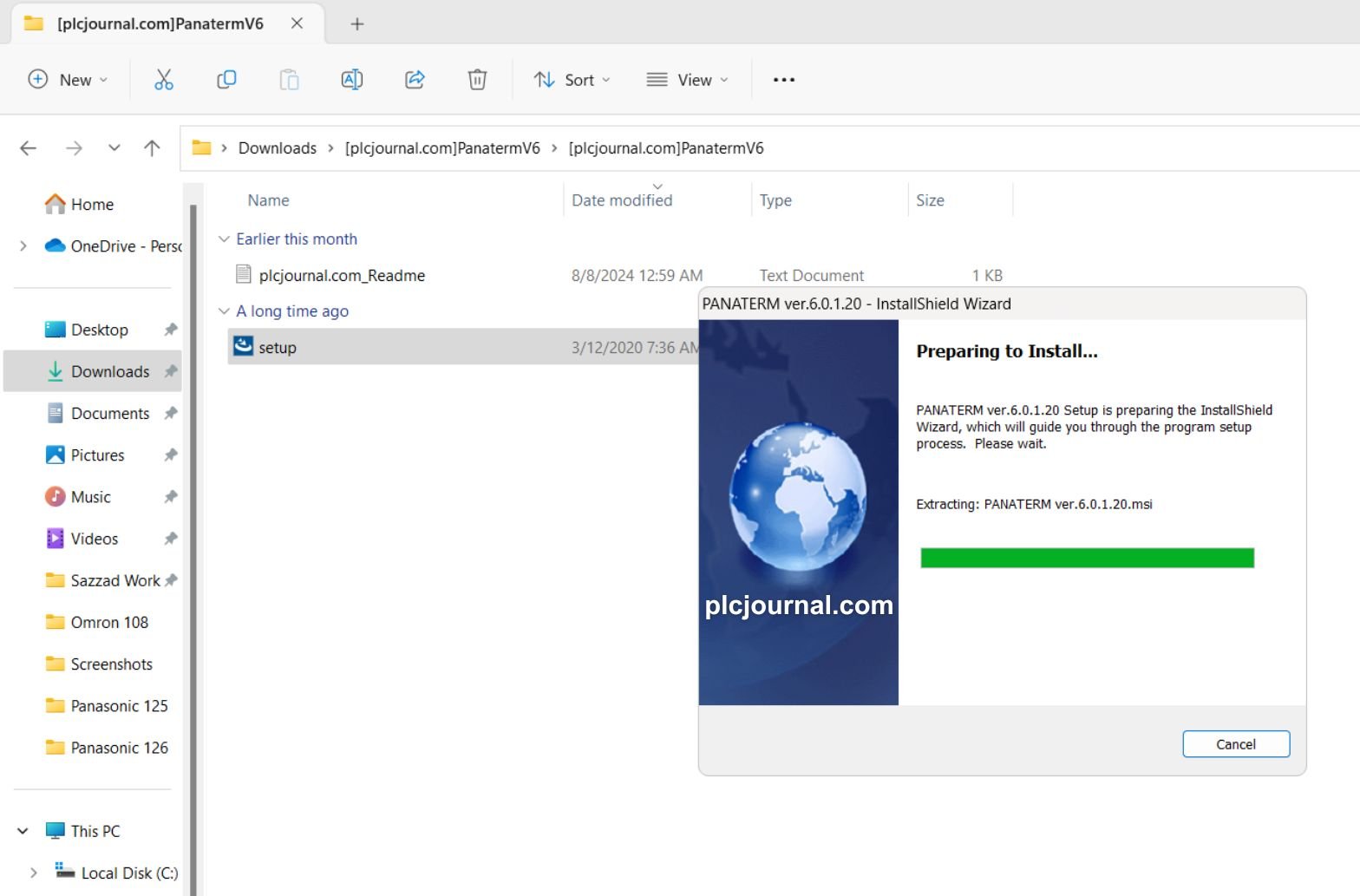

6. Installation Progress Window:

As the installation begins, you will see a progress window similar to this one.

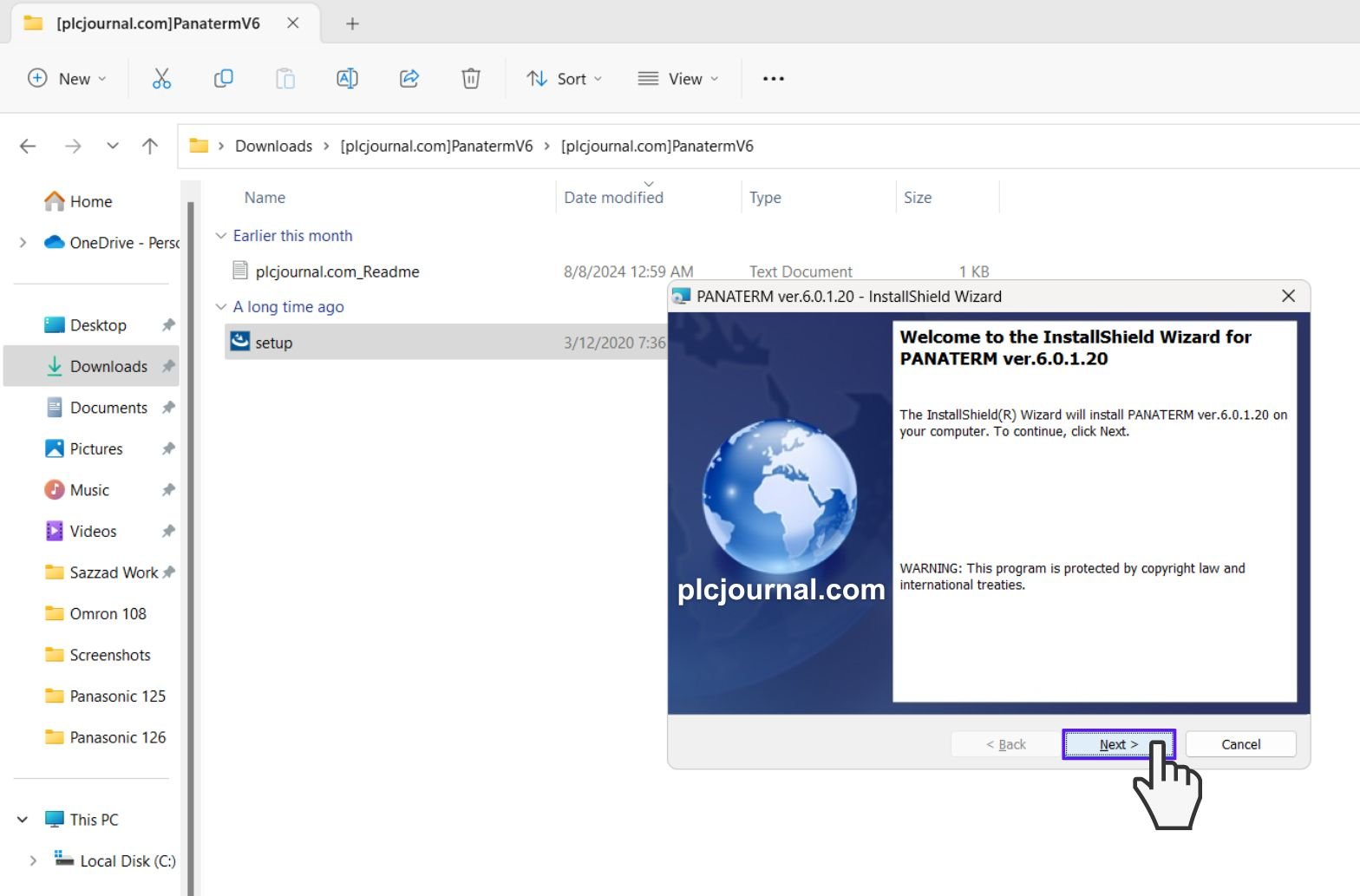

7. Click Next:

Click the “Next” button to move forward in the installation process.

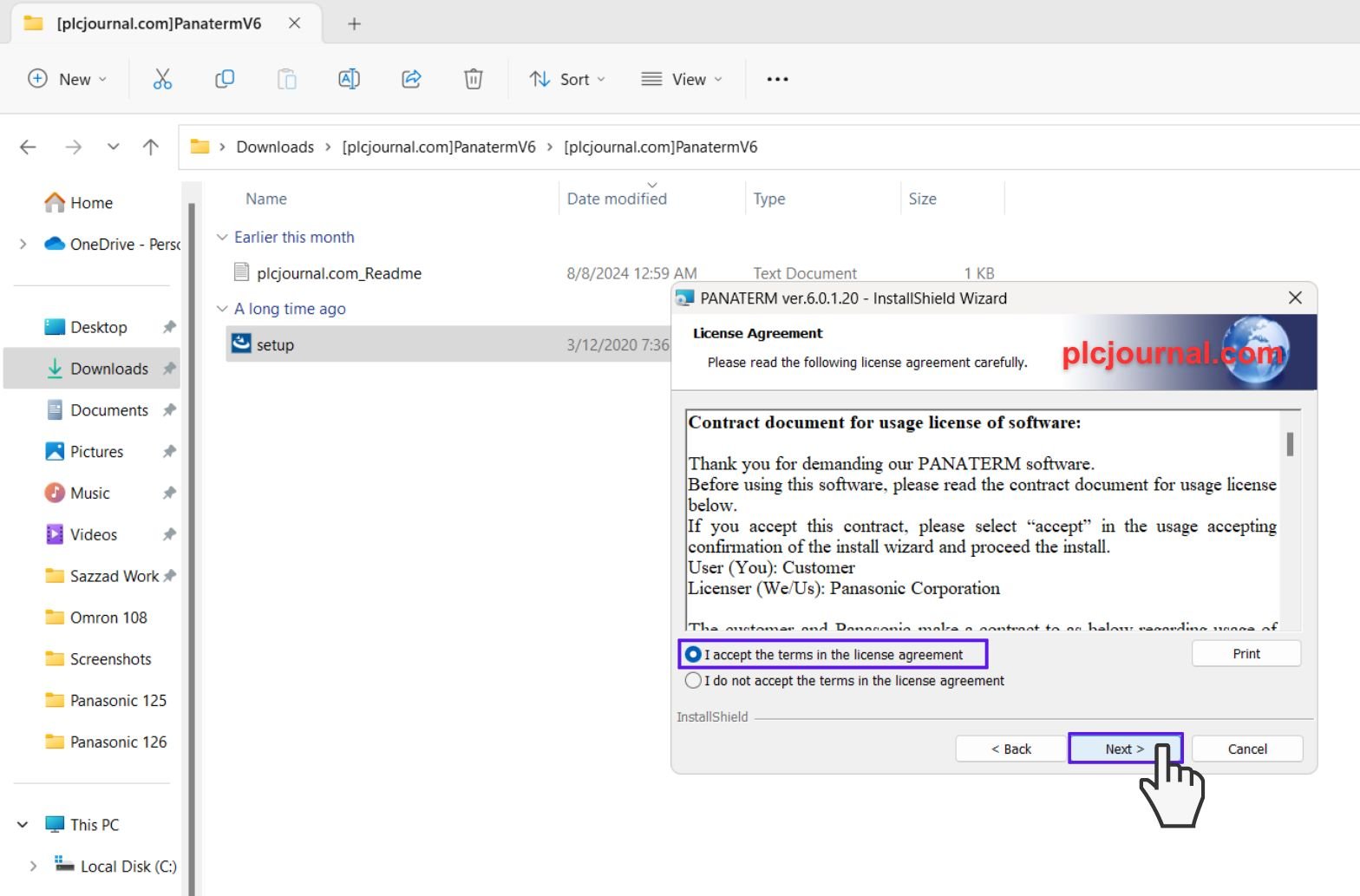

8. Agree to License Terms:

Read the license agreement.
Select the appropriate option to agree, then click “Next” to proceed.

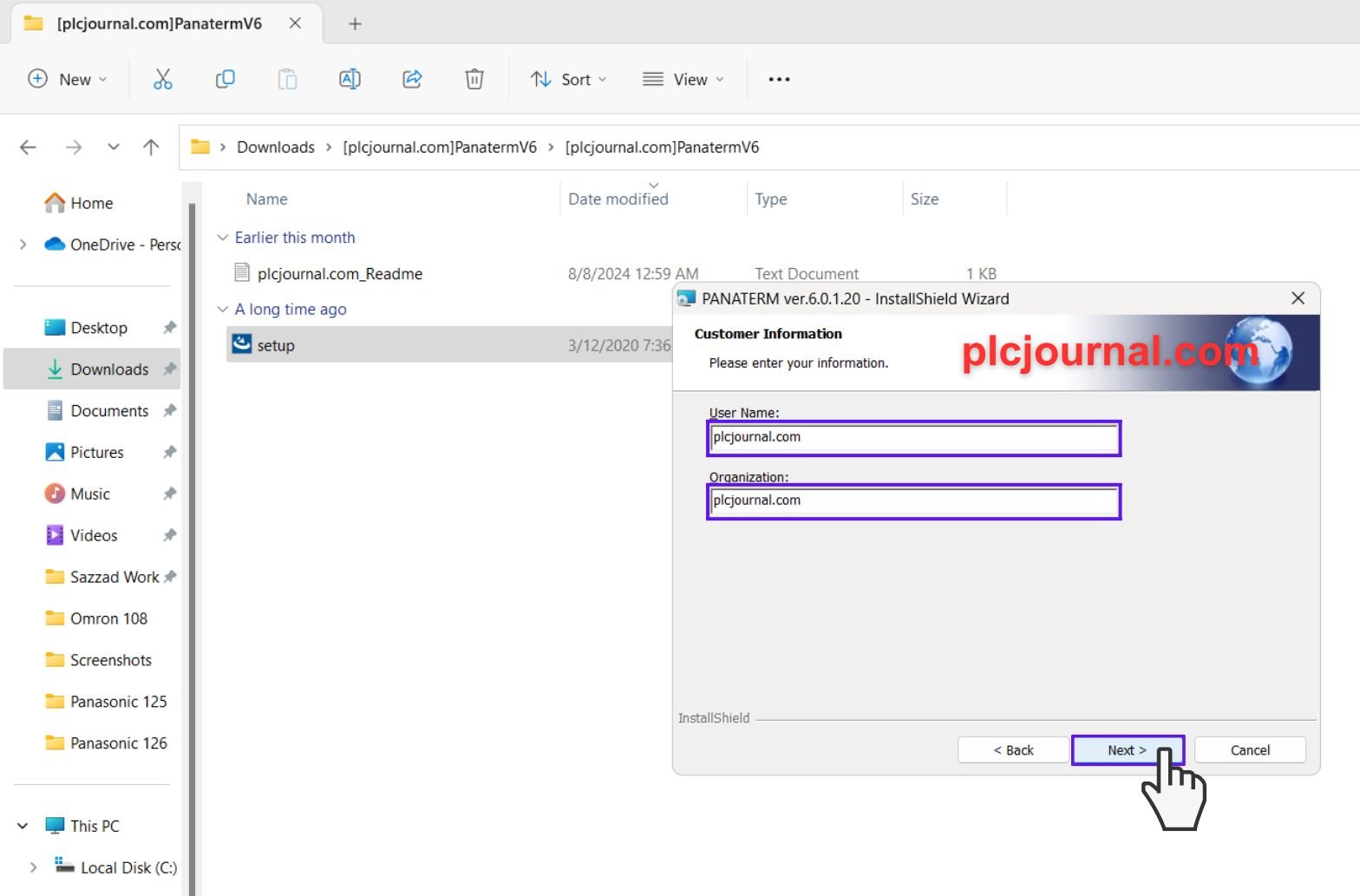

9. Enter User Information:

Enter your user ID and company name.
Click “Next” to continue.

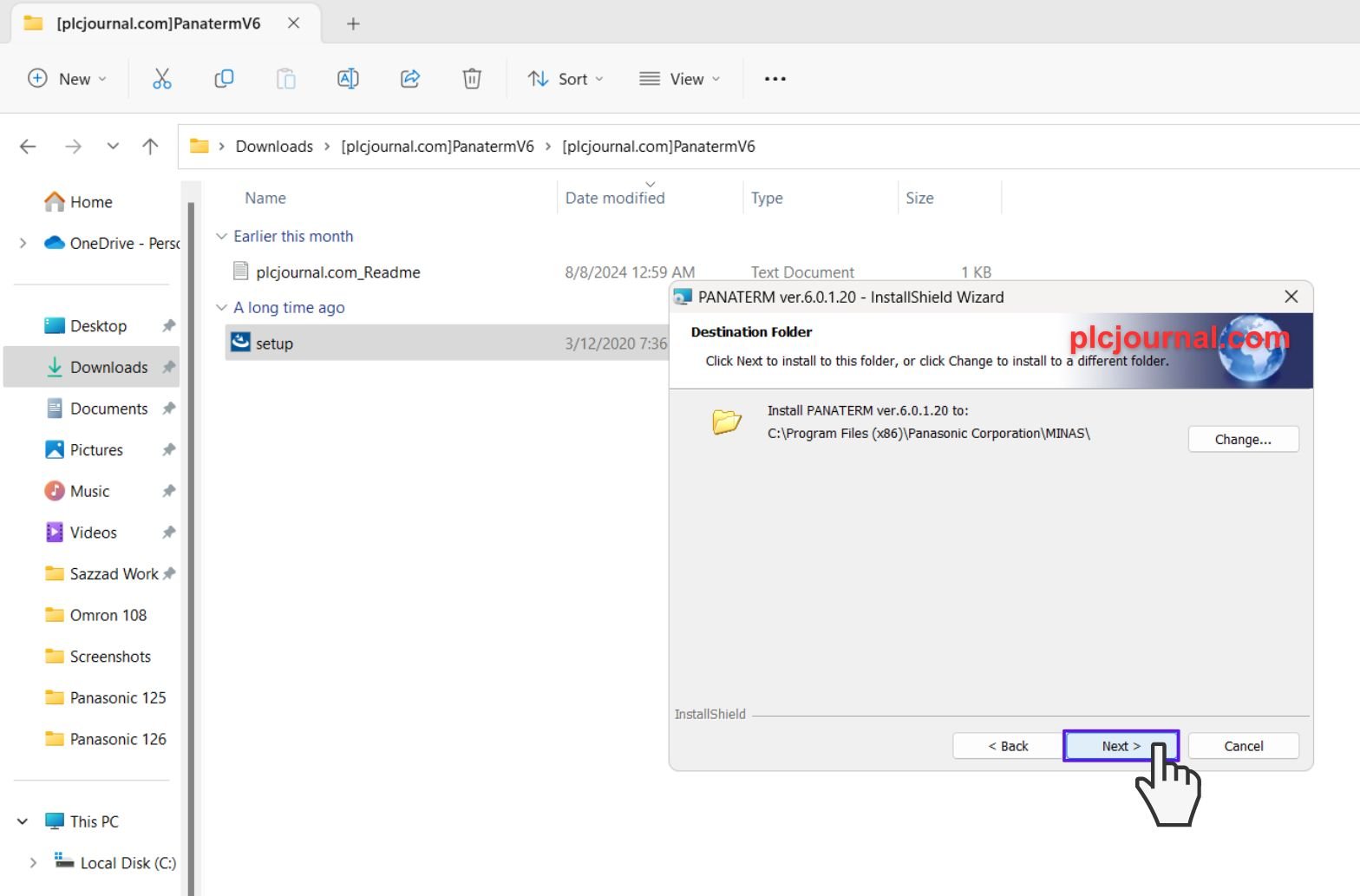

10. Choose Installation Folder:

Select your destination folder for the software installation.
Click “Next” to advance to the next step.

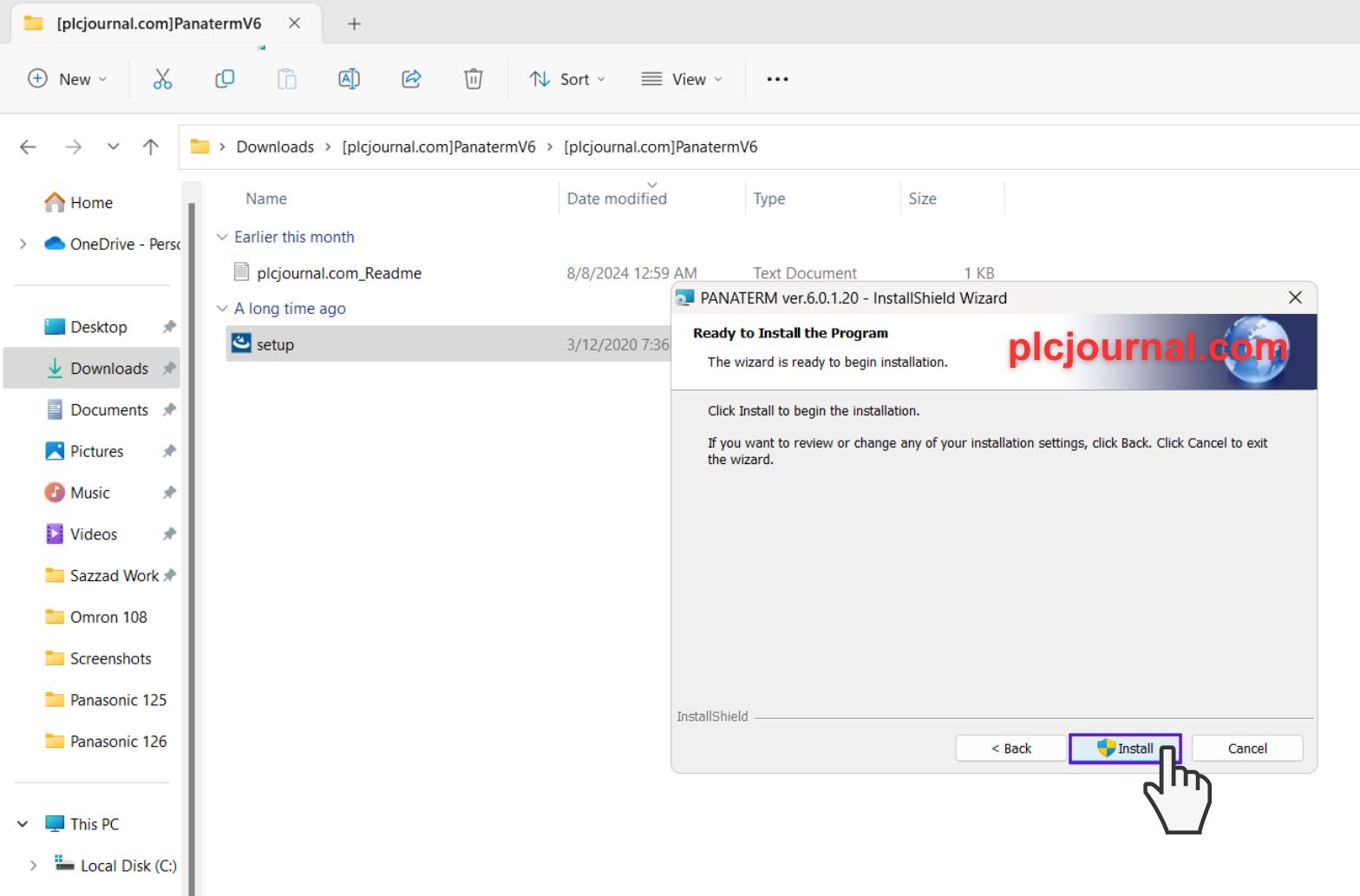

11. Final Installation Step:

Click “Install” to begin the final installation.

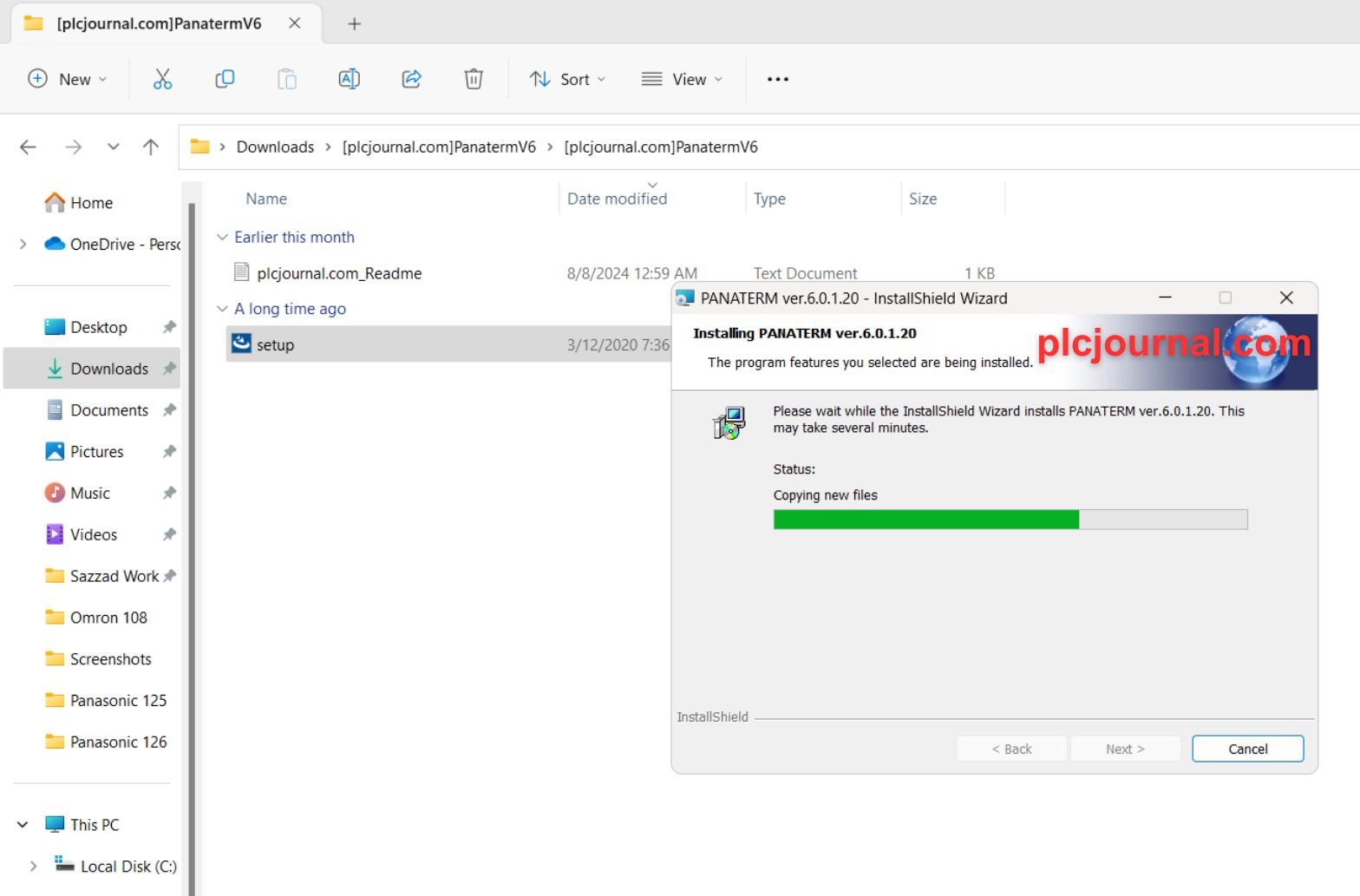

12. Installation Progress:

As the installation continues, you will see another progress window. Wait for it to complete.

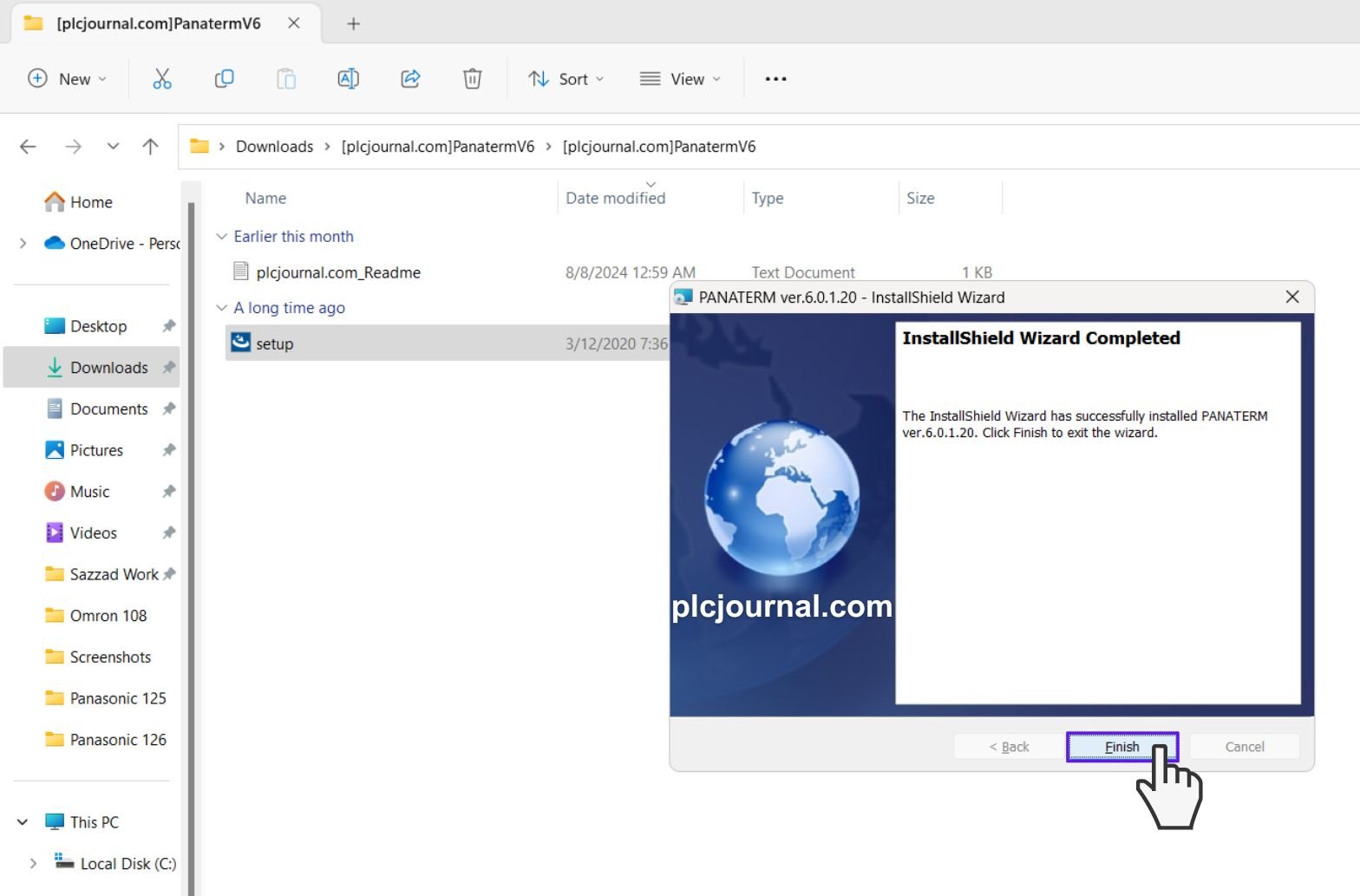

13. Complete Installation:

Once the installation is finished, click “Finish.”

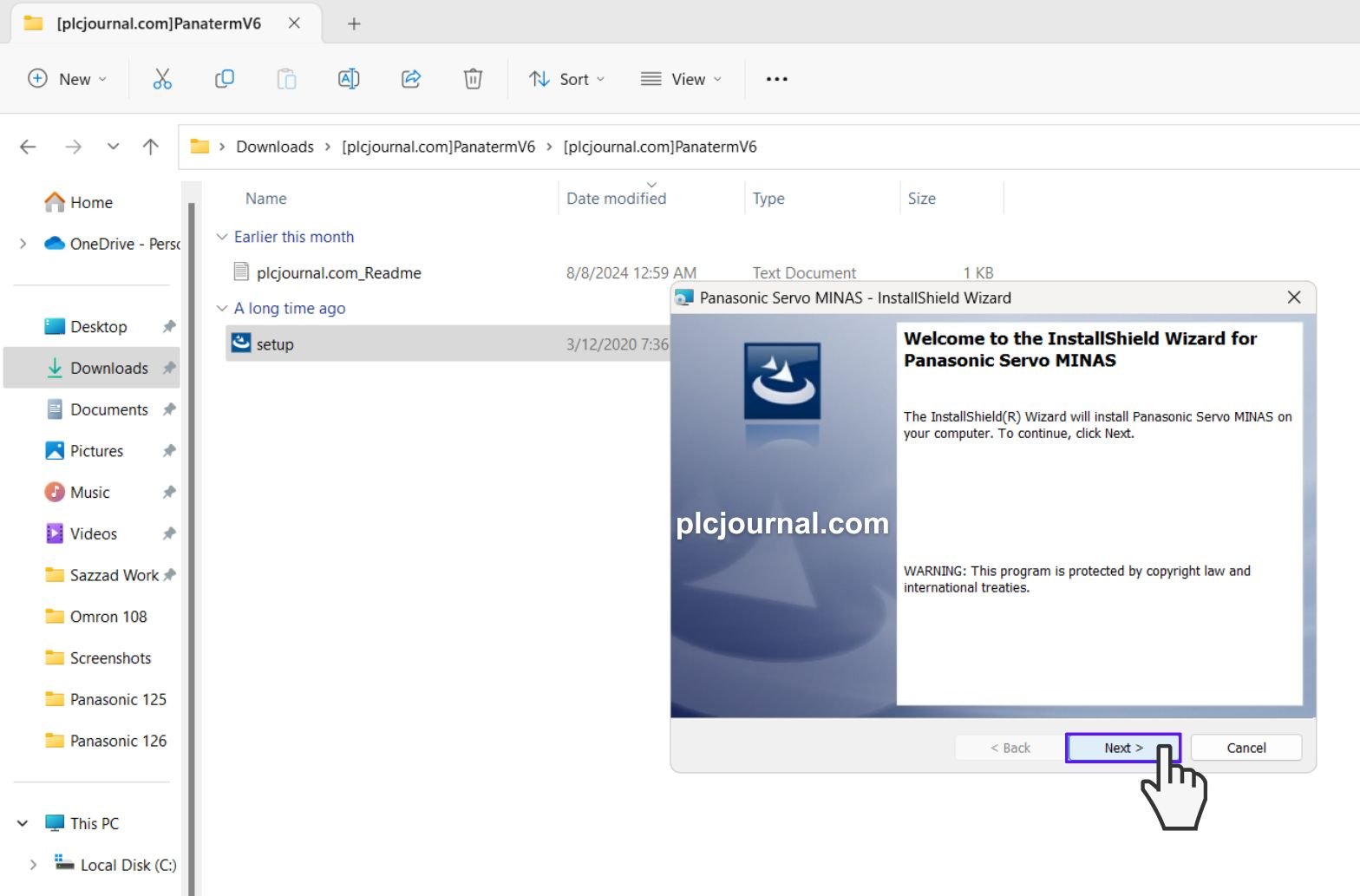

14. Click Next:

Click “Next” to move to the next step in the setup process.

15. Install Wizard Again:

You will see another wizard installation window. Click “Install” to proceed.

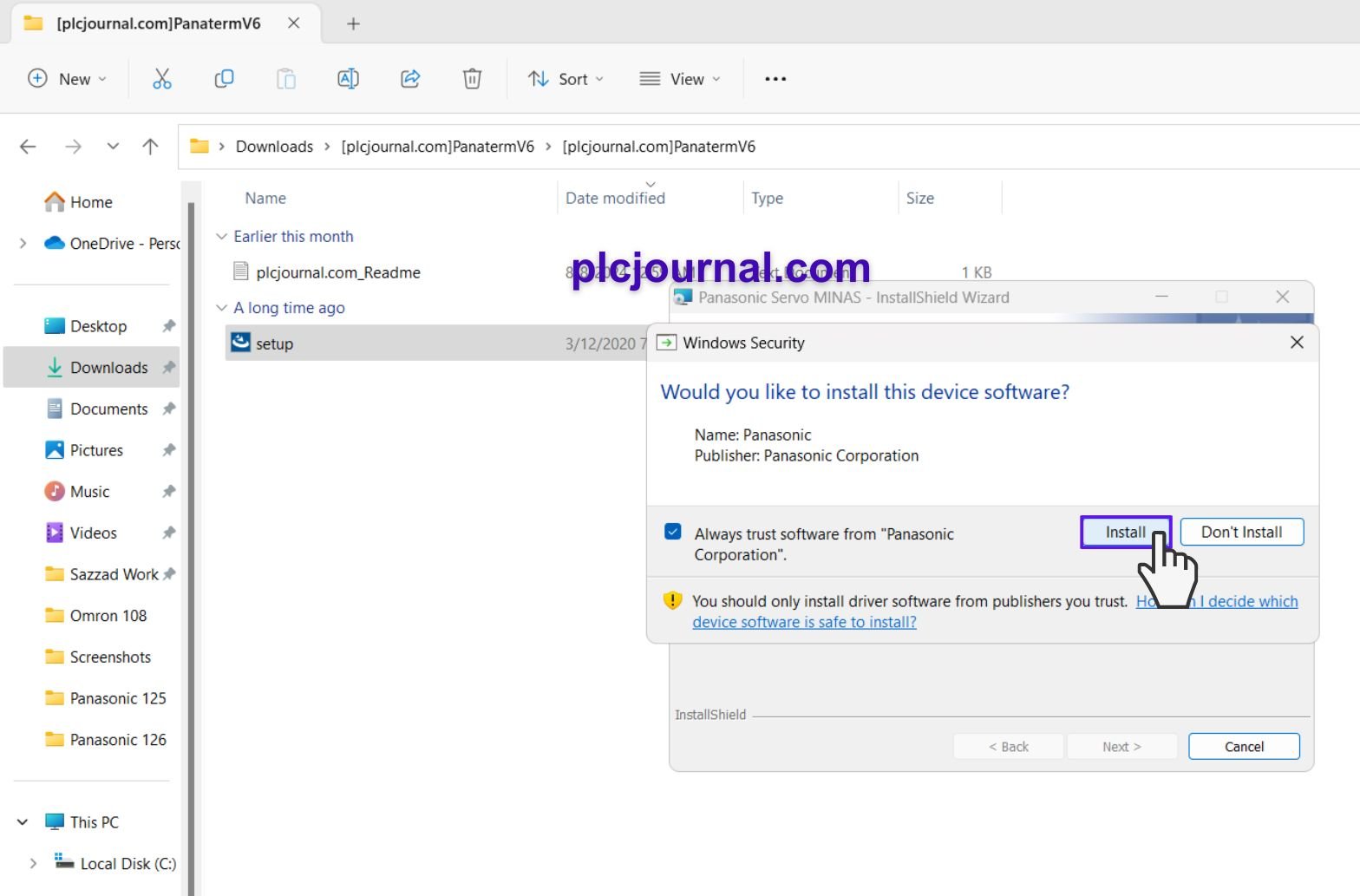

16. Handle Warning Window:

If a warning window appears, simply click “Install” to continue.

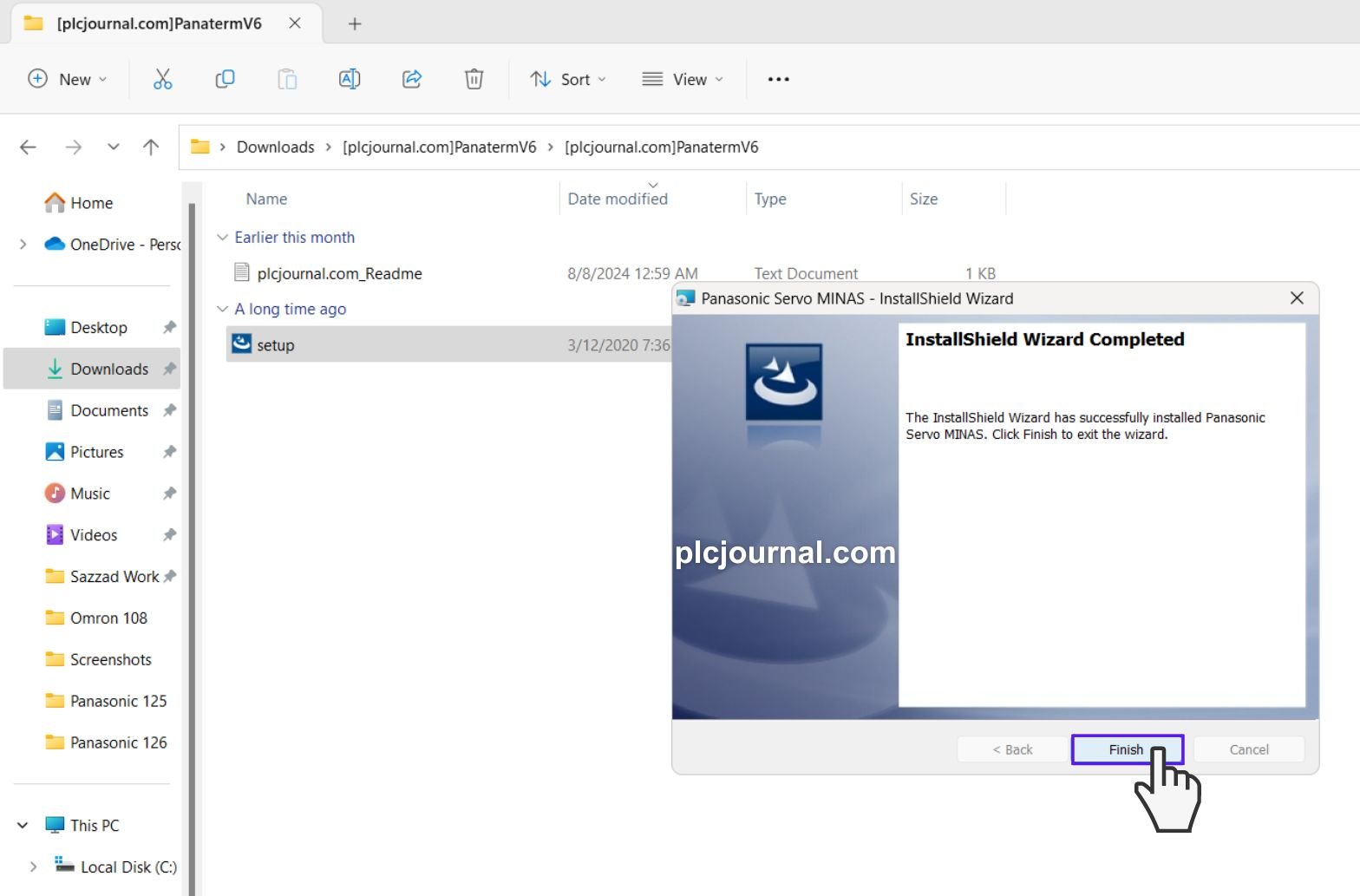

17. Finish Installation:

Your software installation is complete. Click “Finish” to finalize the process.

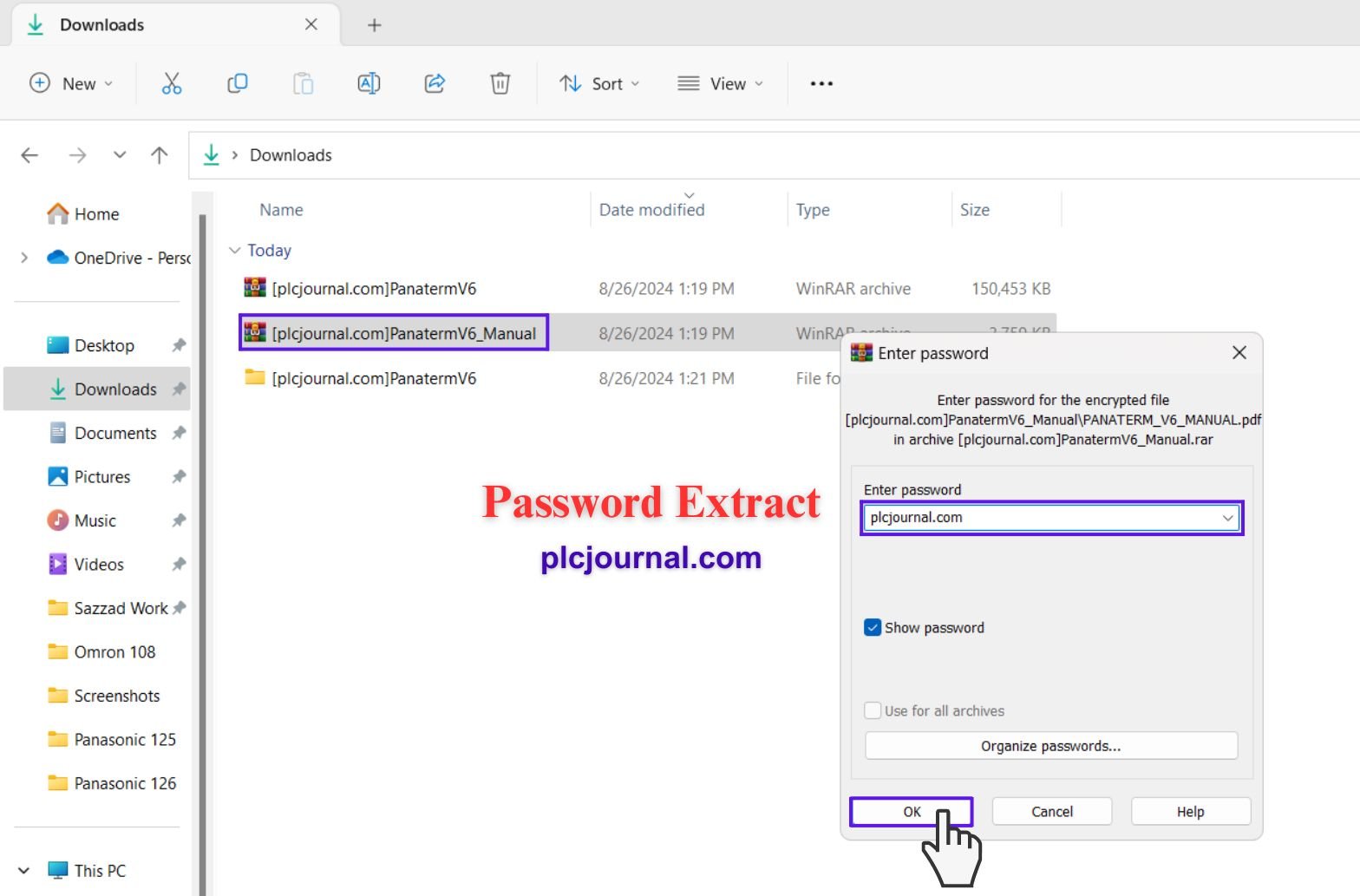

18. Extract User Manual:

Extract the user manual zip file using the password plcjournal.com.

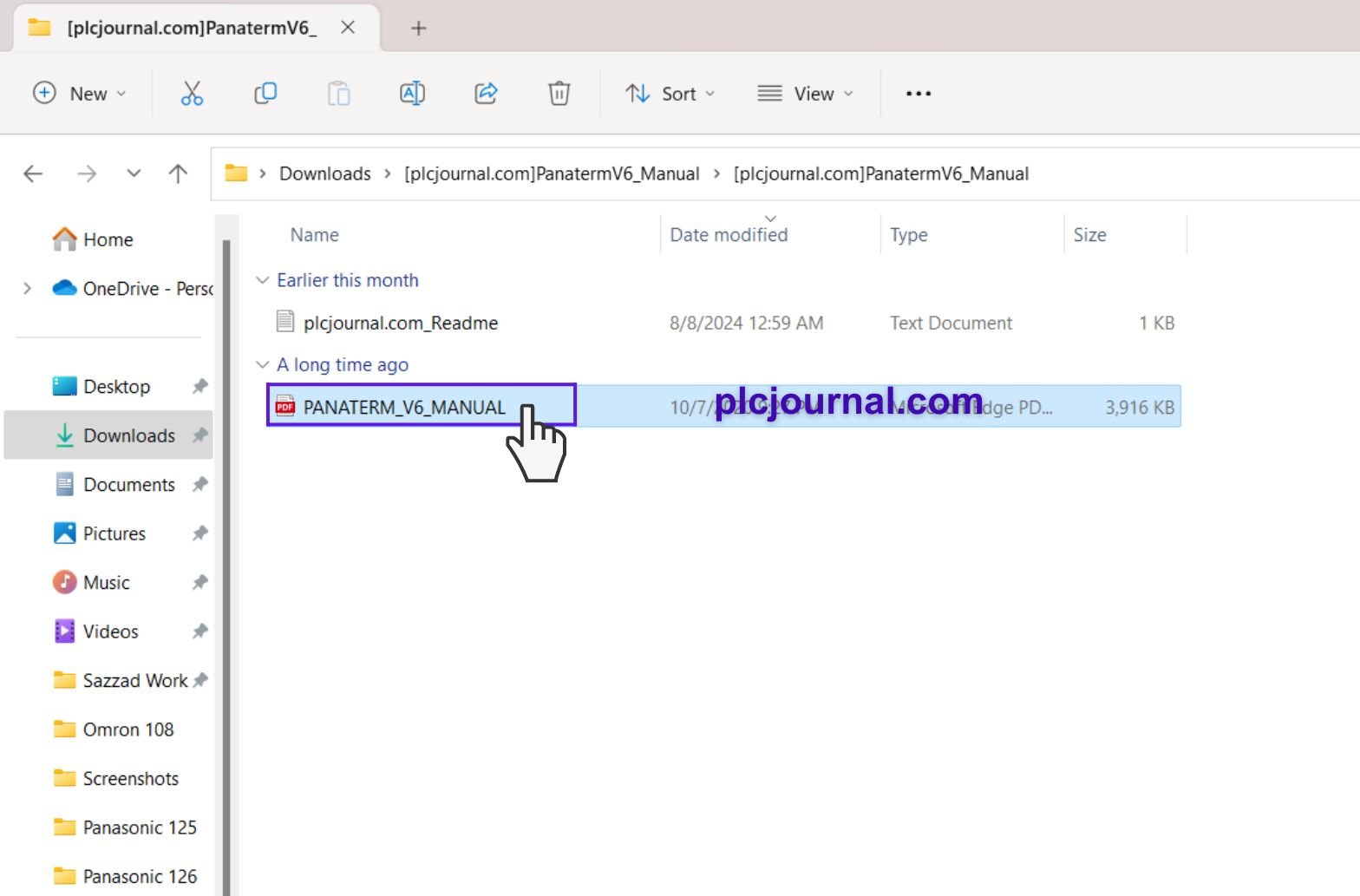

19. Access the User Manual:

Open the extracted folder, where you’ll find the user manual PDF. Refer to it if you need help.

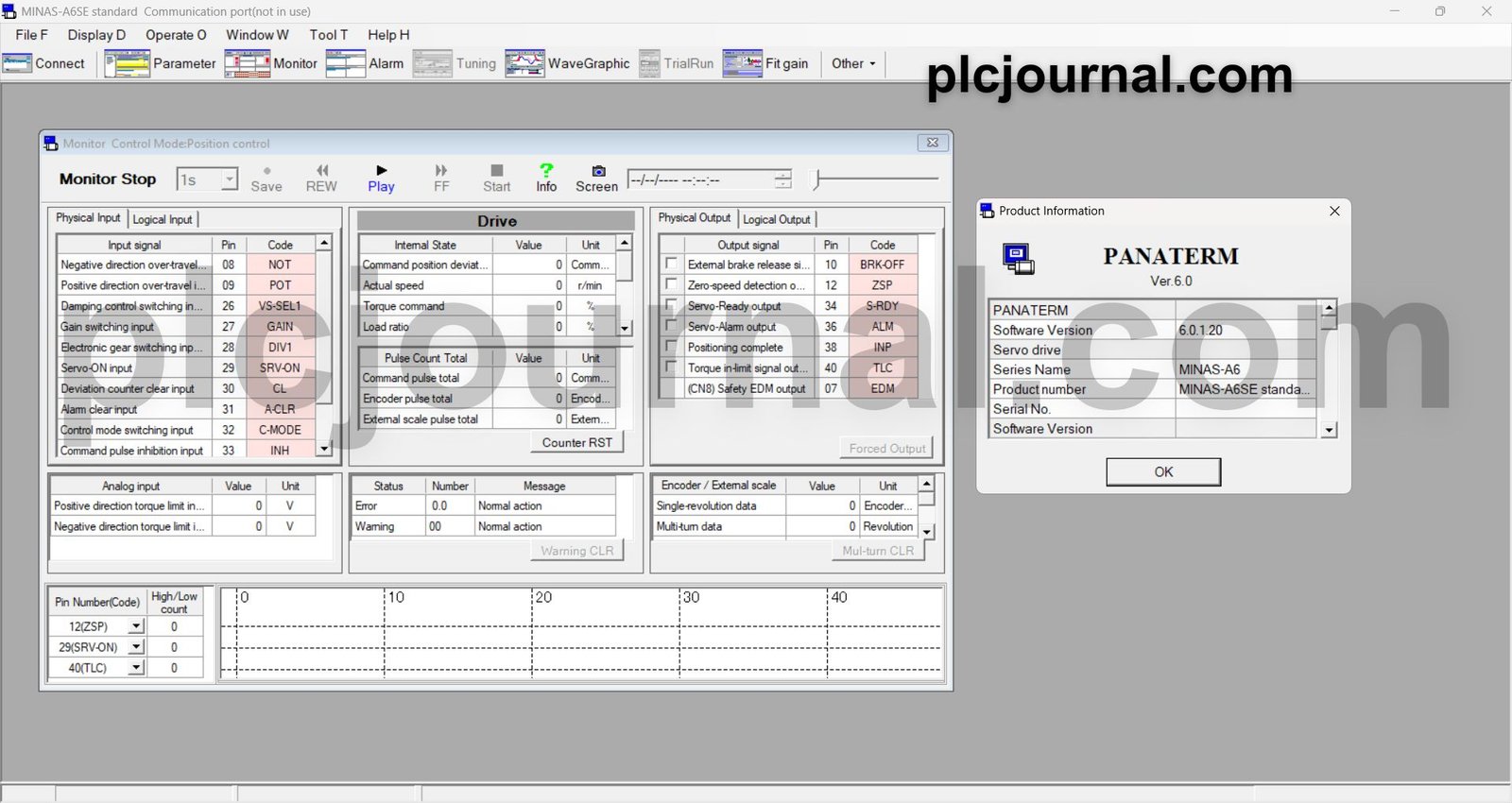

20. Software Ready:

Your software is now ready to use!
