Introduction:
Hello friends, welcome to plcjournal.com. We are going to share how to download PS501 Control Builder Plus & CoDeSys V2.3 ABB PLC Software free from our website. Our PS501 Control Builder Plus & CoDeSys V2.3 ABB PLC Software is brand new updated and easy to use on any Windows.
Detailed control system descriptions of PS501 Control Builder Plus and CoDeSys V2. 3 are two distinctive software tools which are used for programming and setting up of ABB PLCs (Programmable Logic Controllers). These software packages offer a complete environment for industrial automation – in that it allows the engineer/technician to specify, implement, simulate and control an entire PLC application.
Key Features:
User-Friendly Interface:
- In respect of PS501_Control_Builder Plus and CoDeSys V2. 3 of them have clean looks to the GUI and users are able to move between the different programming and configurations effortlessly.
- Due to the drag and drop feature and the clearly separated and categorized chapters the development is eased.
Advanced Programming Capabilities:
- It accepts several programming languages such as Ladder Logic, Function Block Diagram (FBD), and Structured Text (ST) all of which conform to the IEC 61131-3 standard.
- Such flexibility also enables users to select their preferred language depending on the application requirements needed.
Seamless Integration with ABB PLCs:
- The products involved in the present study are Control Builder Plus of Yokogawa Electric Corporation, and CoDeSys V2.3 known as the CODESYS control system. 3 are compatible with ABB PLCs enhancing their installation and functionality within the system.
- A broad range of ABB PLC models are supported, which means that, irrespective of the underlying hardware, developers are presented with a coherent ABB Intelli Studio environment.
Simulation and Testing:
- Since PLC applications can be tested before they are run on actual PLC’s, users can make use of the inherent simulation capabilities.
- This feature is particularly important as it enables developers to test out programs before they are actually implemented, and in the process, minimize the occurrence of mishaps once the programs are up and running.
Comprehensive Library of Pre-Built Functions:
- We compared two software tools that should be familiar to most PLC programmers: RSLogix 5000 and GOLOGIX Bootcamp Lesson 2: Copying Objects Between Projects.
- This accelerates the development process, and they are always within arm’s reach in terms of popularity.
Robust Security Features:
- As cybersecurity becomes more paramount with the growth of the industrial applications of SCADA and Control Systems, PS501 Control Builder Plus and CoDeSys V2. 3 including optimum security measures.
- These features facilitate the act of preserving your PLC applications from risks such as piracy.
Regular Updates and Support:
- ABB also releases new updates of the software on a frequent basis to provide the users with the best features and api security.
- Technical support is offered to cater for installation problems, program problems and to provide help in the utilization of all the features offered by the software.
Benefits of Using PS501 Control Builder Plus & CoDeSys V2.3:
- Increased Efficiency: Some of the benefits it offers include ease of use and the strengths of its functions that increase efficiency and minimize developmental hours.
- Flexibility: Multiple programming languages and ABB PLC models available for the use allow to design the solutions suitable for individual needs.
- Reliability: To enhance the quality, ABB unveils constant updates that make it possible for users to access reliable software for industrial automation.
- Enhanced Security: This means that the integrated security helps you secure your applications in an effective way to enable it to become resilient to any cyber threats.
How to Free Download of this Software
First, try to download it from ABB official website.
- Visit the Official ABB Website: Start by going to the ABB official website.
- Search for this software: Use the search bar to find this software.
- Select the Download Option: Once you navigate to the product page, look for the download section.
- Fill Out Necessary Information: You may be required to create an account or provide information such as email and company details.
- Accept the Terms and Conditions: Make sure to read through and accept the licensing agreements or terms before downloading.
- Download the Software: Click the download link and save the file to your computer.
- Install the Application: Follow the installation instructions provided to complete the setup.
If you fail to download the software in any way, then free download the software by clicking on the download button below this post.
How to Install PS501 Control Builder Plus & CoDeSys V2.3 ABB PLC Software (with Images):

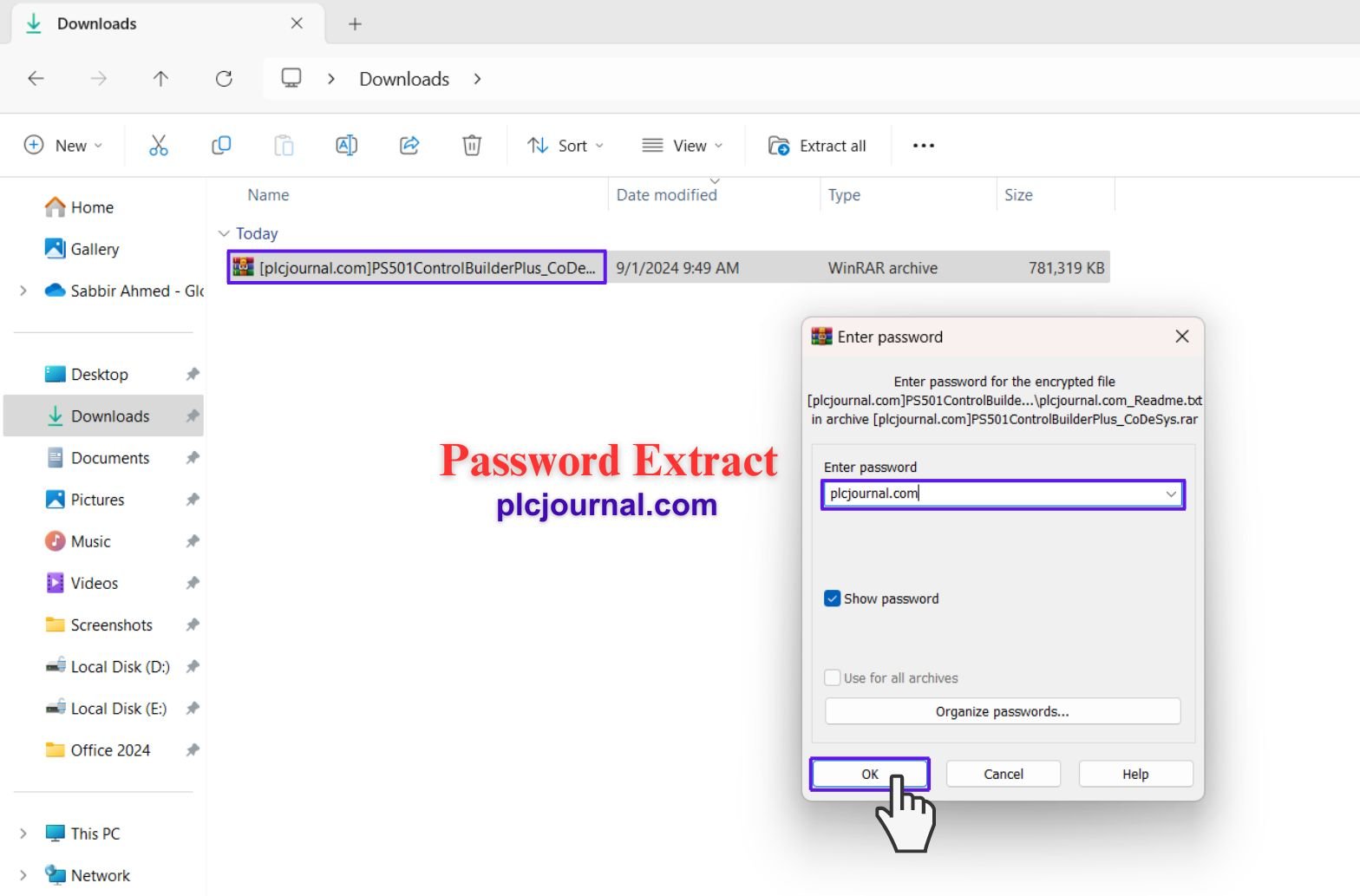

1. Download the Software: Download the software from Google Drive. Use the password “plcjournal.com” to unlock it.
2. Navigate to the Installation Folder:
- Double-click the “ABB_ControlBuilderPlus_CoDeSysV2x” folder to open it.

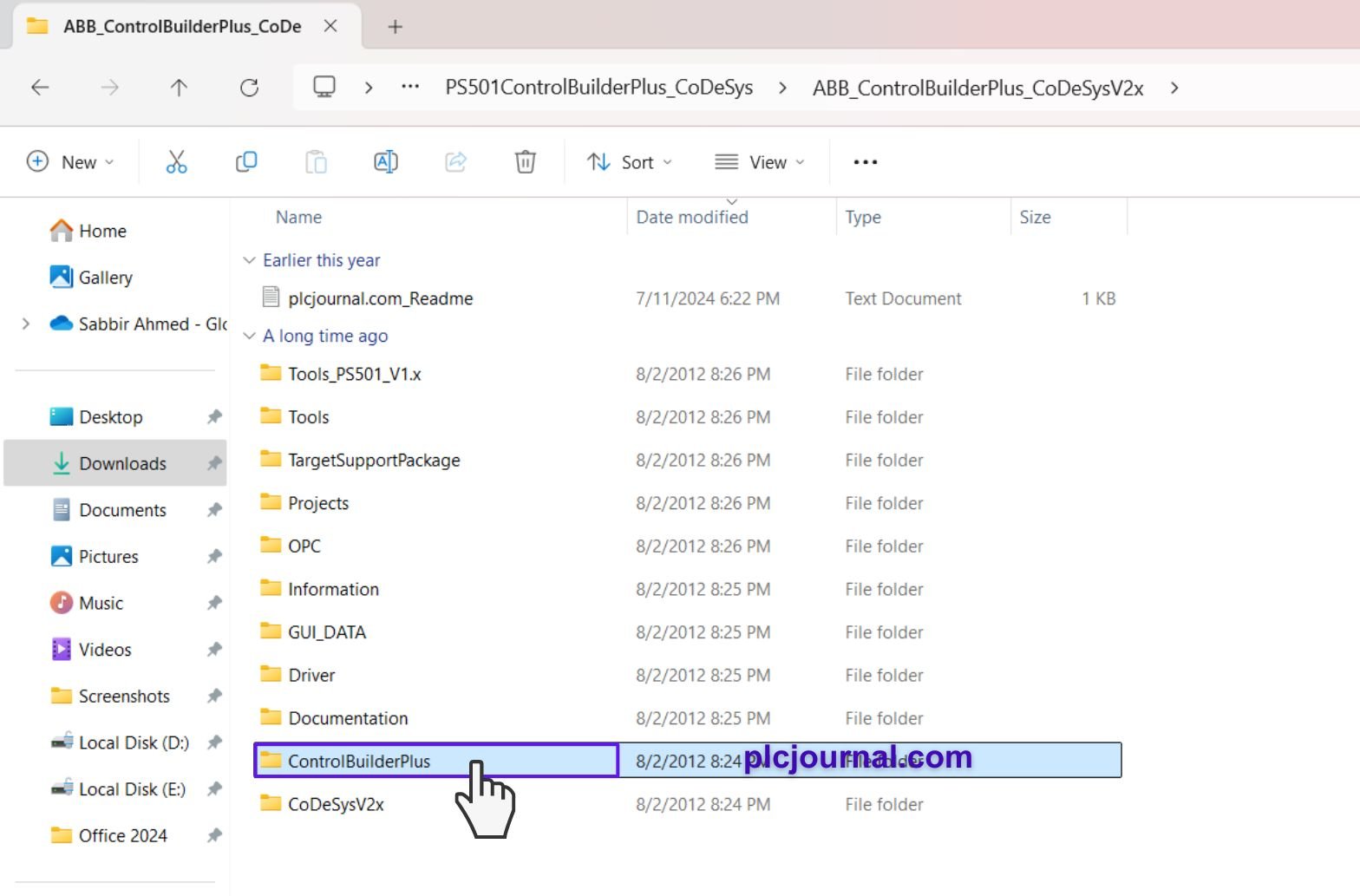

3. Open the Installation Folder:
- Inside, double-click the “ControlBuilderPlus” folder.
4. Start the Installation:
- Double-click the “Setup” file to begin.
- Choose your language and click “OK.
5. Wait for the Installation Window:
- Once the installation starts, a window will appear. This might take some time.

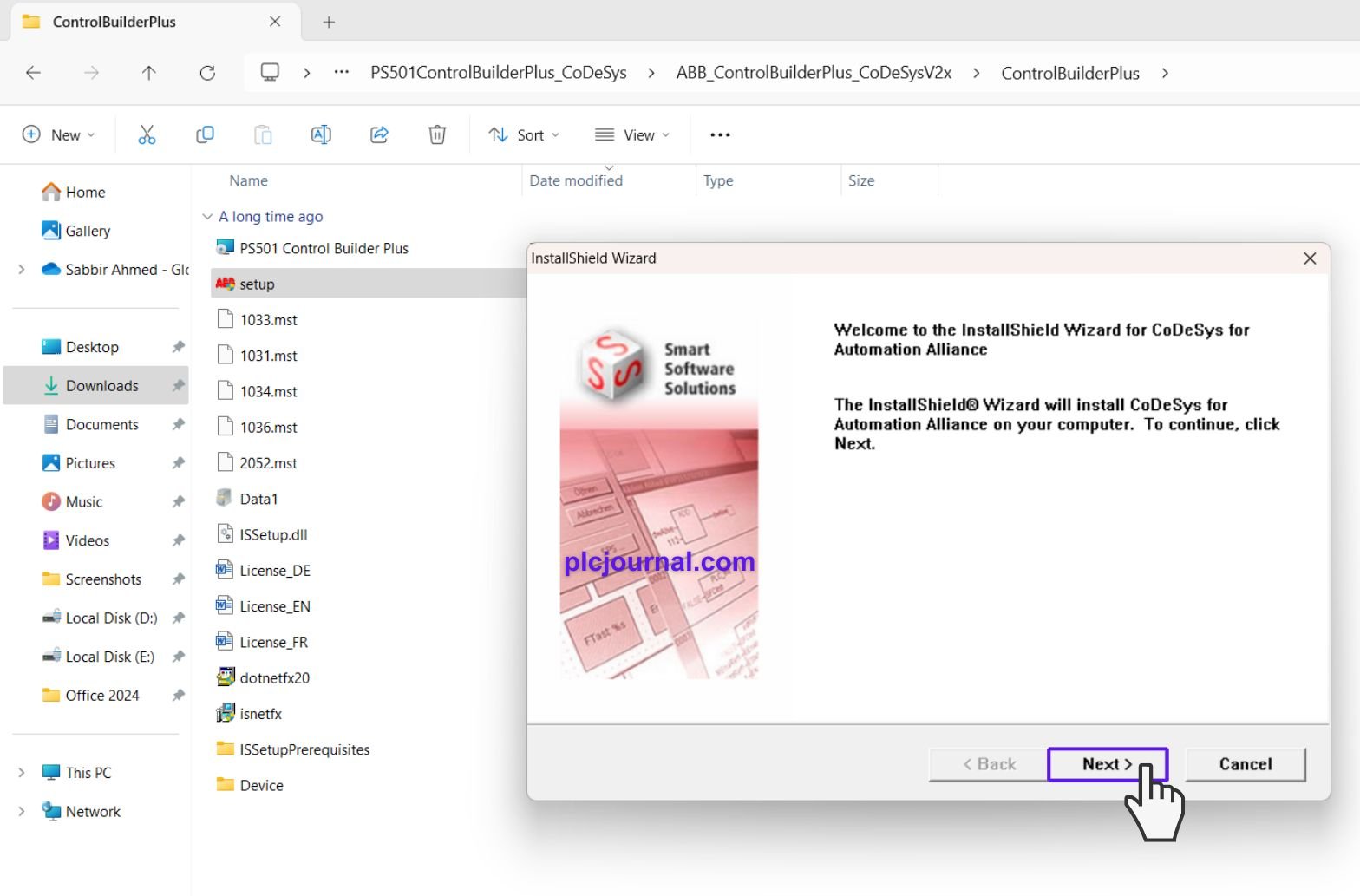

6. Begin CoDeSys V2.3 Installation:
- To move on to the next installation phase, click “Next”.

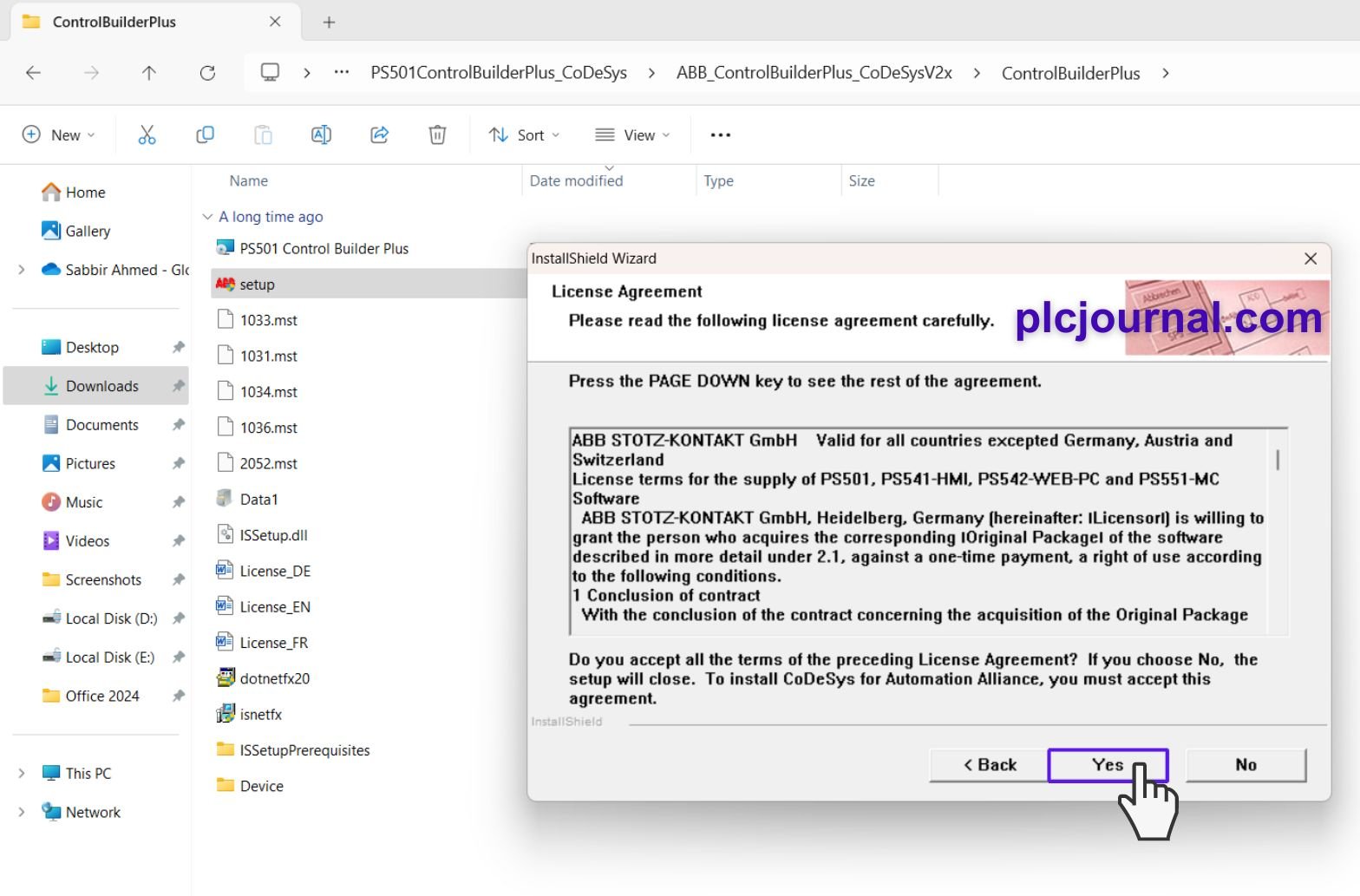

7. Accept the License Agreement:
- Select “Yes” to accept the terms of the software license.
8. Select the Installation Folder:
- Choose the folder where you want to install the software, then click “Next.”

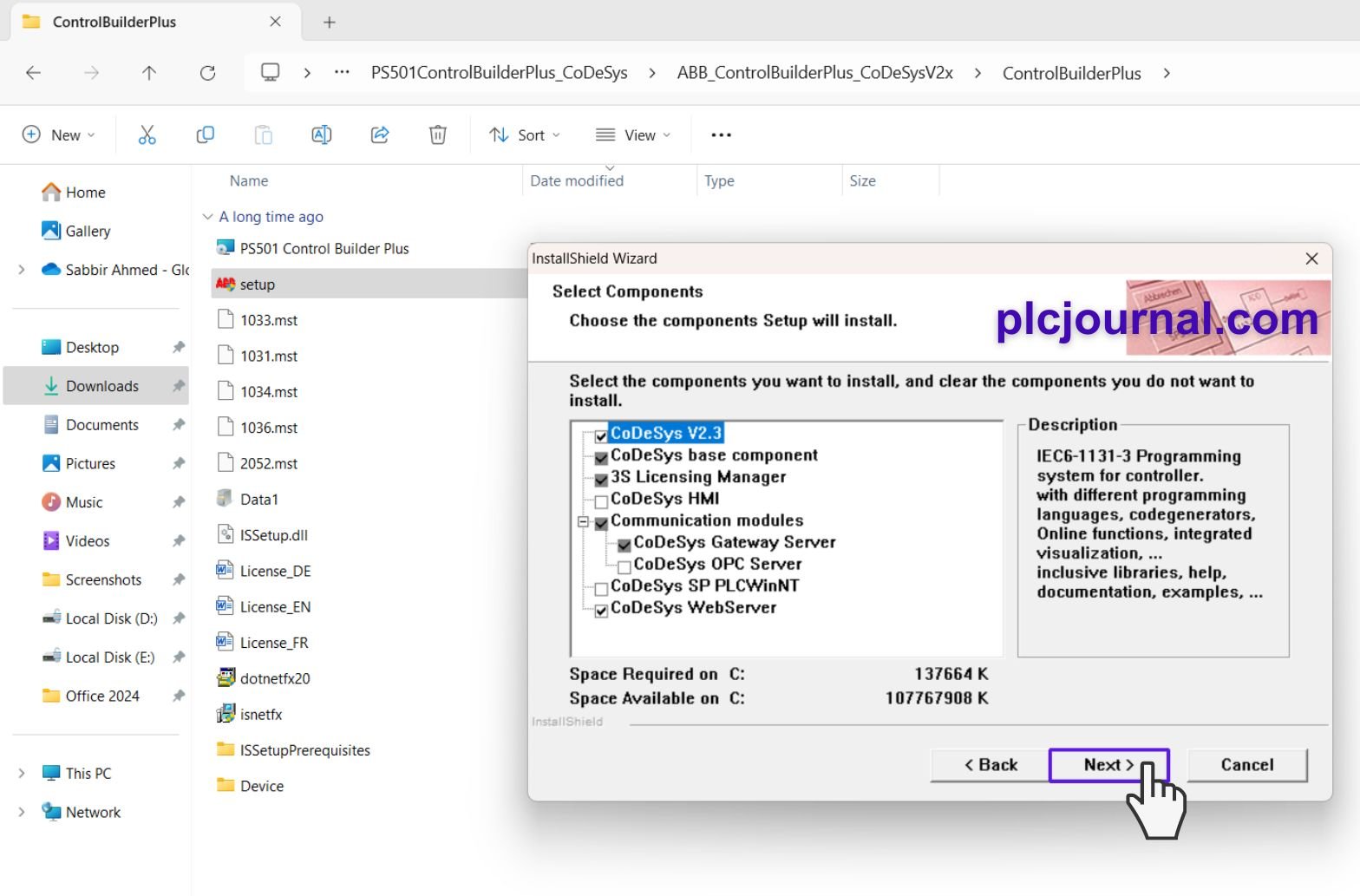

9. Choose Components:
- After making your selections for the components to install, click “Next.”

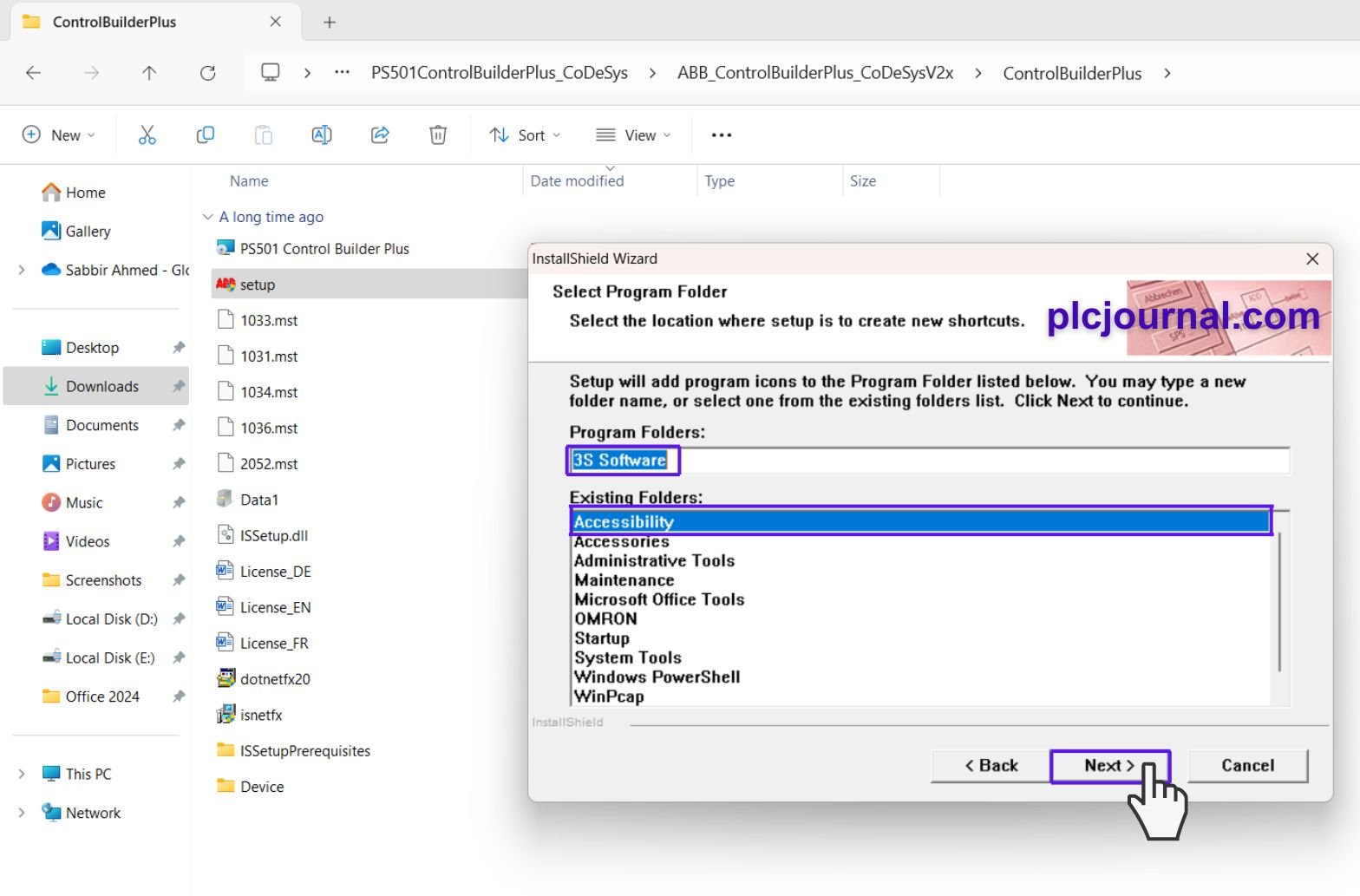

10. Select the Installation Folder Again:
- If prompted, choose an existing folder for installation, then click “Next.”
11. Review Settings:
- Check all the settings to make sure everything is correct, then click “Next.”

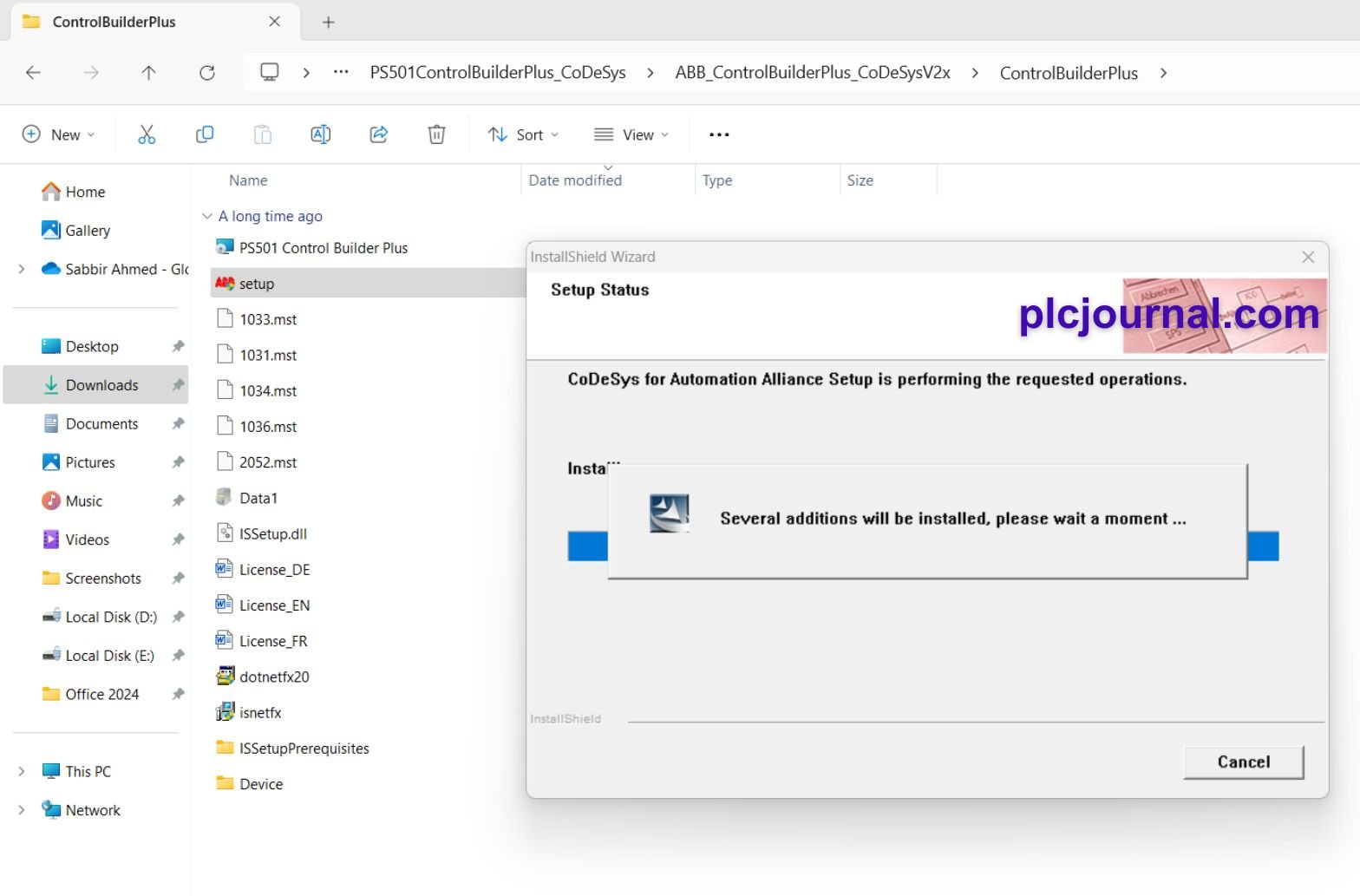

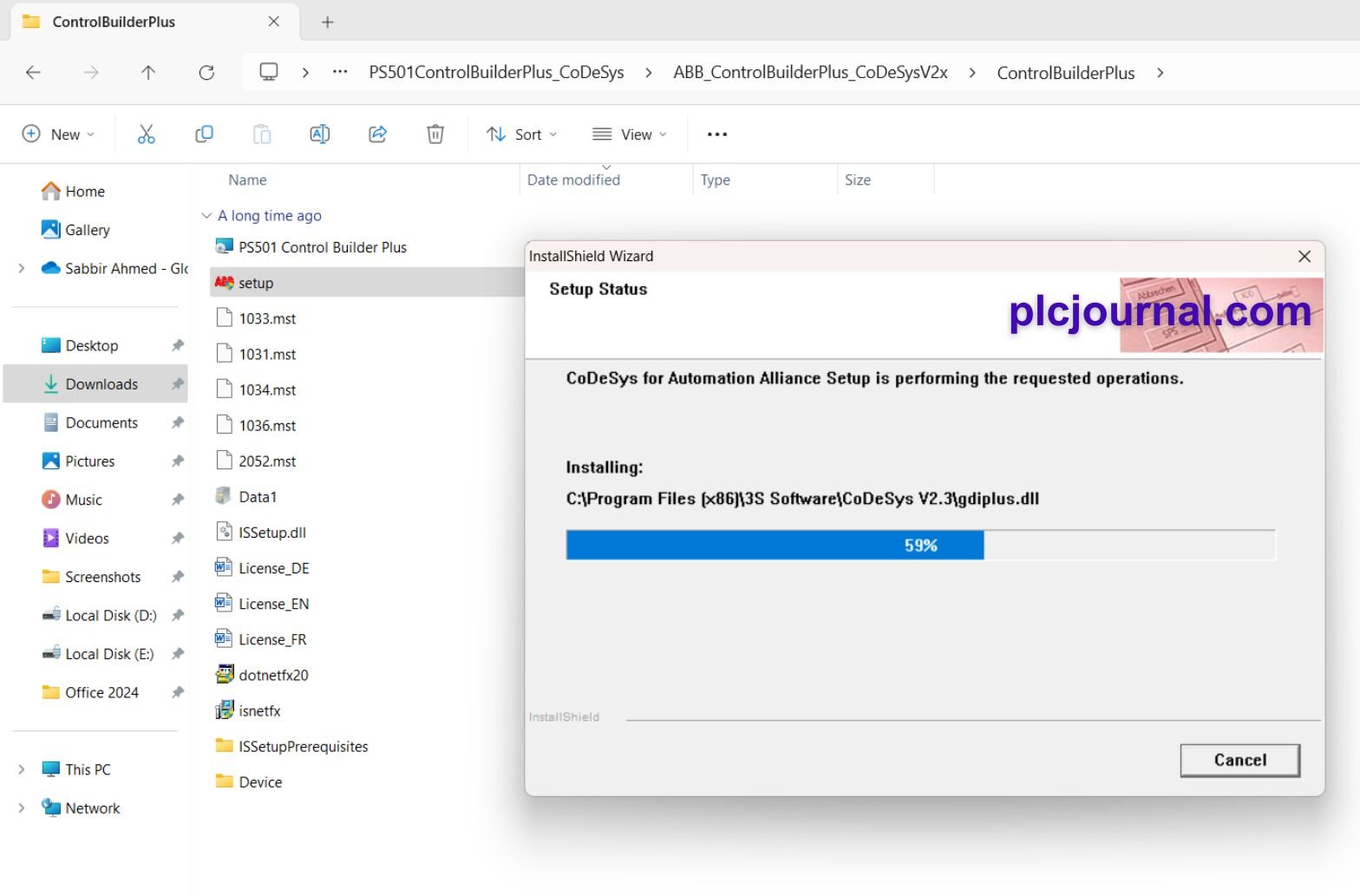

12. Complete CoDeSys V2.3 Installation:
- Wait for CoDeSys V2.3 to finish installing. This may take some time.
- A window will appear once the installation is complete.

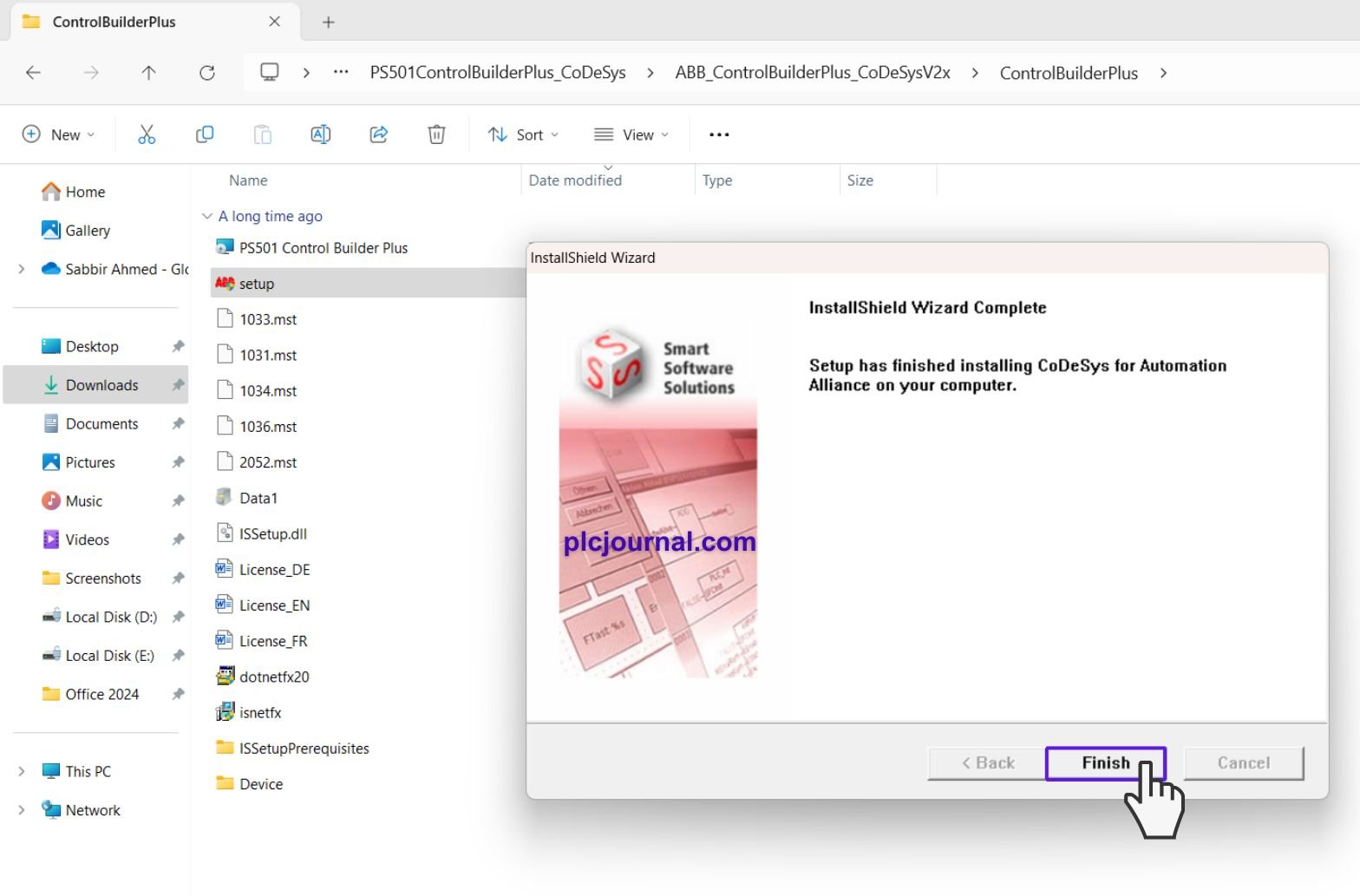

13. Finish CoDeSys V2.3 Installation:
- Click “Finish” to complete the CoDeSys V2.3 installation.

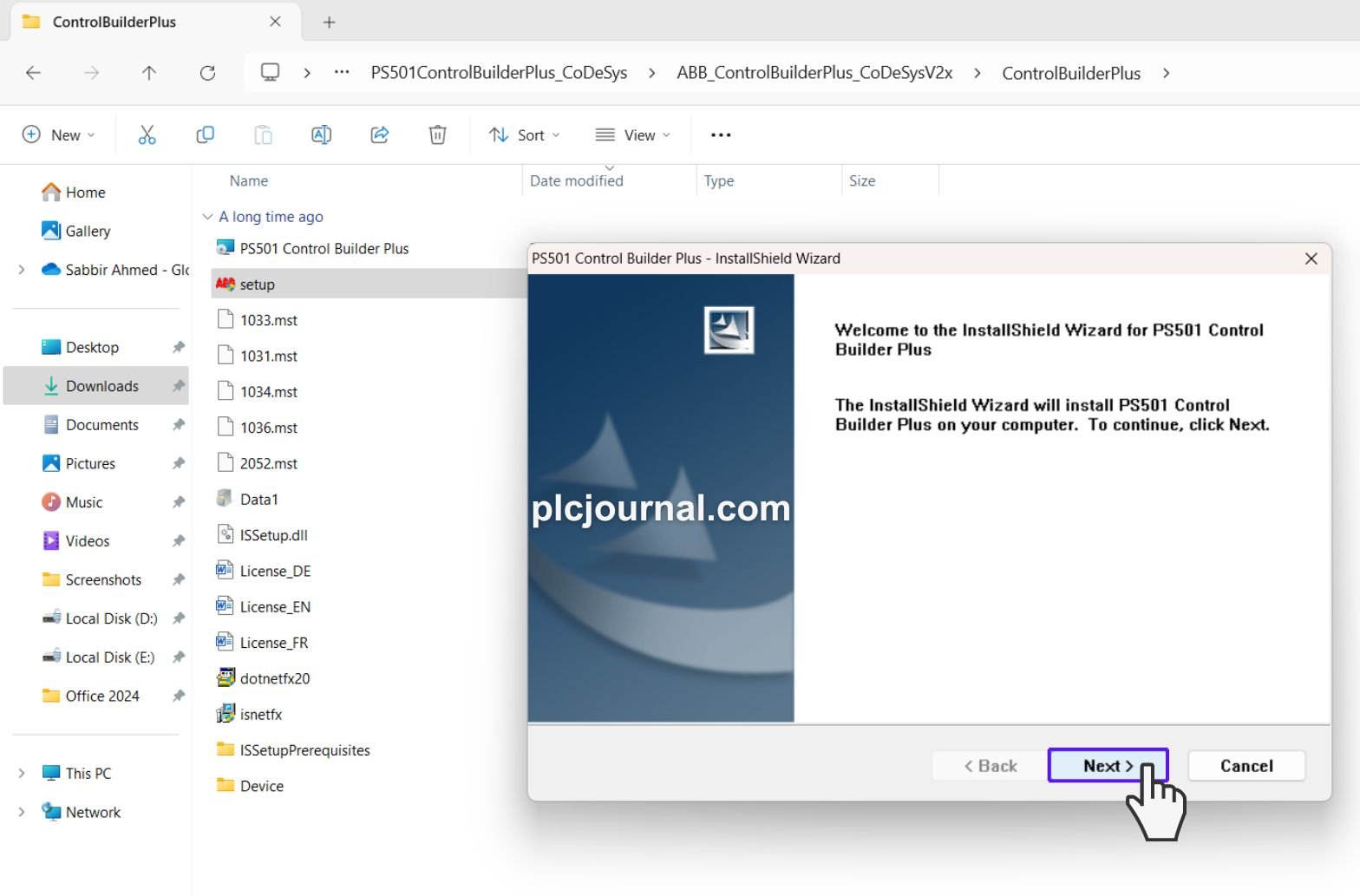

14. Start PS501 Control Builder Plus Installation:
- Begin the installation of “PS501 Control Builder Plus” by clicking “Next.”

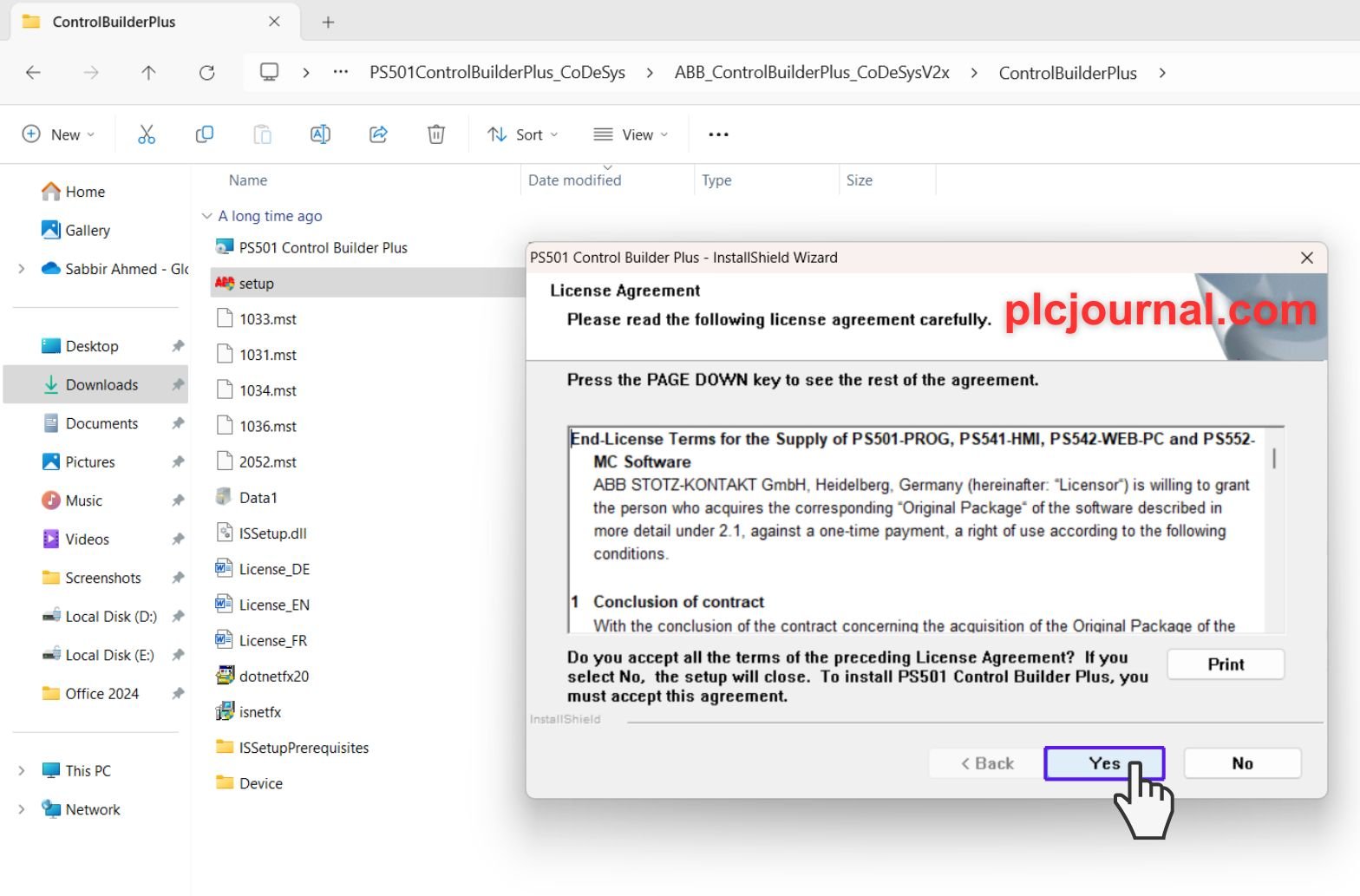

15. Accept the License Agreement Again:
- Select “Yes” to accept the terms of the software license.

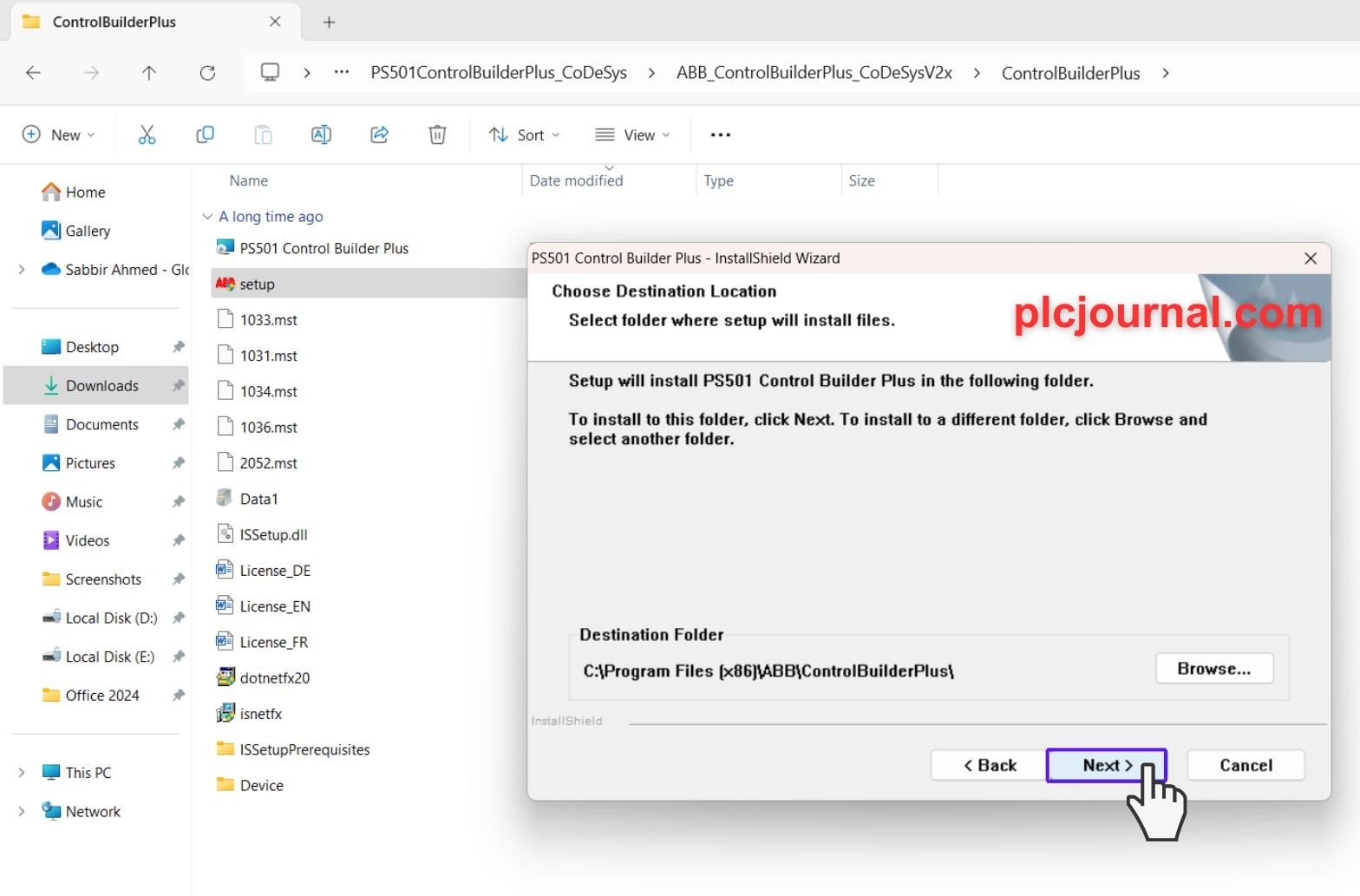

16. Select the Installation Folder for PS501:
- Choose the folder where you want to install PS501 Control Builder Plus, then click “Next.”

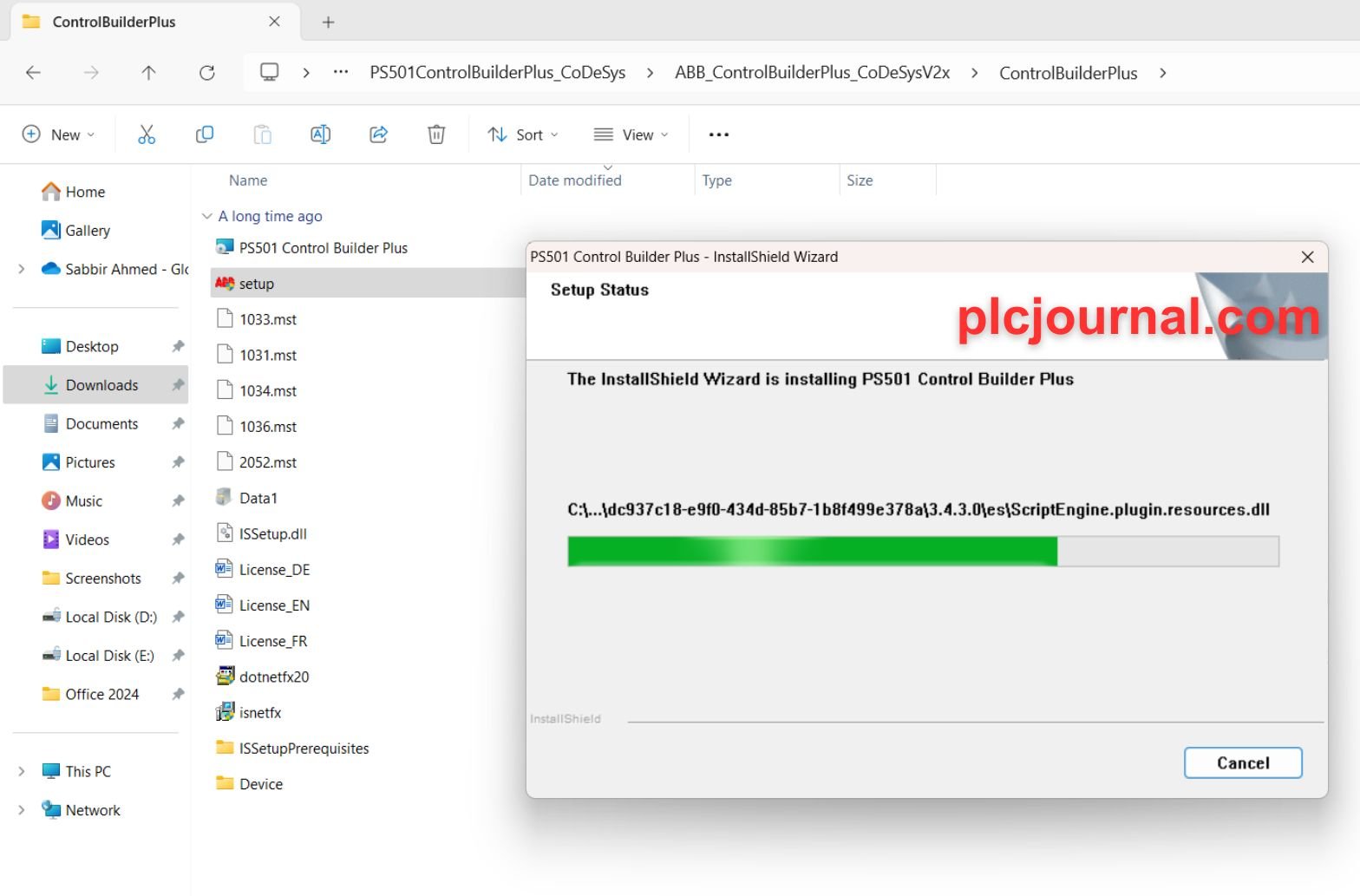

17. Wait for the Installation to Complete:
- The installation will take some time to finish. A window will indicate when it’s done.
18. Finish PS501 Control Builder Plus Installation:
- Click “Finish” to complete the installation of PS501 Control Builder Plus.

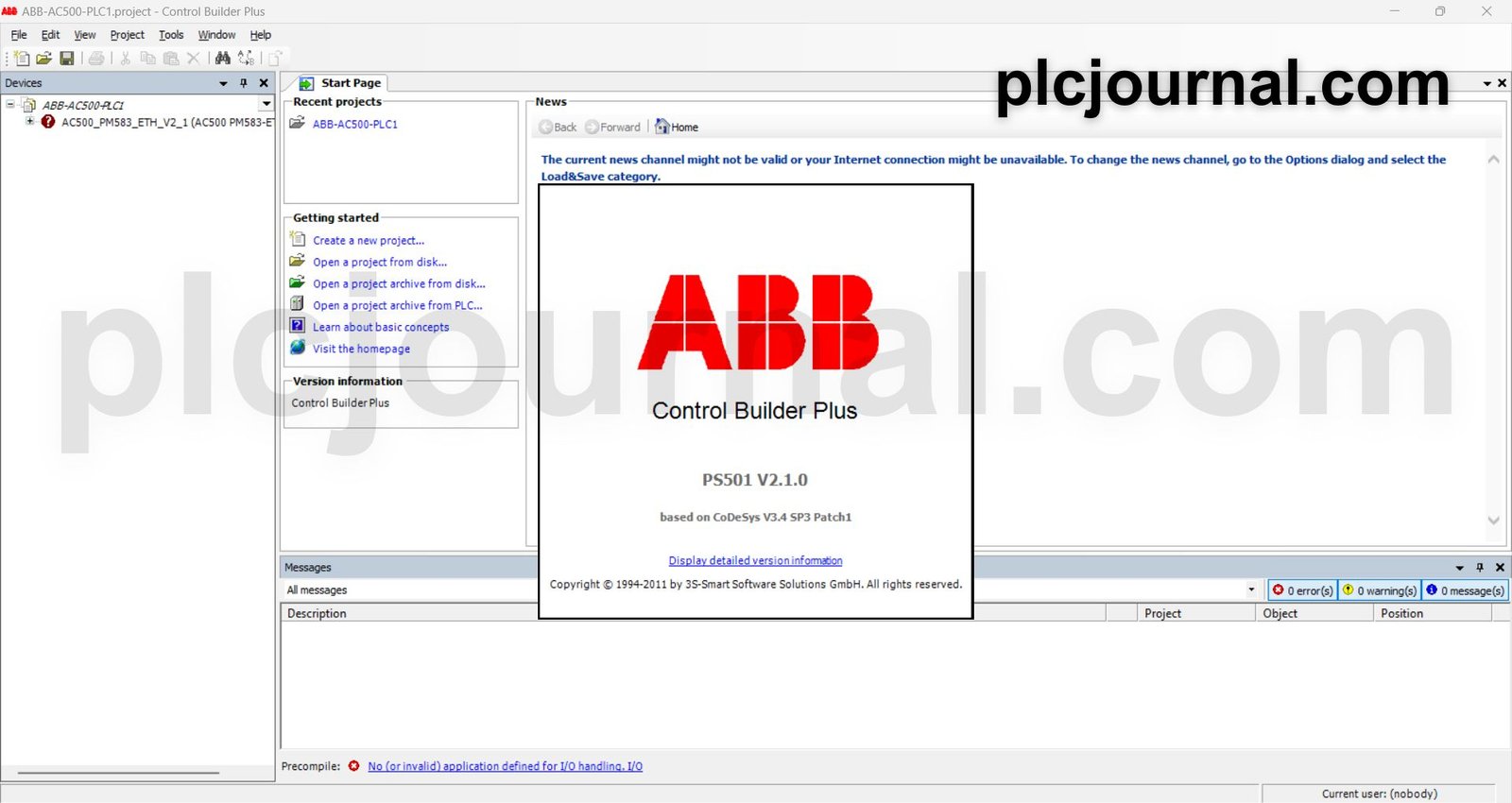

19. You’re Ready to Go:
- The software is now fully installed and ready to use.
Note: If you need any help, please download the user manual. You can find instructions on how to open the software file there. The password to open the file is “plcjournal.com”. Read the user manual, and hopefully, it will solve your problem.
Download Details:
Free Download PS501 Control Builder Plus & CoDeSys V2.3 ABB PLC Software (Google Drive)
PS501 Control Builder Plus & CoDeSys.rar
PS501 Control Builder Plus Manual.rar
Extraction Password: plcjournal.com
