The Free Download NT-Series Support Tool HMI OMRON Software 2024 is a specialized tool developed by Omron for configuring and programming Human-Machine Interfaces (HMIs) in the NT Series. This software is essential for those involved in industrial automation, providing comprehensive solutions for monitoring and controlling various processes.
Key Features and Information:
1 Purpose:
- The NT-Series Support Tool is designed to create, modify, and manage the graphical user interface (GUI) of Omron’s NT-series HMI devices. These interfaces are vital in industrial automation, allowing operators to monitor and control processes efficiently.
2 Features:
- Screen Creation and Editing: Design custom screens with buttons, lamps, text displays, and other interactive elements to control and monitor connected devices like PLCs (Programmable Logic Controllers).
3 Project Management: Manage multiple HMI projects, enabling seamless work on different screens and interfaces within the same project.
4 Simulation: Test and simulate HMI screens on your computer before deploying them to the actual hardware, ensuring everything works as intended.
5 Communication Settings: Configure communication protocols and settings between the HMI and PLC, ensuring smooth data exchange.
6 System Requirements:
6.1 Compatible with various versions of Windows, including:
- Microsoft Windows XP and Windows Vista
- Microsoft Windows 7, Windows 8/8.1, and Windows 10
6.2 Make sure to check compatibility with newer operating systems like Windows 11.
7 Installation:
- The installation process is straightforward, involving the selection of components, choosing installation folders, and may require a system restart.
8 User Access:
- After installation, you can quickly access the software through the “Recently Added Software” section in the Windows Start menu, especially on Windows 11.
Detailed Step-by-Step Installation Guide:
Follow these instructions to install the NT-Series Support Tool HMI OMRON Software:
Step:

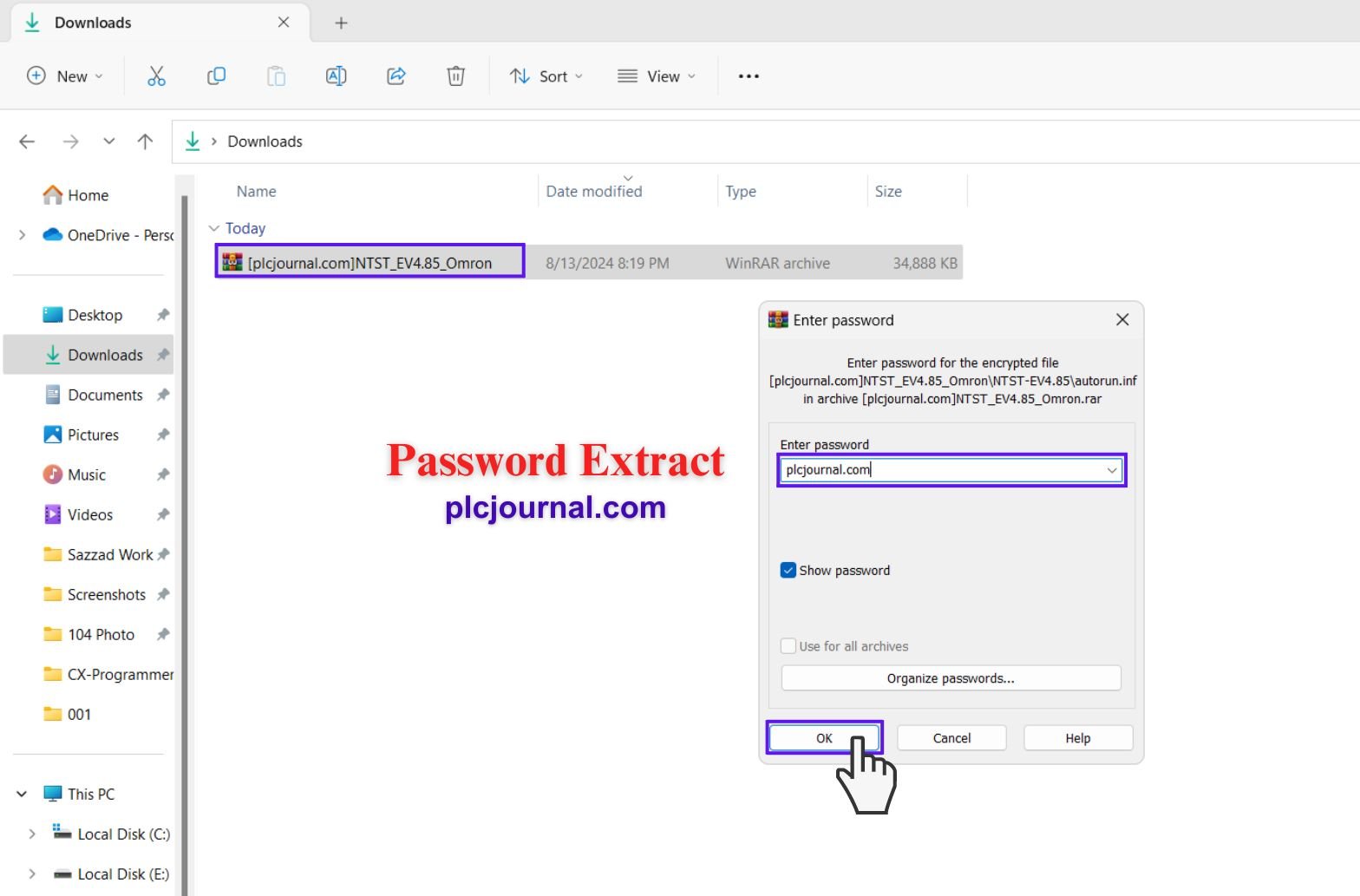

1 Download the file from Google Drive, then unlock the zip file using the password: plcjournal.com, and click OK.

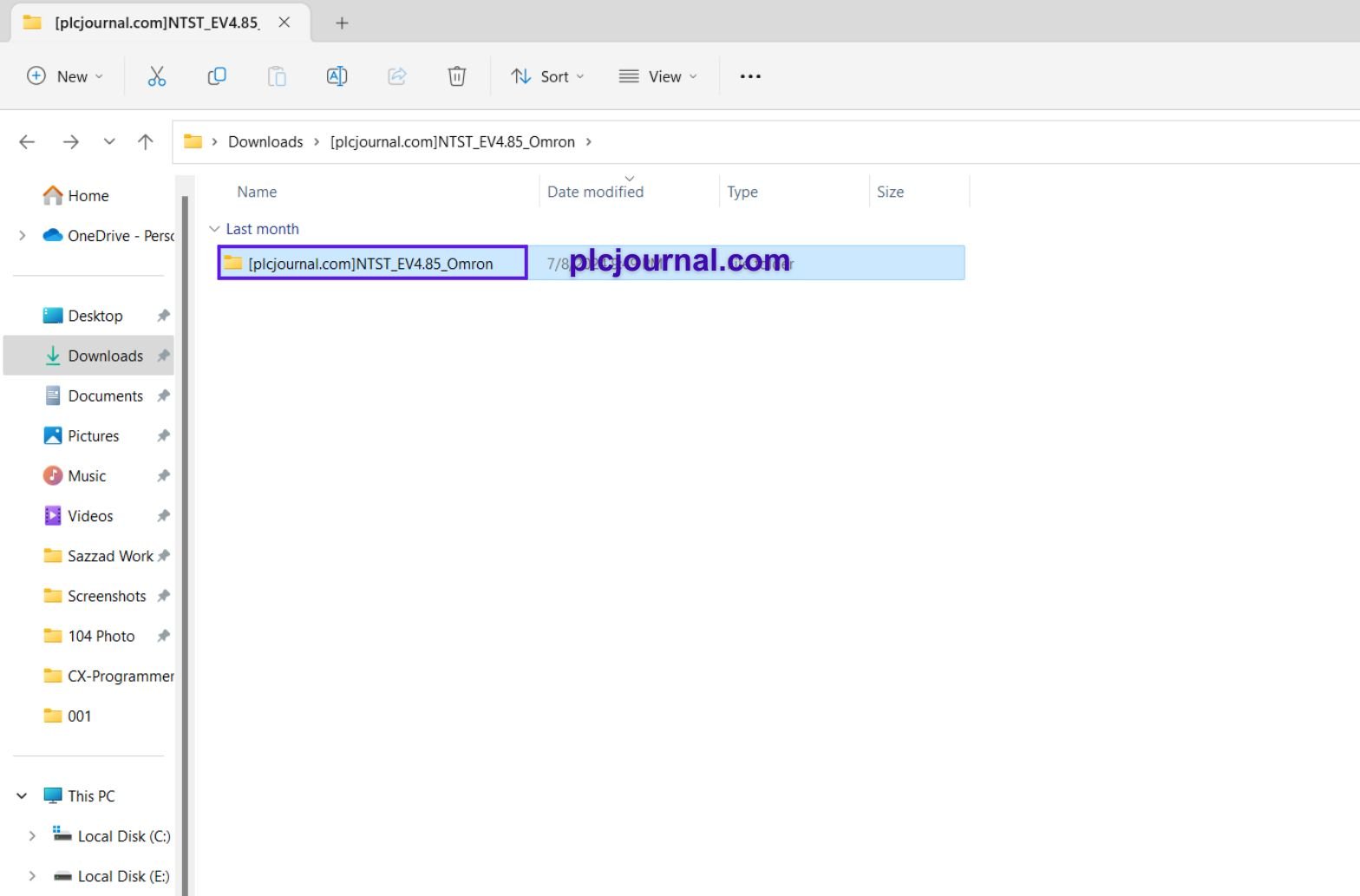

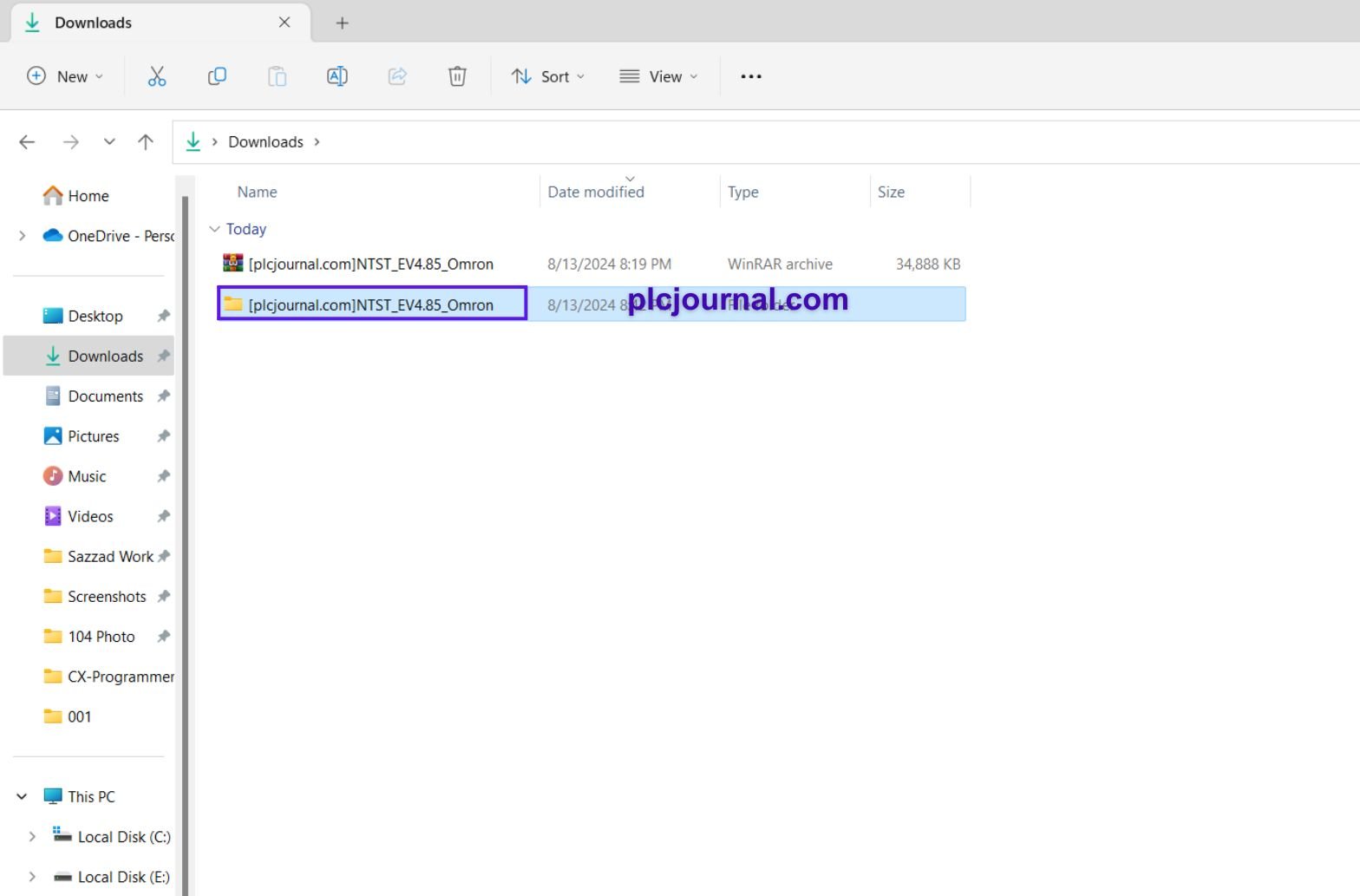

2: Double-click on the “Software” folder to proceed.
3: Double-click the “Software” folder again.

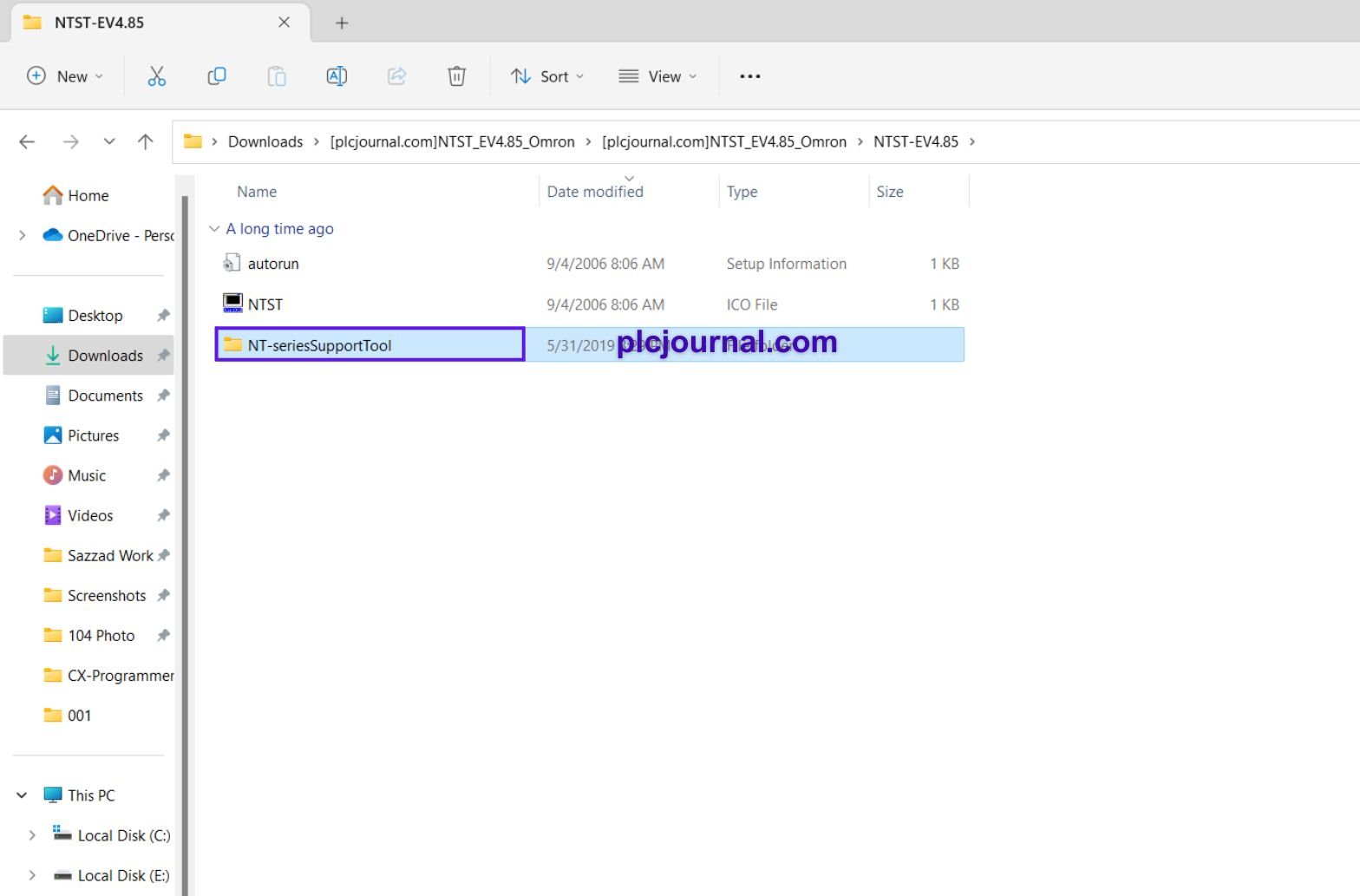

4: Double-click the “NT-Series Support Tool” folder.
5: A window will appear to start the installation process.
6: Click “Next” to continue as the installation begins.
7: Enter your username and company name, then click “Next” to proceed.
8: Select the destination folder for the installation and click “Next.”
9: Choose the components you want to install. Since we are setting up everything, select all options and click “Next.”

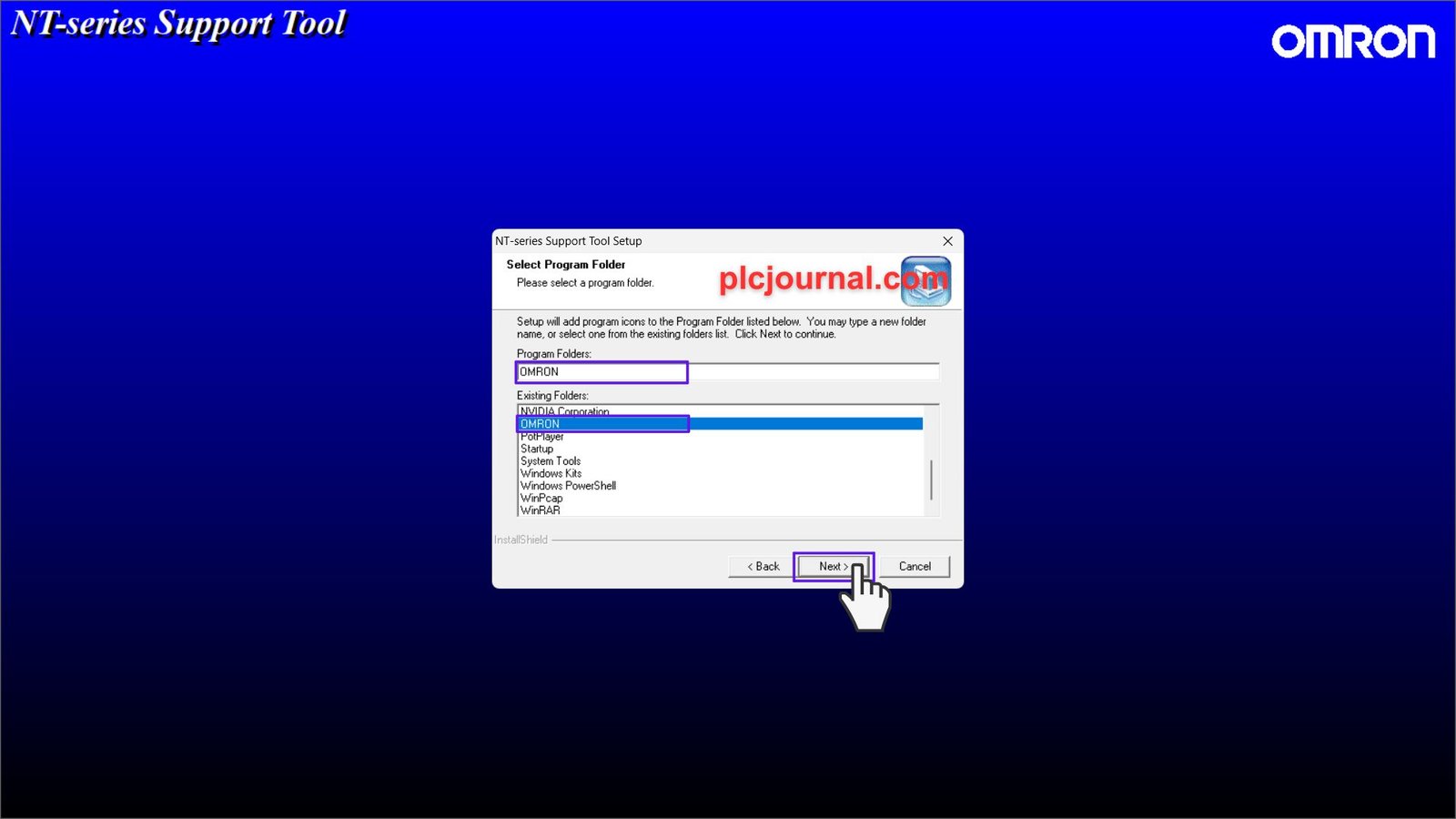

10: Select your existing folder for the software and click “Next.”
11: This step might take a few moments to complete.

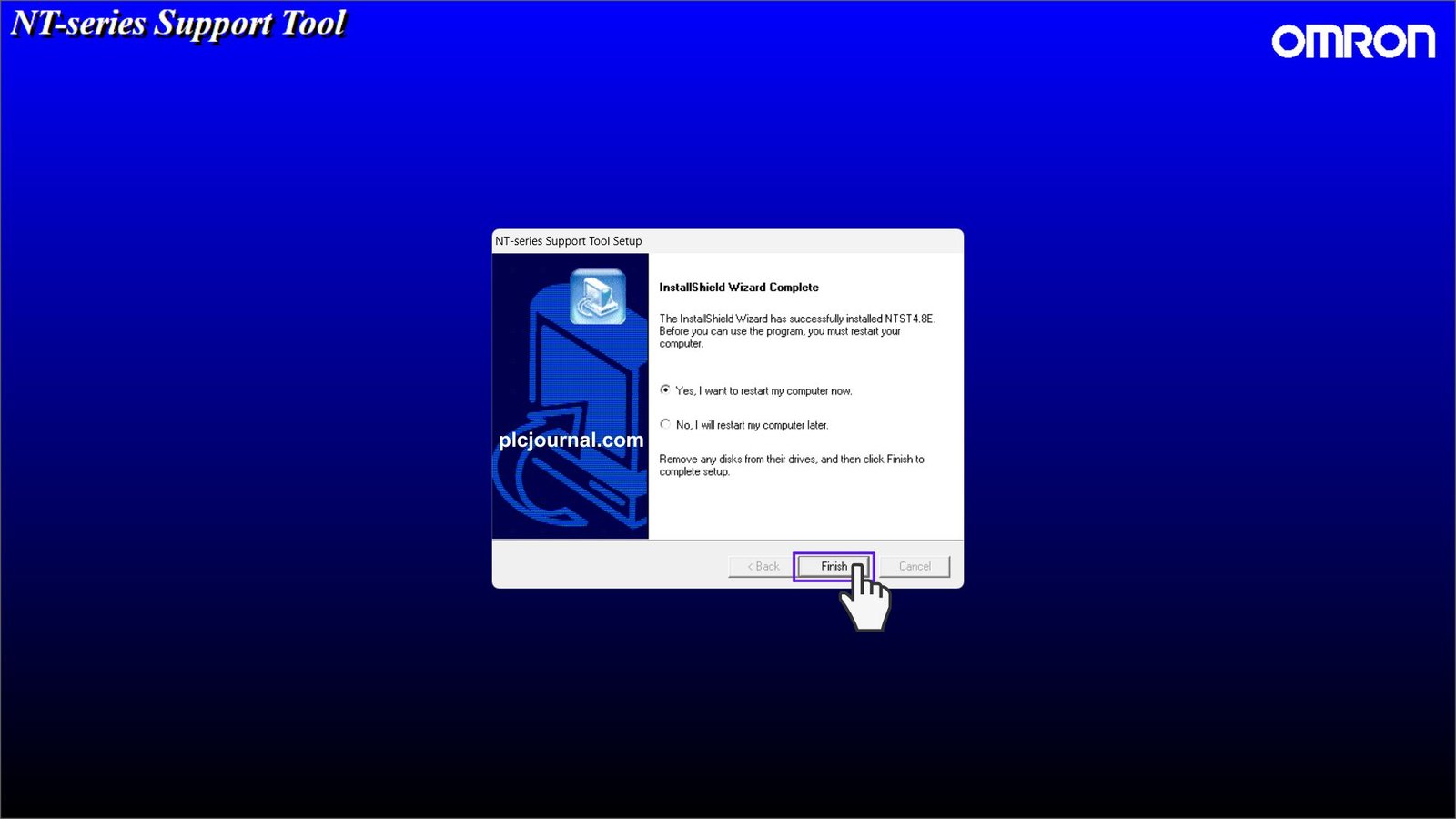

12: Once the installation is finished, choose the option to restart your device and click “Finish.”

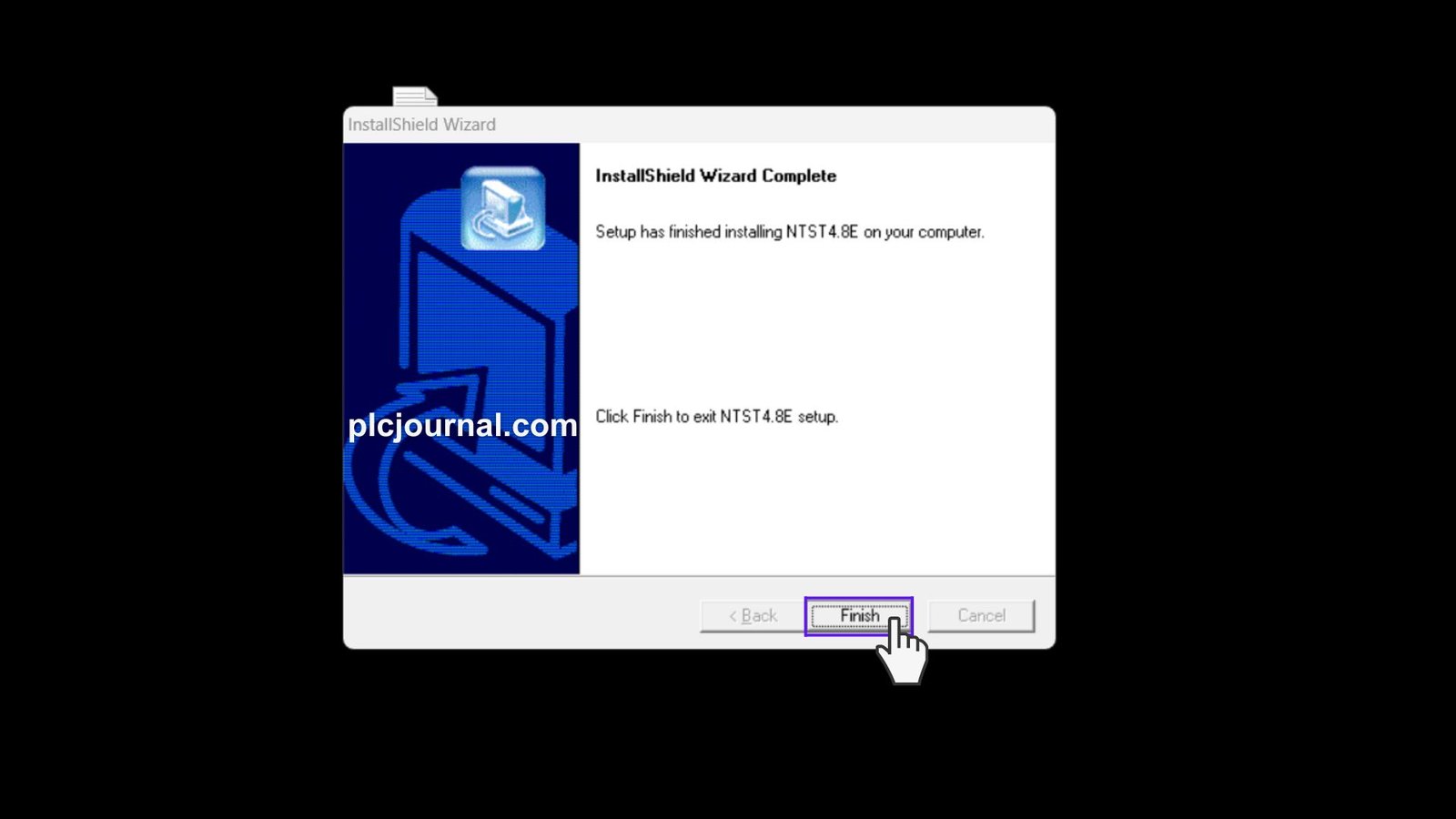

13: After restarting, a window will appear. Click “Finish” to complete the installation process.
Accessing the Software:
Windows Users:

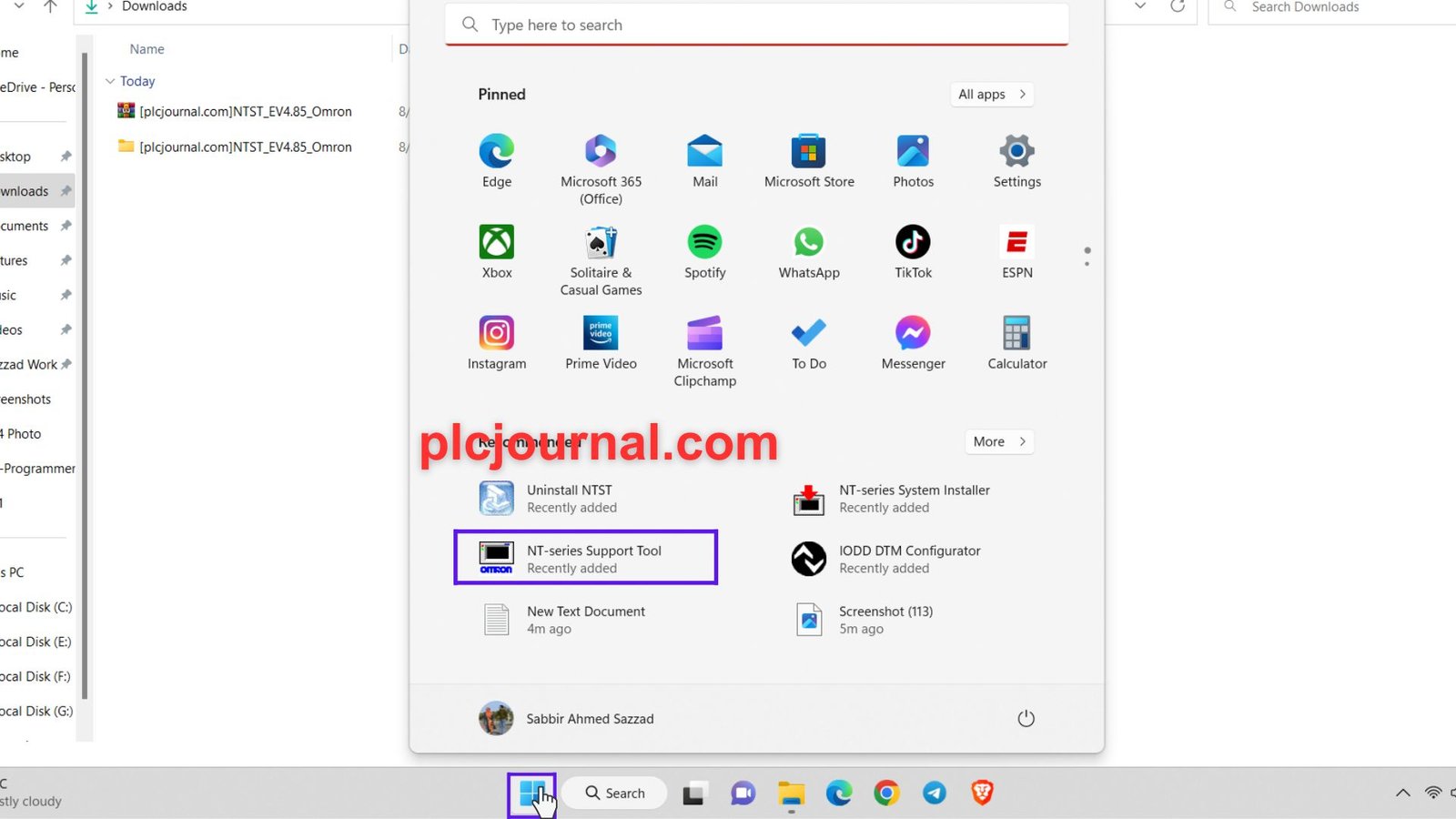

- If you’re on Windows 11, you can find the software under “Recently Added Software” in the Start menu.

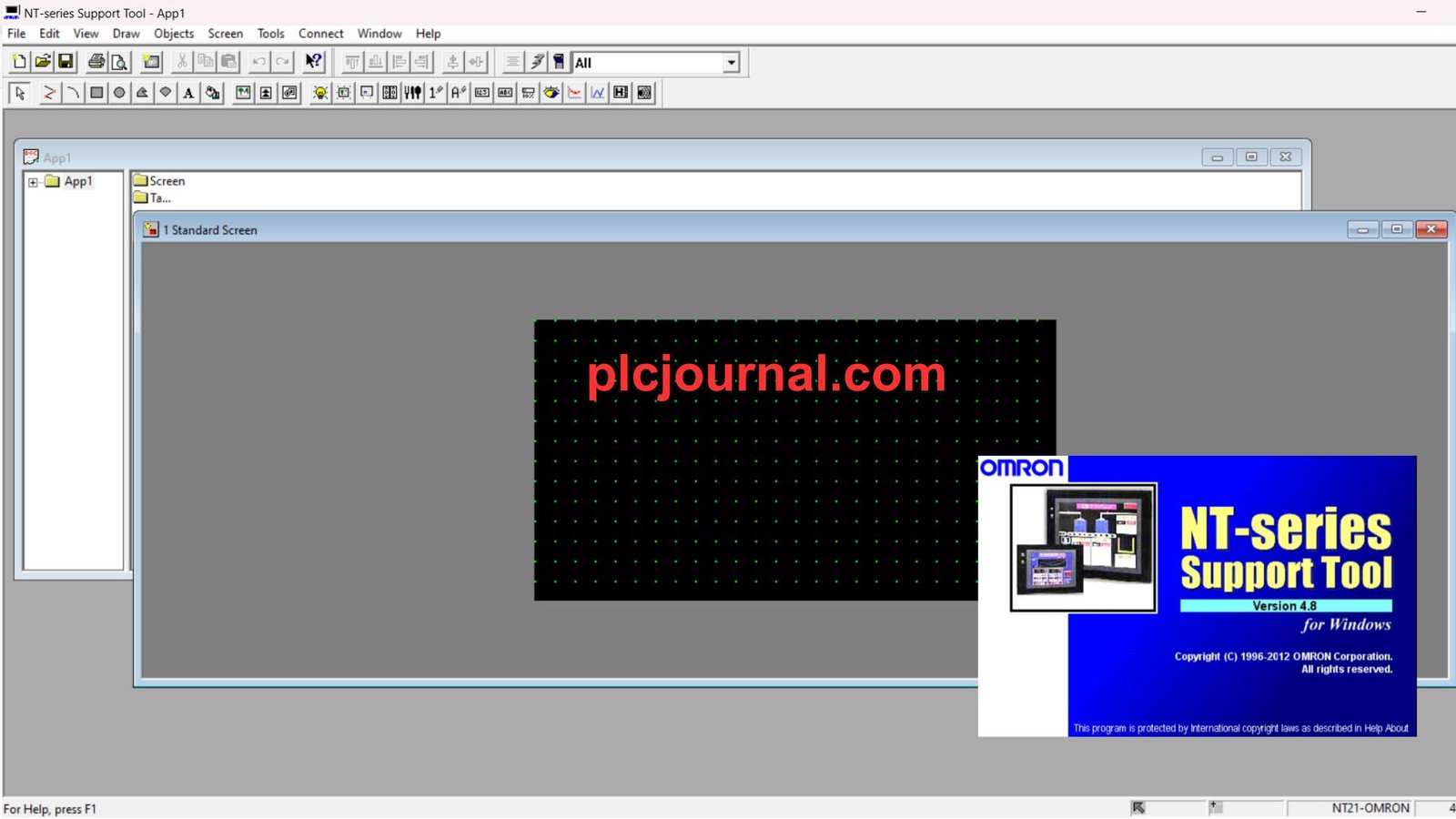

To open the software, simply double-click, and it will be ready for use.
Download Information:
Free Download NT-Series Support Tool HMI OMRON Software (Google Drive)
Extraction Password: plcjournal.com
If you found this guide helpful or encountered any issues with the download, please leave a comment below. We’ll update the download link if needed.
Thank you for reading!
