Step 7 Microwin v4.0 free download
The S7-200 series by Siemens is renowned for its reliability and efficiency in handling automation tasks. Whether you’re a seasoned PLC programmer or just starting, the Step 7 MicroWIN V4.0 software is essential for programming and configuring your Siemens S7-200 PLC.
In this guide, we’ll walk you through the process of downloading and installing the Step 7 MicroWIN V4.0 software.
If you’re looking for another powerful tool to program Siemens PLCs, check out STEP 7 MicroWIN SMART V2.5, designed specifically for the S7-200 SMART PLC series. This version offers enhanced features and a user-friendly interface to streamline your automation projects.
What is Siemens s7 200 PLC software for windows 7, Windows 10
Siemens S7-200 PLC software refers to the programming environment used to develop, configure, and maintain programs for the Siemens S7-200 series of programmable logic controllers (PLCs). The primary software for programming the S7-200 PLC is Step 7 Micro/WIN. This software provides a user-friendly interface and tools for creating ladder logic, function block diagrams, and other types of control programs that the PLC can execute.
Key Features of Step 7 Micro/WIN:
- Ladder Logic Programming: A graphical programming language that represents the control logic in a format similar to electrical relay logic.
- Simulation: Allows users to test and debug their PLC programs before deploying them to the actual hardware.
- Communication Setup: Tools to configure communication between the S7-200 PLC and other devices, such as HMIs, SCADA systems, and other PLCs.
- Diagnostics: Integrated tools for monitoring and troubleshooting the PLC operation, including error detection and logging.
The S7-200 series is known for its compact size and versatility, making it suitable for smaller automation tasks, such as in small manufacturing processes, building automation, and other industrial control applications.
Why Use Step 7 MicroWIN V4.0?
The Step 7 MicroWIN V4.0 software is specifically designed for the S7-200 series of PLCs. It offers a user-friendly interface, making it easier to program and monitor your automation projects. With features like drag-and-drop programming, real-time diagnostics, and comprehensive documentation tools, this software is a powerful tool for anyone working with S7-200 PLCs.
System Requirements – Siemens microwin s7-200 plc software For Windows 7, Windows 10.
Before proceeding with the download, verify that your system meets the following requirements:
For Windows 7:
- Operating System: Windows 7 (32-bit or 64-bit)
- Processor: Intel Pentium 4 or equivalent, 2.0 GHz or higher
- RAM: At least 1 GB required (2 GB or more recommended).
- Hard Disk: Minimum 2 GB of free space
- Display: 1024 x 768 resolution or higher
Other Requirements:
- Microsoft .NET Framework 3.5 or later
- USB port (for connecting programming cables)
- CD/DVD-ROM drive (for installation from a disc)
For Windows 10:
- Operating System: Windows 10 (32-bit or 64-bit)
- Processor: Intel Core i3 or equivalent, 2.0 GHz or higher
- RAM: At least 2 GB required (4 GB or more recommended).
- Hard Disk: Minimum 2 GB of free space
- Display: 1024 x 768 resolution or higher
Other Requirements:
- Microsoft .NET Framework 3.5 or later
- USB port (for connecting programming cables)
- CD/DVD-ROM drive (for installation from a disc)
How to install Step 7 microwin V4.0 “S7-200” for Windows 10 Siemens PLC Software step by step complete instructions with images are given below?
Step
1: Firstly Step 7 microwin V4.0 “S7-200” Siemens PLC Software by clicking on the download button given below to download the software. Then unzip or extract this S7-200 Siemens PLC Software. Click on the ok button with this password plcjournal.com while extracting.
2: Then [plcjournal.com]Step 7_V4.0_SP9 Double Click on open this folder.
3: Then double click on the setup.exe file.

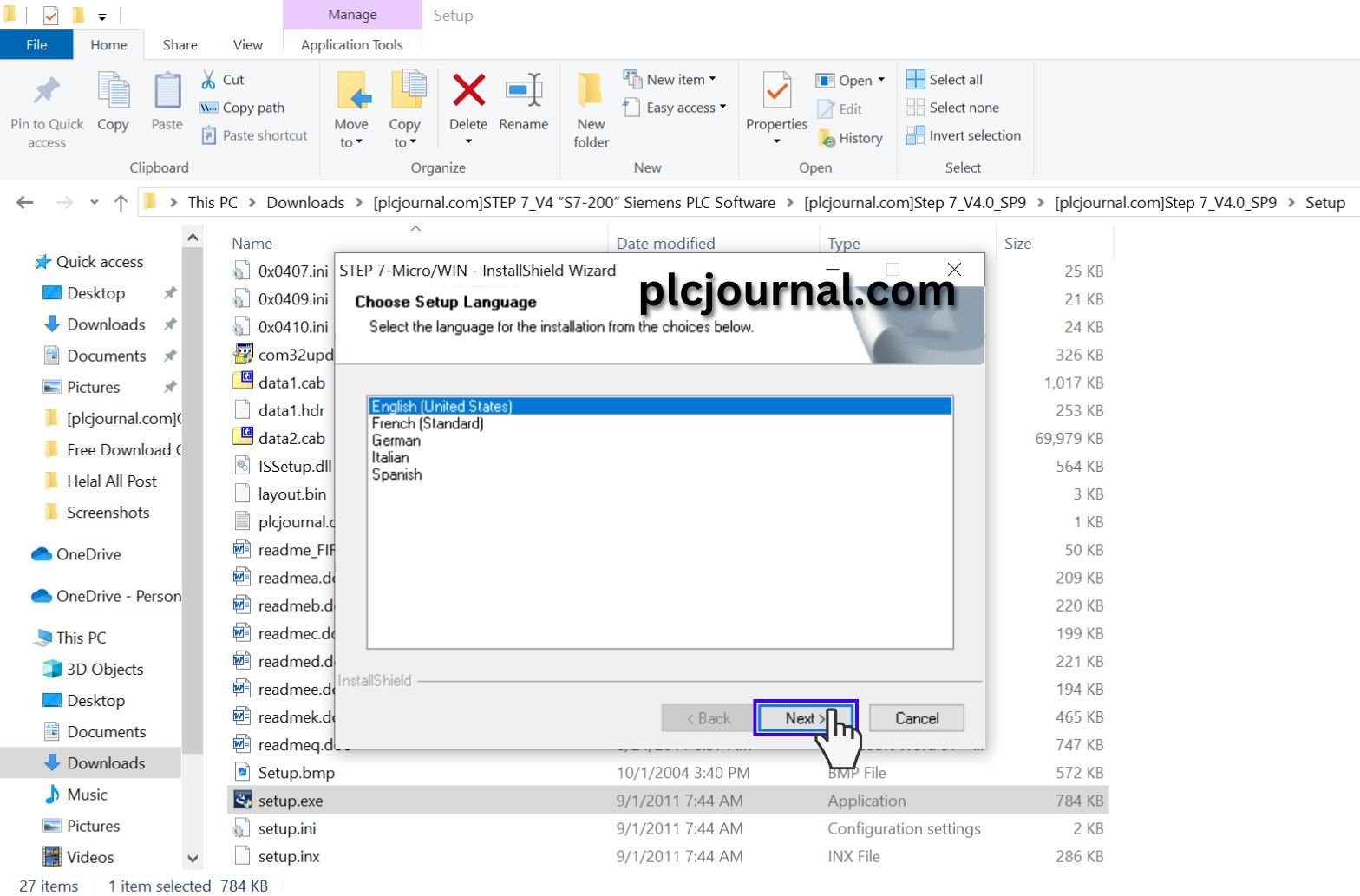

4: Choose Setup Language:
Select the language for the installation from the choices below. Then Click On the Next Button.
5: Welcome to the InstallShield Wizard for STEP 7-Micro/WIN V4.0.9.25. Then Click On the Next Button.

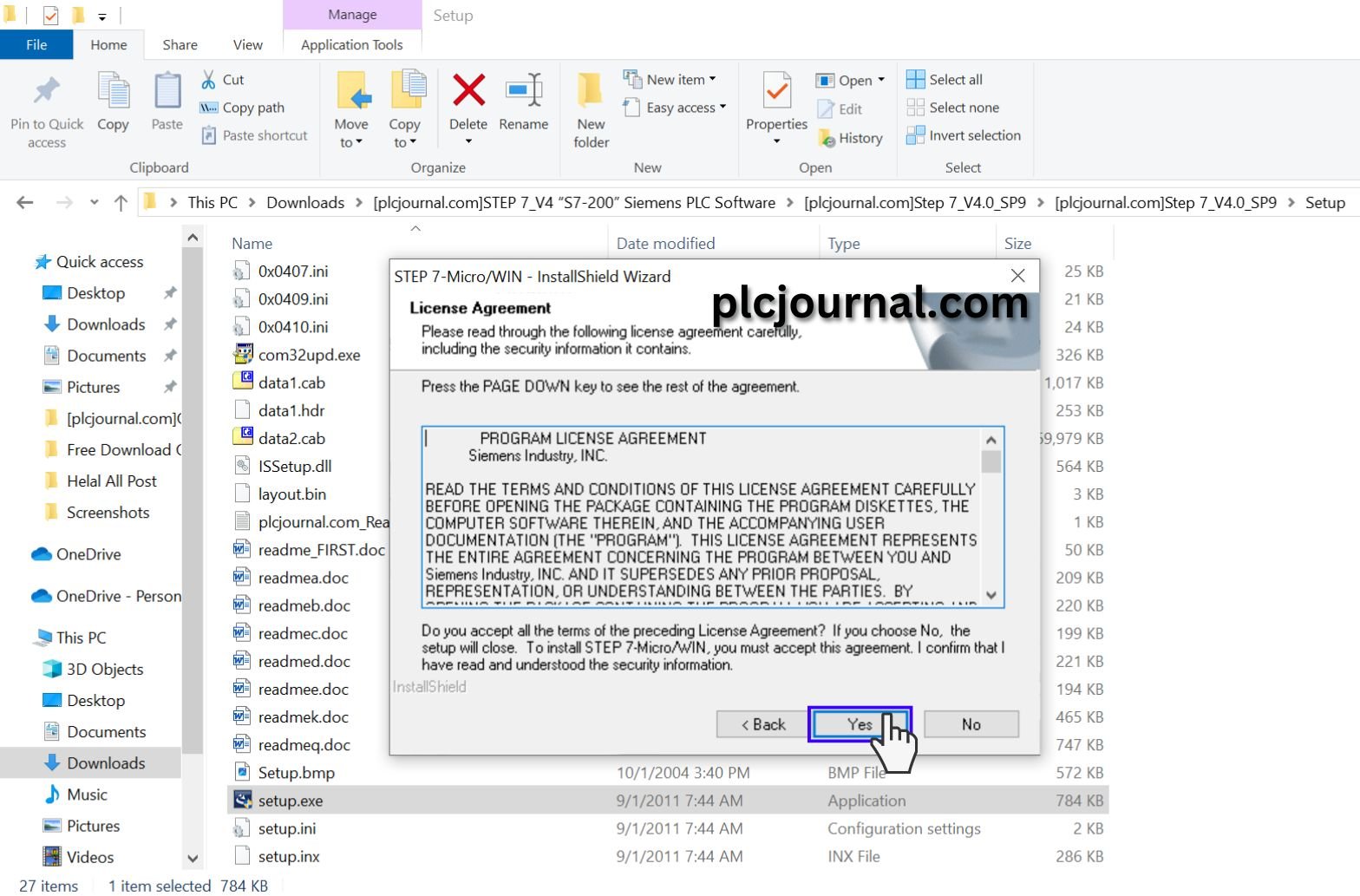

6: License Agreement:
Please read through the following license agreement carefully, including the security information it contains. Then Click On the Yes Button.

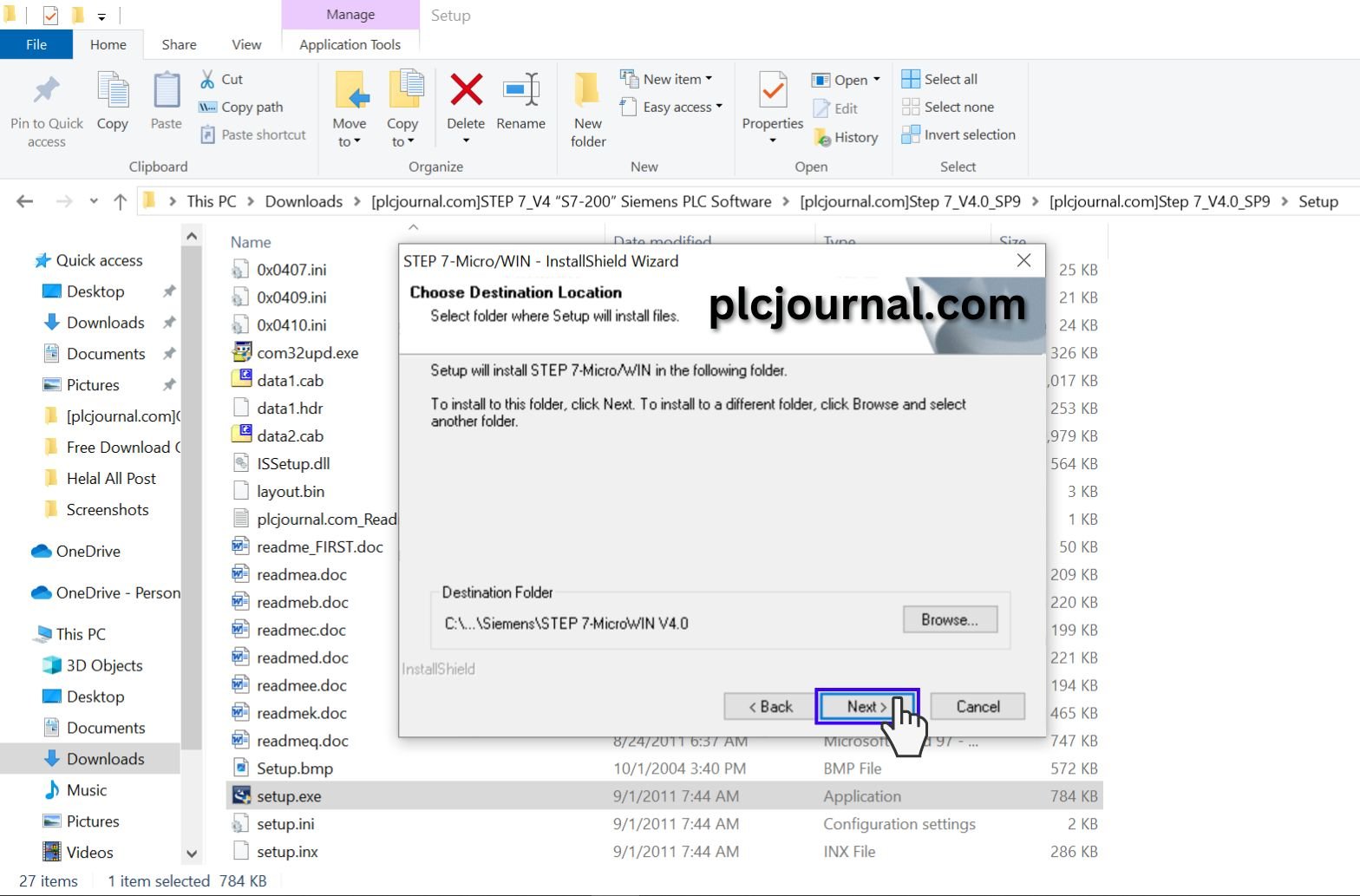

7: Choose Destination Location
Select folder where Setup will install files. Then Click On the Next Button.
8: Please wait while the InstallShield Wizard installs Step 7 microwin V4.0 “S7-200” Siemens PLC Software. This may take several minutes.
9: Then Click On the OK Button.
10: InstallShield Wizard Complete
The InstallShield Wizard has successfully installed STEP
7-Micro/WIN. Click Finish to exit the wizard.
Select Yes, I want to view the Read Me file now. Then Click On the Finish Button.
Now your Free Download Step 7 microwin V4.0 “S7-200” Siemens PLC Software Ready.

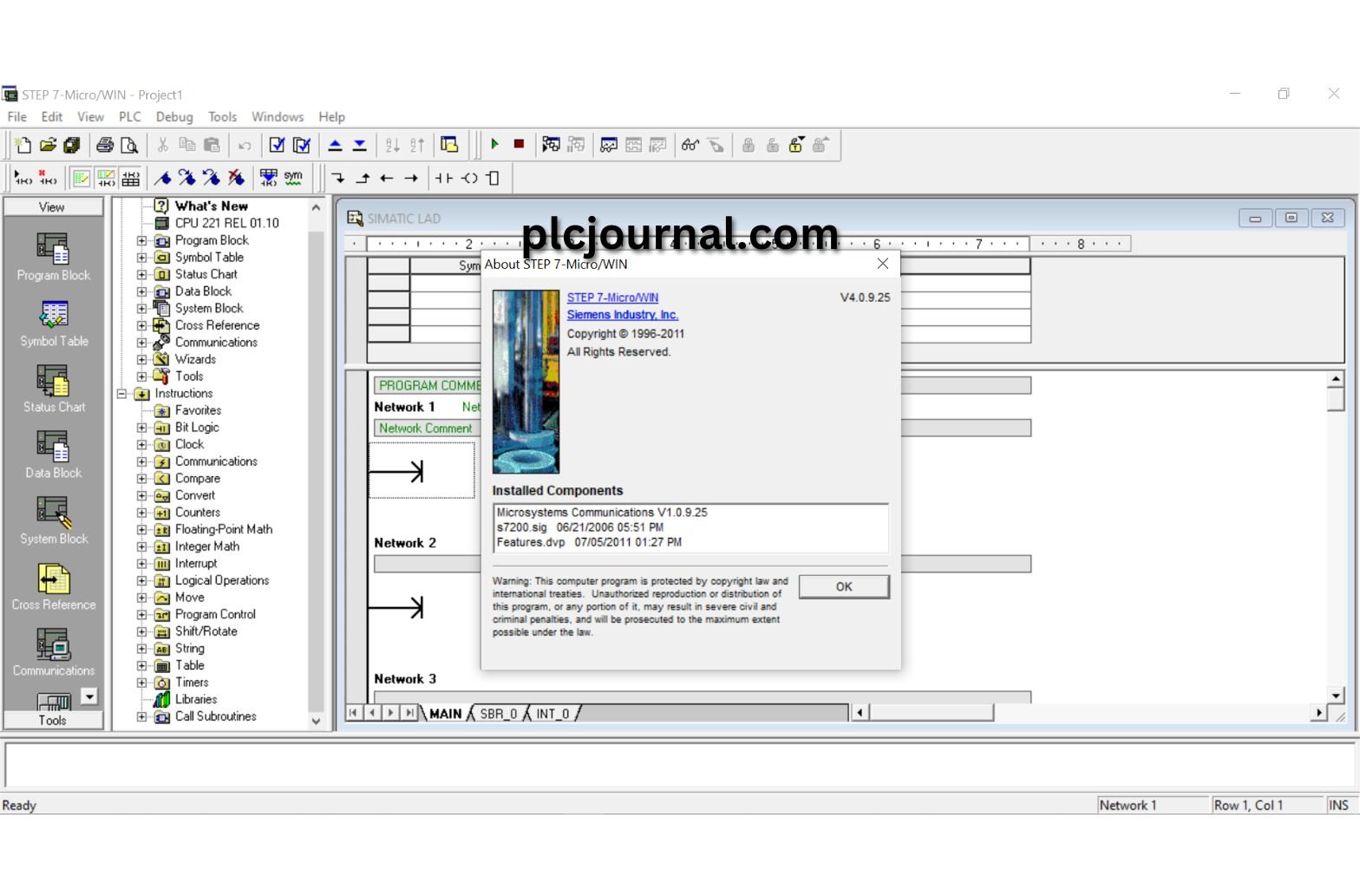

Image – 1
Image – 2
Conclusion
Downloading and installing Step 7 MicroWIN V4.0 for Siemens S7-200 PLCs is a straightforward process if you follow the steps outlined in this guide. With the software installed, you’ll be well-equipped to program and manage your automation projects efficiently.
Ensure that your system meets the required specifications, and don’t hesitate to reach out to Siemens support if you encounter any issues. Happy programming!
Step 7 microwin V4.0 “S7-200” Siemens PLC Software Free Download (Google Drive)
Password Extract: plcjournal.com
